Generate Code for Lane Marker Detector

This example shows how to test a monocular-camera-based lane marker detector and generate C++ code for real-time applications on a prebuilt 3D scene from the Unreal Engine® driving simulation environment. This example validates the lane marker detector algorithm using metrics and verifies the generated C++ code by using software-in-the-loop simulation.

Introduction

A lane marker detector is a fundamental perception component of an automated driving application. The detector analyzes images of roads captured using a monocular camera sensor and returns information about the curvature and marking type of each lane. You can design and simulate a lane marker detector algorithm using MATLAB® or Simulink® and assess its accuracy using a known ground truth. You can do C++ code generation to integrate the detector to an external software environment and deploy to a vehicle. Performing code generation and verification of the Simulink model ensures functional equivalence between simulation and real-time implementation.

For information about how to design a lane marker detector, see the Design Lane Marker Detector Using Unreal Engine Simulation Environment example. This example shows how to test the lane marker detector in a 3D simulation environment and generate C++ code for real-time implementation. In this example, you will:

  1. Explore and simulate the lane marker detector model.

  2. Assess accuracy of the lane marker detector algorithm by comparing with the ground truth.

  3. Generate C++ code from the algorithm model.

  4. Verify implementation with software-in-the-loop (SIL) simulation.

  5. Assess execution time and perform code coverage analysis. To perform code coverage analysis, you must use Simulink Coverage™.

This example tests the lane marker detector algorithm on a 3D simulation environment that uses Unreal Engine® from Epic Games®.

if ~ispc
    error(['This example is supported only on Microsoft.', char(174), ' Windows', char(174), '.']);
end

To explore the test bench model, load the lane detector project.

openProject("LaneDetector");

To ensure reproducibility of the simulation results, set the random seed.

rng(0);

Explore the Model

The lane marker detector system in this example has a lane marker detector test bench and reference model.

  • Test Bench Model: The test bench model simulates and tests the behavior of the lane marker detector algorithm in an open-loop.

  • Reference Model: The Lane Marker Detector block in the test bench model invokes the LaneMarkerDetector reference model. The reference model implements the lane marker detection algorithm and generates the C++ code of the algorithm. This reference model can be integrated with closed-loop systems.

Open the test bench model.

open_system('LaneMarkerDetectorTestBench');

Opening this model runs the helperSLLaneMarkerDetectorSetup script that initializes the road scenario using the drivingScenario object in the base workspace. It also configures the lane marker detector parameters, vehicle model parameters, and the Simulink bus signals required for defining the inputs and outputs for the LaneMarkerDetectorTestBench model. The test bench model contains these subsystems:

  1. Simulation 3D Scenario: Specifies the scene, vehicles, and camera sensor used for simulation.

  2. Lane Marker Detector: Implements the lane marker detector algorithm.

  3. Metrics Assessment: Assesses the lane marker detector algorithm behavior using metrics that include true positives, false positives, and false negatives.

  4. Visualization: Displays the frame captured by the camera sensor and overlays the lane detections during the simulation.

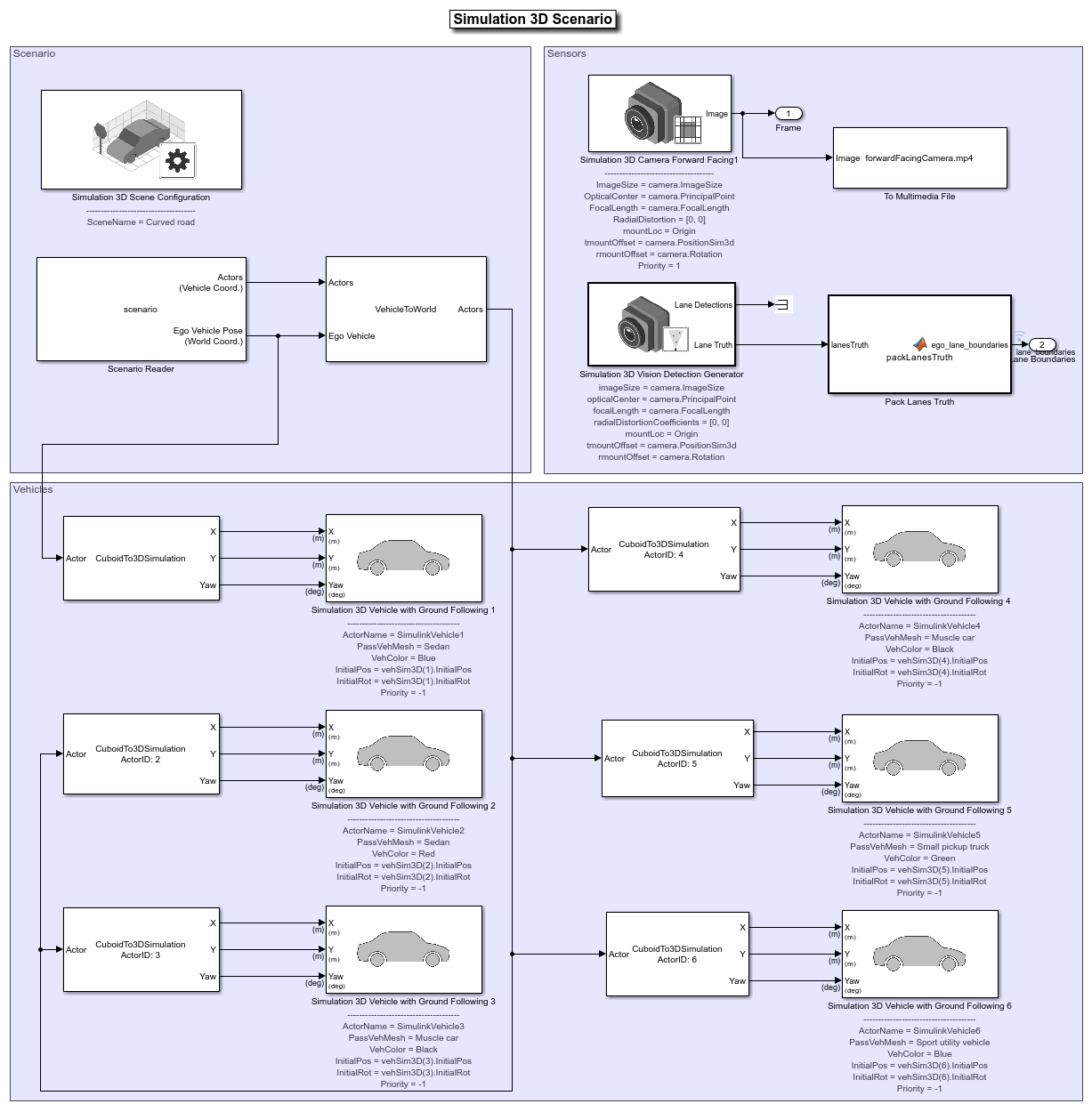

The Simulation 3D Scenario subsystem configures the road network, sets vehicle positions, and synthesizes sensors. This is similar to the Simulation 3D Scenario subsystem in the Highway Lane Following example. However, the Simulation 3D Scenario subsystem used in this example does not have a radar sensor. It uses the Simulation 3D Vision Detection Generator block to get the ground truth lane boundaries for metrics computation. Open the Simulation 3D Scenario subsystem.

open_system('LaneMarkerDetectorTestBench/Simulation 3D Scenario');

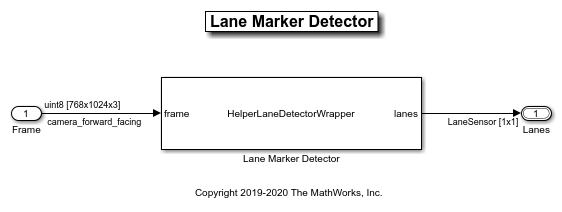

Lane Marker Detector is the reference model that detects the lane boundaries in the frames. Open the Lane Marker Detector reference model.

open_system('LaneMarkerDetector');

The Lane Marker Detector block uses a System object™, HelperLaneDetectorWrapper, that configures and implements the lane marker detection algorithm. The block takes the frames captured by a camera sensor as input and outputs the detected lane boundaries by using the LaneSensor Simulink bus.

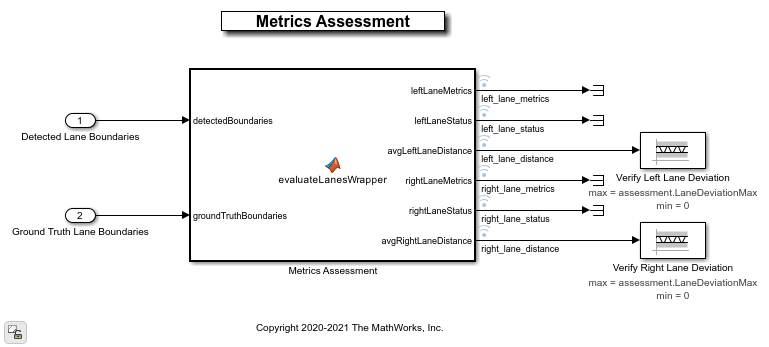

The Metrics Assessment subsystem evaluates the accuracy of detection results using the ground truth information. Open the Metrics Assessment subsystem.

open_system('LaneMarkerDetectorTestBench/Metrics Assessment');

The Metrics Assessment subsystem compares the detected lane boundaries and the ground truth lane boundaries by using the evaluateLaneBoundaries function. The function computes the lateral distance between the detected lane boundaries and the ground truth data. If the computed distance is within a particular threshold, then the detected boundary is considered as a valid match (true positive) and the corresponding lane status is set to 1. Otherwise, the function evaluates whether the boundary is a false negative or false positive and then sets the lane status to 0. The subsystem connects the outputs left_lane_status and right_lane_status to the lamps in the dashboard. The lamps go green when the lane status is 1 and go red when the lane status is 0. The outputs left_lane_metrics and right_lane_metrics are 1-by-3 arrays containing the lane matches (true positives), misses (false negatives) and false positives for left and right lanes respectively. The average left lane and right lane deviations computed from the detected lane boundaries are returned at the outputs left_lane_distance and right_lane_distance respectively. The model uses these deviation values to verify the accuracy of the algorithm during the simulation using Check Static Range (Simulink) blocks: Verify Left Lane Deviation and Verify Right Lane Deviation.

Simulate the Model

Configure the LaneMarkerDetectorTestBench model to simulate in the scenario_LD_02_Curve_SixVehicles scenario. This scenario contains six vehicles, including the ego vehicle, and defines their trajectories.

helperSLLaneMarkerDetectorSetup("scenario_LD_02_Curve_SixVehicles");

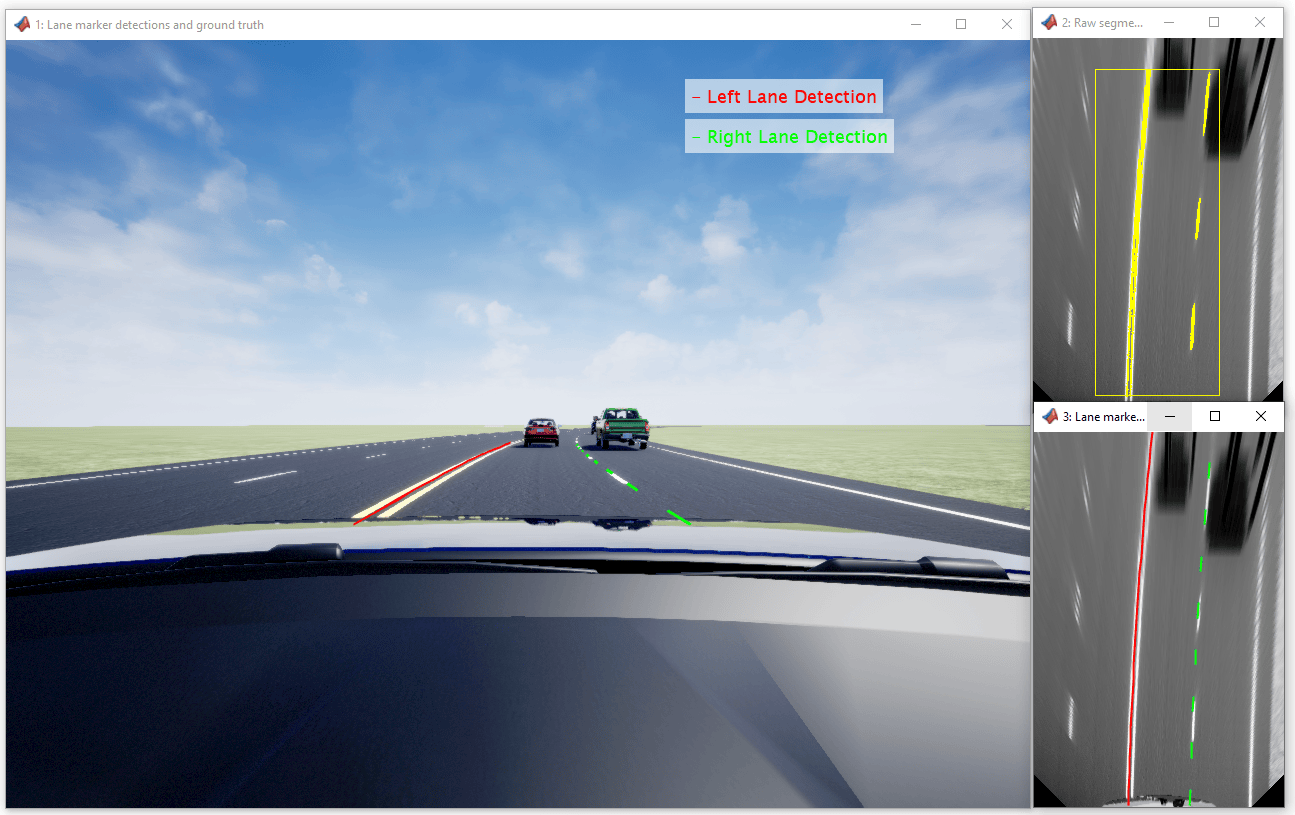

Simulate the test bench model. Use the visualization window and the status lamps on the dashboard to view the detection results while the simulation is running.

sim('LaneMarkerDetectorTestBench');

You can also visualize the ground truth lane boundaries by enabling the EnableTruthDisplay mask parameter in the Visualization block.

Assess Accuracy of Algorithm

Analyze the detection results and validate the overall performance of the algorithm.

During simulation, the model outputs three parameters that characterize a lane boundary: curvature, heading angle, and lateral offset. The model logs these parameters for the detected lane boundaries and ground truth to the base workspace variable logsout. You can plot the values in logsout by using the helperLaneBoundaryParams function.

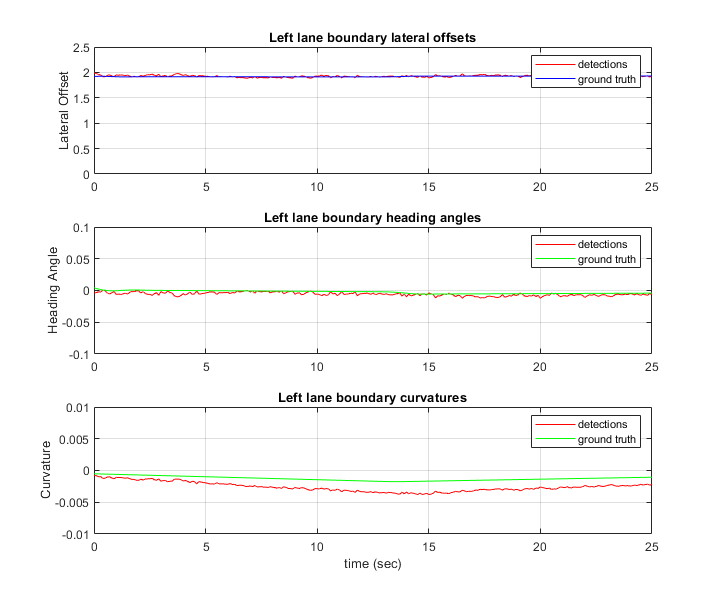

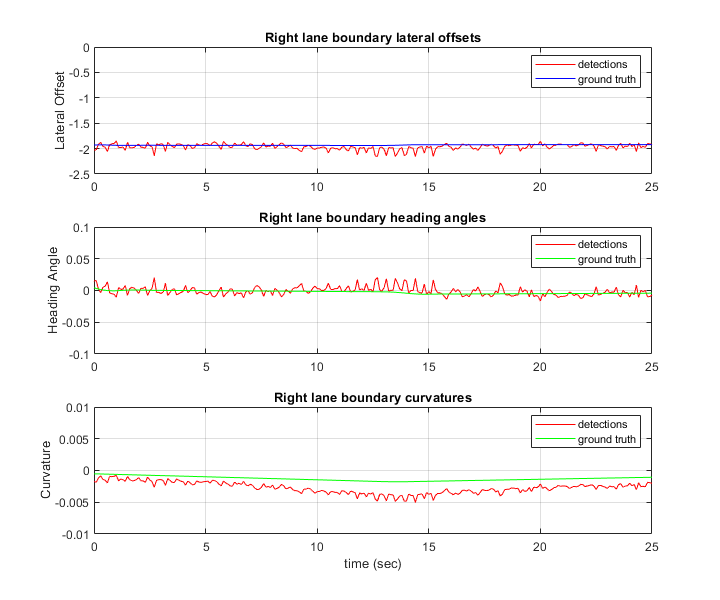

helperPlotLaneBoundaryParams(logsout);

From the plots, you can infer the deviations between the ground truth and the detected lane boundaries. A large deviation between the plots indicates that the detected lane boundary is significantly away from the ground truth.

You can also verify the performance of the lane marker detector algorithm by validating and plotting the metrics separately for the left lane and the right lane. The model also logs the detection results for the left and right lanes computed by the Metrics Assessment subsystem to the base workspace variable logsout. The Metrics Assessment subsystem outputs:

  1. Left lane metrics: Returned as an array that contains the number of matches (true positives), misses (false negatives), and false positives computed from detections for the left lane of the road.

  2. Left lane status: Returned as true or false. The value is true for matches in the left lane and false for misses and false positives in the left lane.

  3. Left lane distance: A scalar specifying the average value of distances between detected left lane boundary points and the ground truth for the left lane.

  4. Right lane metrics: Returned as an array that contains the number of matches (true positives), misses (false negatives), and false positives computed from detections for the right lane of the road.

  5. Right lane status: Returned as true or false. The value is true for matches in the right lane and false for misses and false positives in the right lane.

  6. Right lane distance: A scalar specifying the average value of distances between detected right lane boundary points and the ground truth for the right lane.

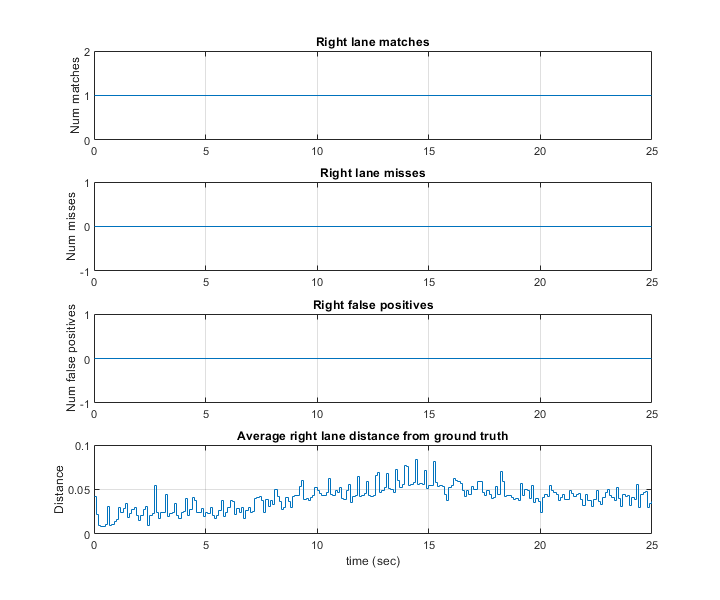

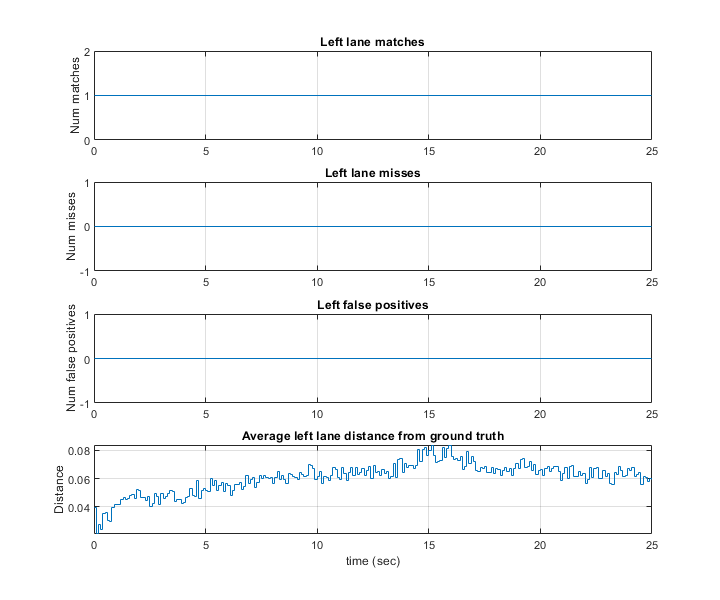

Plot the detection results for left and right lanes by using the helperPlotLaneMetrics script:

[numLaneMatches, numLaneMisses, numFalsePositives] = helperPlotLaneMetrics(logsout);

From the plots you can infer that all the detected left lane and the right lane boundaries match with the ground truth and that there are no false positives or false negatives.

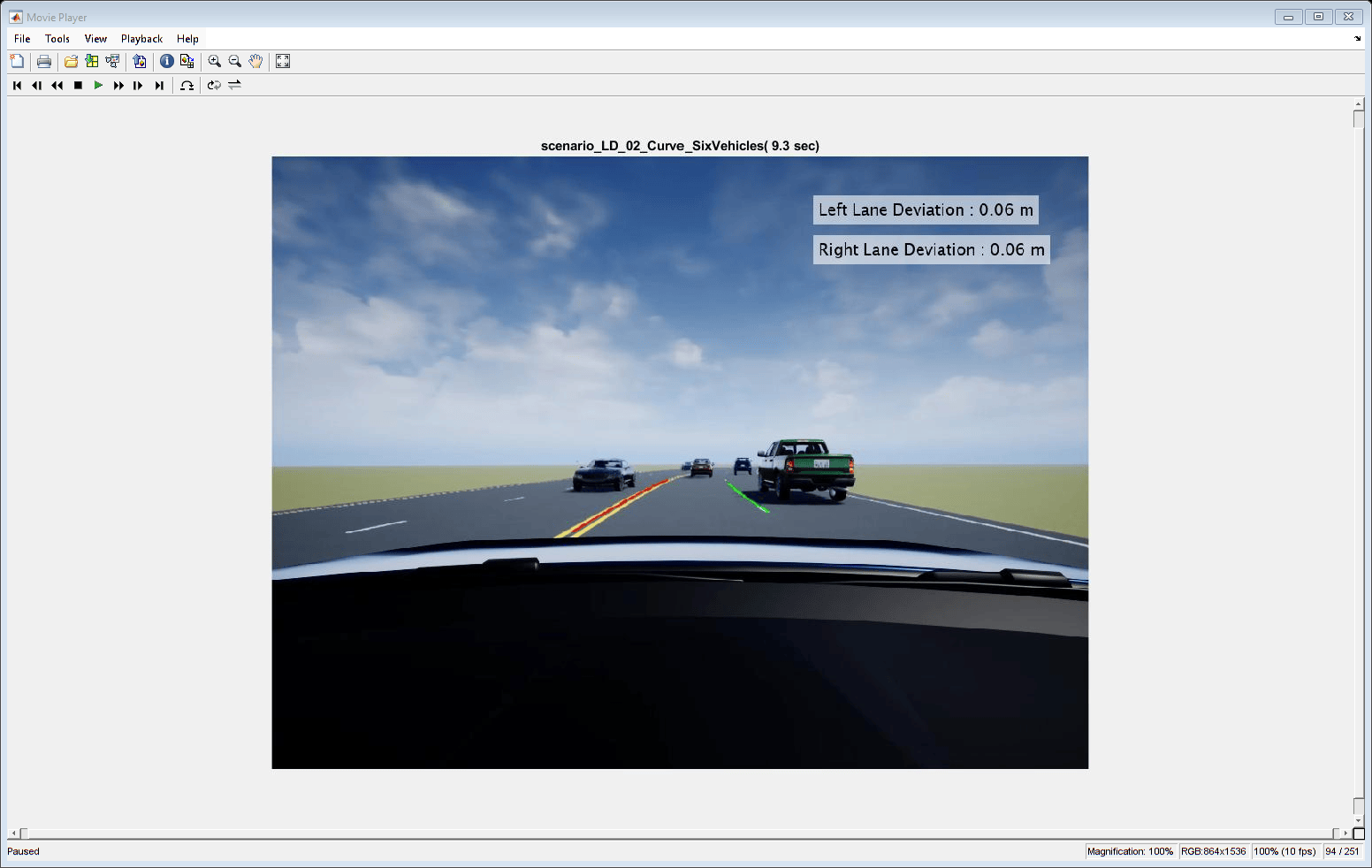

During simulation, the model records the output of the camera sensor to forwardFacingCamera.mp4. You can overlay the deviation results on the lanes detected in the frames and record to a video file by using helperPlotLaneDetectionResults function.

hVideoViewer = helperPlotLaneDetectionResults(...
logsout, "forwardFacingCamera.mp4" , scenario, camera,scenarioFcnName,...
"RecordVideo", true,"RecordVideoFileName", scenarioFcnName,...
"OpenRecordedVideoInVideoViewer", true,"VideoViewerJumpToTime", 9.3);

You can also compute overall precision and sensitivity of the lane marker detection algorithm as below:

Precision: Compute as the percentage of true positives in the total number of detected lane boundaries.

precision = (numLaneMatches./(numLaneMatches+numFalsePositives))*100;
disp(precision);
   100

Sensitivity: Compute as the percentage of true positives in total number of actual lane boundaries.

sensitivity = (numLaneMatches./(numLaneMatches+numLaneMisses))*100;
disp(sensitivity);
   100

The precision and the sensitivity values of a robust lane marker detector must be close to 100 for different test scenarios and test conditions.

Generate C++ Code

You can now generate C++ code for the algorithm, apply common optimizations, and generate a report to facilitate exploring the generated code.

Configure the LaneMarkerDetector model to generate C++ code for real-time implementation of the algorithm. Set the model parameters to enable code generation and display the configuration values.

Set and view model parameters to enable C++ code generation.

helperSetModelParametersForCodeGeneration('LaneMarkerDetector');
save_system('LaneMarkerDetector');

 Model  configuration parameters:

                 Parameter                      Value                                                              Description
    ___________________________________    _______________    ______________________________________________________________________________________________________________________

    {'SystemTargetFile'               }    {'ert.tlc'    }    {'Code Generation>System target file'                                                                                }
    {'TargetLang'                     }    {'C++'        }    {'Code Generation>Language'                                                                                          }
    {'SolverType'                     }    {'Fixed-step' }    {'Solver>Type'                                                                                                       }
    {'FixedStep'                      }    {'auto'       }    {'Solver>Fixed-step size (fundamental sample time)'                                                                  }
    {'EnableMultiTasking'             }    {'on'         }    {'Solver>Treat each discrete rate as a separate task'                                                                }
    {'ProdLongLongMode'               }    {'on'         }    {'Hardware Implementation>Support long long'                                                                         }
    {'BlockReduction'                 }    {'on'         }    {'Simulation Target>Block reduction'                                                                                 }
    {'MATLABDynamicMemAlloc'          }    {'on'         }    {'Simulation Target>Simulation Target>Dynamic memory allocation in MATLAB functions'                                 }
    {'OptimizeBlockIOStorage'         }    {'on'         }    {'Simulation Target>Signal storage reuse'                                                                            }
    {'InlineInvariantSignals'         }    {'on'         }    {'Simulation Target>Inline invariant signals'                                                                        }
    {'BuildConfiguration'             }    {'Faster Runs'}    {'Code Generation>Build configuration'                                                                               }
    {'RTWVerbose'                     }    {'off'        }    {'Code Generation>Verbose build'                                                                                     }
    {'CombineSignalStateStructs'      }    {'on'         }    {'Code Generation>Interface>Combine signal/state structures'                                                         }
    {'SupportVariableSizeSignals'     }    {'on'         }    {'Code Generation>Interface>Support variable-size signals'                                                           }
    {'CodeInterfacePackaging'         }    {'C++ class'  }    {'Code Generation>Interface>Code interface packaging'                                                                }
    {'GenerateExternalIOAccessMethods'}    {'Method'     }    {'Code Generation>Interface>Data Member Visibility>External I/O access'                                              }
    {'EfficientFloat2IntCast'         }    {'on'         }    {'Code Generation>Optimization>Remove code from floating-point to integer conversions that wraps out-of-range values'}
    {'ZeroExternalMemoryAtStartup'    }    {'off'        }    {'Code Generation>Optimization>Remove root level I/O zero initialization (inverse logic)'                            }
    {'CustomSymbolStrGlobalVar'       }    {'$N$M'       }    {'Code Generation>Symbols>Global variables'                                                                          }
    {'CustomSymbolStrType'            }    {'$N$M_T'     }    {'Code Generation>Symbols>Global types'                                                                              }
    {'CustomSymbolStrField'           }    {'$N$M'       }    {'Code Generation>Symbols>Field name of global types'                                                                }
    {'CustomSymbolStrFcn'             }    {'APV_$N$M$F' }    {'Code Generation>Symbols>Subsystem methods'                                                                         }
    {'CustomSymbolStrTmpVar'          }    {'$N$M'       }    {'Code Generation>Symbols>Local temporary variables'                                                                 }
    {'CustomSymbolStrMacro'           }    {'$N$M'       }    {'Code Generation>Symbols>Constant macros'                                                                           }

Generate code and review the code generation report from the reference model.

slbuild('LaneMarkerDetector');
### Starting build procedure for: LaneMarkerDetector
### Successful completion of build procedure for: LaneMarkerDetector

Build Summary

Top model targets built:

Model               Action                        Rebuild Reason
====================================================================================================
LaneMarkerDetector  Code generated and compiled.  Code generation information file does not exist.

1 of 1 models built (0 models already up to date)
Build duration: 0h 1m 45.613s

Use the code generation report to explore the generated code. To learn more about the code generation report, see Reports for Code Generation (Embedded Coder). Use the Code Interface Report link in the Code Generation Report to explore these generated methods:

  • LaneMarkerDetector_initialize: Call once on initialization.

  • LaneMarkerDetector_step: Call periodically every step to execute the lane marker detection algorithm.

  • LaneMarkerDetector_terminate: Call once on termination.

Additional get and set methods for signal interface are declared in LaneMarkerDetector.h and defined in LaneMarkerDetector.cpp.

Assess Functionality of Code

After generating C++ code for the lane marker detector, you can now assess the code functionality using software-in-the-loop (SIL) simulation. It provides early insight into the behavior of a deployed application. To learn more about SIL simulation, refer to SIL and PIL Simulations (Embedded Coder).

SIL simulation enables you to verify that the compiled generated code on the host is functionally equivalent to the normal mode.

Configure algorithm and test bench model parameters to support SIL simulation and log execution profiling information.

helperSetModelParametersForSIL('LaneMarkerDetector');
helperSetModelParametersForSIL('LaneMarkerDetectorTestBench');

LaneMarkerDetector configuration parameters:

               Parameter                       Value                                    Description
    ________________________________    ____________________    ____________________________________________________________

    {'SystemTargetFile'            }    {'ert.tlc'         }    {'Code Generation>System target file'                      }
    {'TargetLang'                  }    {'C++'             }    {'Code Generation>Language'                                }
    {'CodeExecutionProfiling'      }    {'on'              }    {'Code Generation>Verification>Measure task execution time'}
    {'CodeProfilingSaveOptions'    }    {'AllData'         }    {'Code Generation>Verification>Save options'               }
    {'CodeExecutionProfileVariable'}    {'executionProfile'}    {'Code Generation>Verification>Workspace variable'         }


LaneMarkerDetectorTestBench configuration parameters:

               Parameter                       Value                                    Description
    ________________________________    ____________________    ____________________________________________________________

    {'SystemTargetFile'            }    {'ert.tlc'         }    {'Code Generation>System target file'                      }
    {'TargetLang'                  }    {'C++'             }    {'Code Generation>Language'                                }
    {'CodeExecutionProfiling'      }    {'on'              }    {'Code Generation>Verification>Measure task execution time'}
    {'CodeProfilingSaveOptions'    }    {'AllData'         }    {'Code Generation>Verification>Save options'               }
    {'CodeExecutionProfileVariable'}    {'executionProfile'}    {'Code Generation>Verification>Workspace variable'         }

Configure the test bench model to simulate Lane Marker Detector in software-in-the-loop (SIL) mode.

set_param('LaneMarkerDetectorTestBench/Lane Marker Detector','SimulationMode','Software-in-the-loop (SIL)');
sim('LaneMarkerDetectorTestBench');
### Starting build procedure for: LaneMarkerDetector
### Generated code for 'LaneMarkerDetector' is up to date because no structural, parameter or code replacement library changes were found.
### Successful completion of build procedure for: LaneMarkerDetector

Build Summary

0 of 1 models built (1 models already up to date)
Build duration: 0h 0m 3.1708s
### Preparing to start SIL simulation ...
Building with 'Microsoft Visual C++ 2019 (C)'.
MEX completed successfully.
### Starting SIL simulation for component: LaneMarkerDetector
### Application stopped
### Stopping SIL simulation for component: LaneMarkerDetector

You can compare the outputs from normal simulation mode and software-in-the-loop (SIL) simulation mode. You can verify if the differences between these runs are in the tolerance limits by using the following code. Plot the differences of the detected lane boundary parameters between the normal simulation mode and SIL simulation mode.

runIDs = Simulink.sdi.getAllRunIDs;
normalSimRunID = runIDs(end - 1);
SilSimRunID = runIDs(end);
diffResult = Simulink.sdi.compareRuns(normalSimRunID ,SilSimRunID);

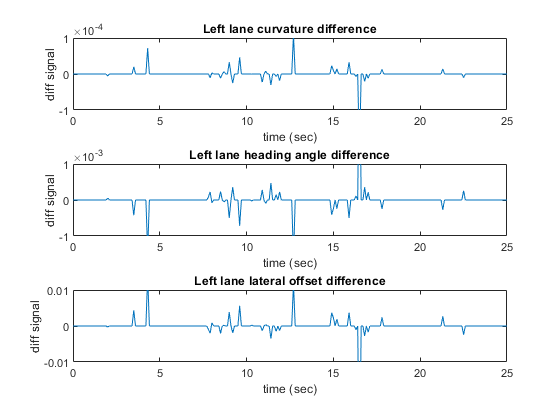

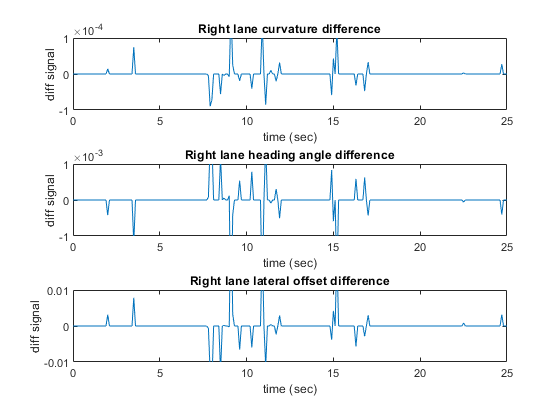

Plot the differences between lane boundary parameters computed from normal mode and SIL mode.

helperPlotDiffSignals(diffResult);

Notice that the differences between the lane boundary parameter values between normal mode of simulation and SIL mode of simulation are approximately zero. However, there are slight differences because of different rounding off techniques used by different compilers.

Assess Execution Time and Coverage of Code

During the software-in-the-loop (SIL) simulation, log the execution time metrics for the generated code on the host computer to the variable executionProfile in the MATLAB base workspace. These times can be an early indicator for performance of the generated code. For accurate execution time measurements, profile the generated code when it is integrated into the external environment or when using with processor-in-the-loop (PIL) simulation. To learn more about SIL profiling, refer to Create Execution-Time Profile for Generated Code (Embedded Coder).

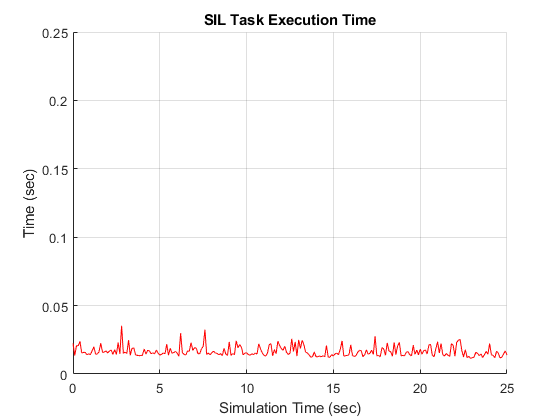

Plot the execution time taken for LaneMarkerDetector_step function using helperPlotExecutionProfile function.

helperPlotExecutionProfile(executionProfile);

Notice that you can deduce the average time taken per frame for the lane marker detector from this plot. For more information on generating execution profiles and analyzing them during SIL simulation, refer to Execution Time Profiling for SIL and PIL (Embedded Coder).

If you have a Simulink Coverage™ license, you can also perform the code coverage analysis for the generated code to measure the testing completeness. You can use missing coverage data to find gaps in testing, missing requirements, or unintended functionality. Configure the coverage settings and simulate the test bench model to generate coverage analysis report. Find the generated report CoverageResults/LaneMarkerDetector.html in the working directory.

if(license('test','Simulink_Coverage'))
    helperCoverageSettings('LaneMarkerDetectorTestBench');
    cvDataObj = cvsim('LaneMarkerDetectorTestBench');
    cvhtml('CoverageResults/LaneMarkerDetector',cvDataObj);
end
### Starting build procedure for: LaneMarkerDetector
### Generated code for 'LaneMarkerDetector' is up to date because no structural, parameter or code replacement library changes were found.
### Successful completion of build procedure for: LaneMarkerDetector

Build Summary

Top model targets built:

Model               Action          Rebuild Reason
=============================================================================
LaneMarkerDetector  Code compiled.  Compilation artifacts were out of date.

1 of 1 models built (0 models already up to date)
Build duration: 0h 0m 46.056s
### Preparing to start SIL simulation ...
Building with 'Microsoft Visual C++ 2019 (C)'.
MEX completed successfully.
### Starting SIL simulation for component: LaneMarkerDetector
### Stopping SIL simulation for component: LaneMarkerDetector
### Completed code coverage analysis

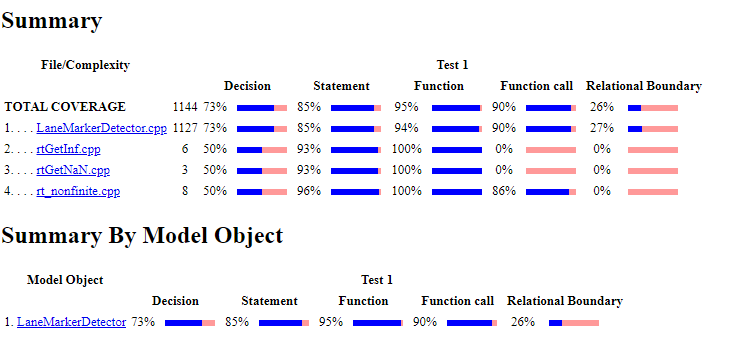

You can find the decision coverage, statements coverage and function coverage results while simulating the generated code for this test scenario, scenario_LD_02_Curve_SixVehicles. You can test this model with different scenarios to get full coverage of the generated code. For more information on how to analyze coverage results during software-in-the-loop simulation, refer Code Coverage for Models in Software-in-the-Loop (SIL) Mode and Processor-in-the-Loop (PIL) Mode (Embedded Coder)

Explore Additional Scenarios

This example provides additional scenarios that you can use with the LaneMarkerDetectorTestBench model:

  scenario_LF_01_Straight_RightLane
  scenario_LF_02_Straight_LeftLane
  scenario_LF_03_Curve_LeftLane
  scenario_LF_04_Curve_RightLane
  scenario_LD_01_Curve_ThreeVehicles
  scenario_LD_02_Curve_SixVehicles [Default]
  • Use scenarios with the prefix scenario_LF in the filename to test the lane marker detection algorithm without obstruction by other vehicles. The vehicles still exist in the scenario but are positioned such that they are not within the visible range of the ego vehicle.

  • Use scenarios with the prefix scenario_LD in the filename to test the lane marker detection algorithm while other vehicles on the road are within the visible range of the ego vehicle.

While designing and testing the lane marker detection algorithm in open loop, it is helpful to begin with a scenario that has only the ego vehicle. To configure the model and workspace for such a scenario, use the following code.

helperSLLaneMarkerDetectorSetup("scenario_LF_04_Curve_RightLane");

You can use this model to integrate RoadRunner™ scenes into driving scenarios for simulation and testing.

See Also

Functions

Blocks

Related Topics
