deleteDisplayChannel

Delete Logic Analyzer channel

collapse all in page

Syntax

deleteDisplayChannel(scope,tag)

Description

deleteDisplayChannel(scope,tag) deletes the display channel, either a wave or a divider, specified by the input tag.

example

Examples

collapse all

Open Live Script

Use functions to construct and manipulate a dsp.LogicAnalyzer System object.

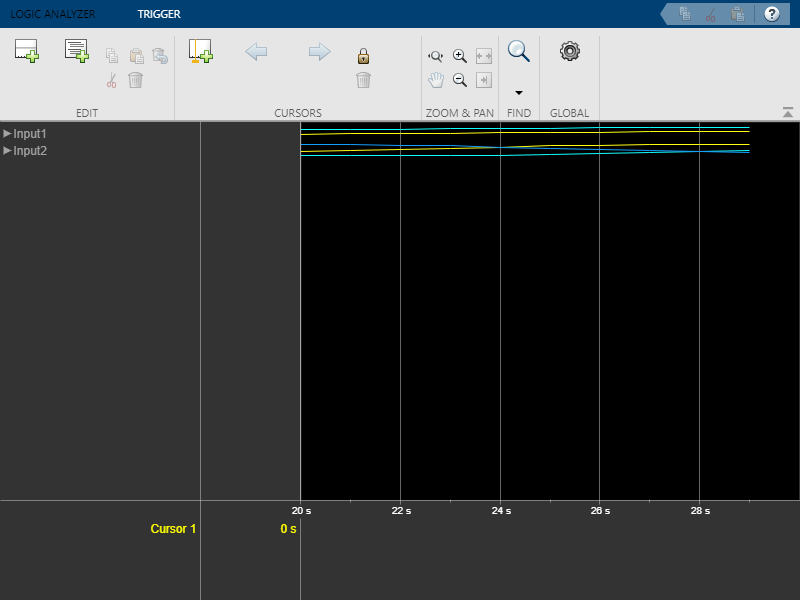

Display Waves on Logic Analyzer scope.

scope = dsp.LogicAnalyzer('NumInputPorts',2);

stop = 30;
for count = 1:stop
    sinValVec = sin(count/stop*2*pi);
    cosValVec = cos(count/stop*2*pi);
    cosValVecOffset = cos((count+10)/stop*2*pi);

    scope([count (count-(stop/2))],[sinValVec cosValVec cosValVecOffset])
end

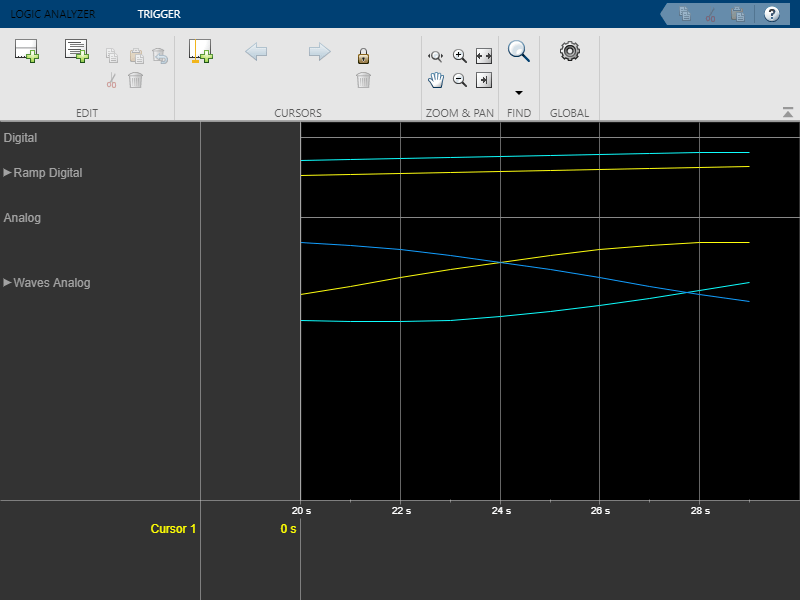

Reorganize Display

hide(scope)
digitalDividerTag = addDivider(scope,'Name','Digital','Height',20);
analogDividerTag = addDivider(scope,'Name','Analog','Height',40);

tags = getDisplayChannelTags(scope);

modifyDisplayChannel(scope,tags{1},'InputChannel',1,...
    'Name','Ramp Digital','Height',40);
modifyDisplayChannel(scope,tags{2},'InputChannel',2,...
    'Name','Waves Analog','Format','Analog','Height',80);

moveDisplayChannel(scope,digitalDividerTag,'DisplayChannel',1)
moveDisplayChannel(scope,tags{2},'DisplayChannel',length(tags))

show(scope)

Duplicate Wave and Check Information

hide(scope)
addWave(scope,'InputChannel',2,'Name','Waves Digital','Format','Digital',...
    'Height',30,'DisplayChannel',3);
show(scope)

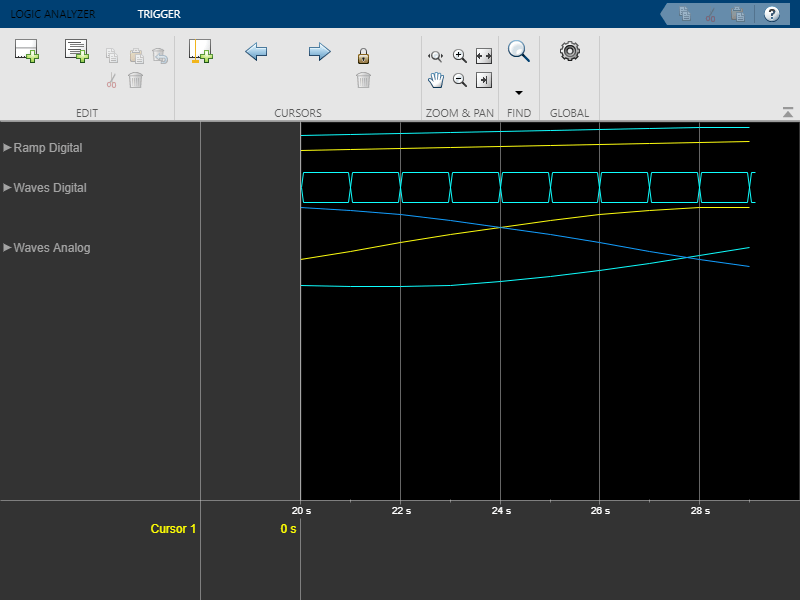

Remove Dividers

hide(scope)
deleteDisplayChannel(scope,digitalDividerTag)
deleteDisplayChannel(scope,analogDividerTag)
show(scope)

Clear variables

clear analogDividerTag cosValVec cosValVecOffset count digitalDividerTag duplicateWave scope sinValVec stop tags

Input Arguments

collapse all

The Logic Analyzer object from which you want to delete a display channel, specified as a handle to the dsp.LogicAnalyzer object.

The tag identifying which display channel to delete, specified as the randomly assigned character vector.

Example: 'deleteDisplayChannel(scope,tag)' deletes a display channel from Logic Analyzer.

Data Types: char | string

Version History

Introduced in R2013a
