Highpass Filter

Design FIR or IIR highpass filter

• Library:

• DSP System Toolbox / Filtering / Filter Designs

•

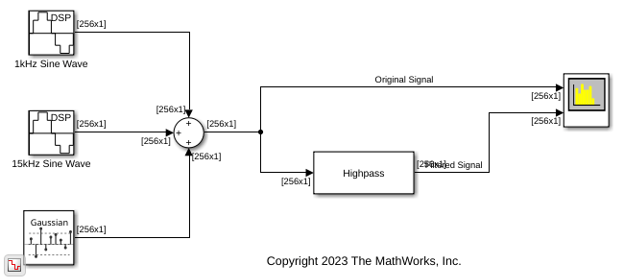

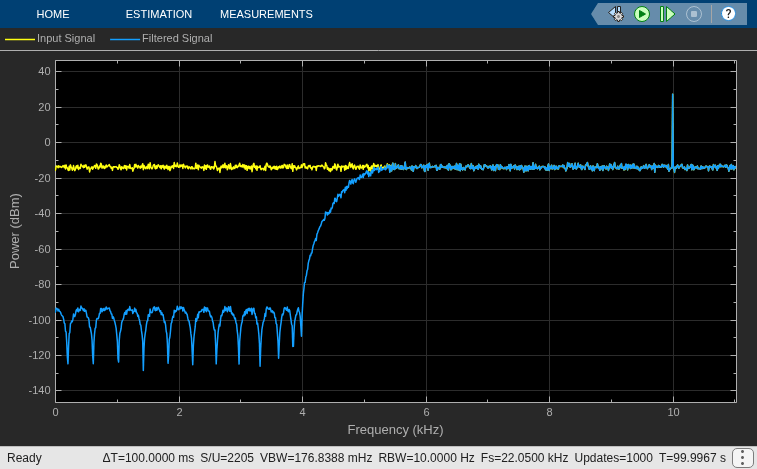

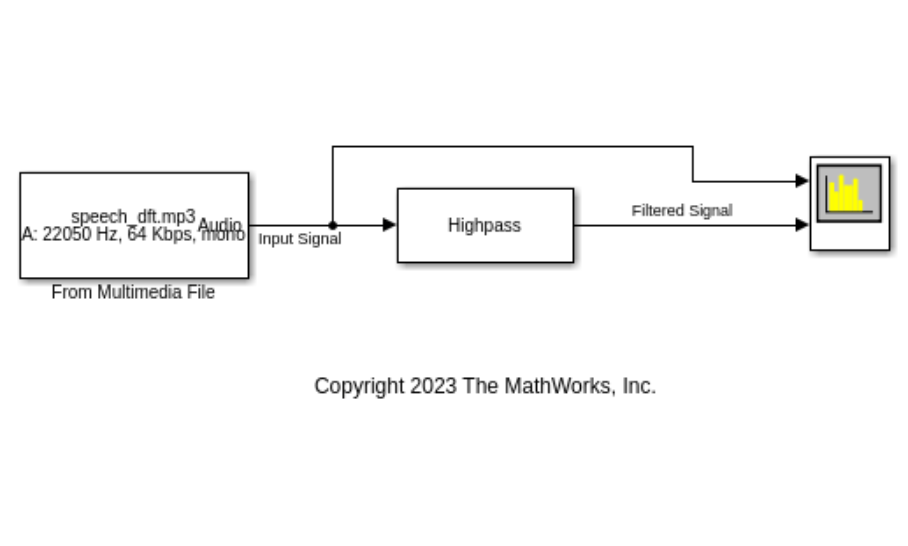

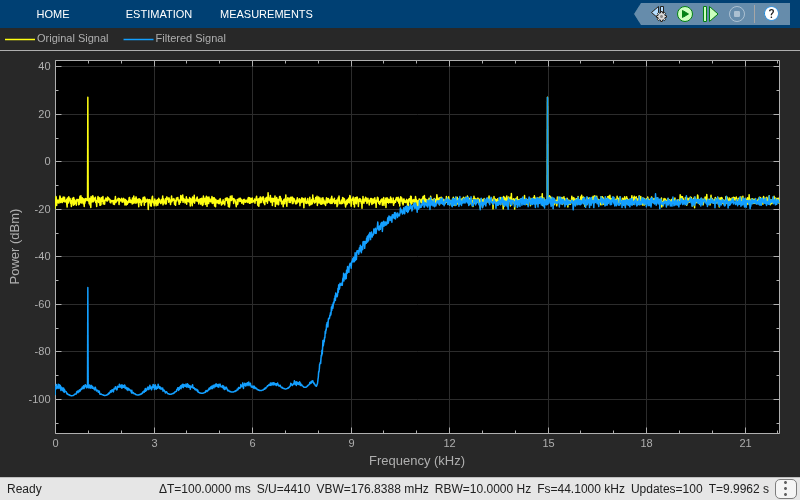

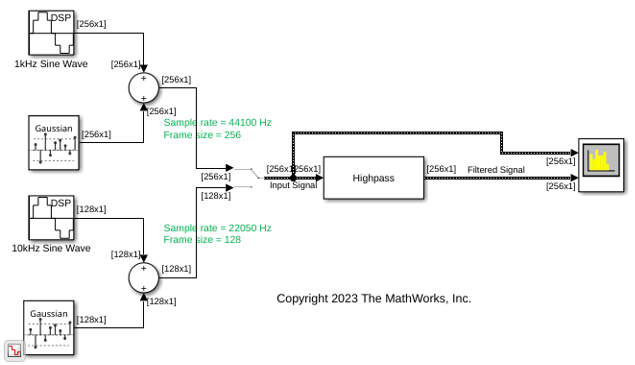

Description

The Highpass Filter block independently filters each channel of the input signal over time using the given design specifications. You can control whether the block implements an IIR or FIR highpass filter using the Filter type parameter.

This block supports ARM^® Cortex^® code generation. Under specific conditions, this block also supports SIMD code generation. For details, see Code Generation.

Ports

Input

Port_1 — Input signal to filter

column vector | matrix

Input signal, specified as a real- or complex-valued column vector or matrix. If the input signal is a matrix, each column of the matrix is treated as an independent channel. The number of rows in the input signal denotes the channel length.

Data Types: single | double | fixed point
Complex Number Support: Yes

Output

Port_1 — Filtered signal

vector | matrix

Filtered signal, specified as a vector or matrix. The output has the same size and complexity characteristics as the input. If the output has a fixed-point data type, it is always signed.

Data Types: single | double | fixed point
Complex Number Support: Yes

Parameters

Main

Filter type — FIR or IIR filter

FIR (default) | IIR

Specify whether the block implements an FIR highpass filter or an IIR highpass filter.

Design minimum order filter — Design filter with minimum order

on (default) | off

When you select this check box, the block designs a filter with minimum order. When you clear this check box, you can specify the Filter order as a positive integer.

Filter order — Order of highpass filter

50 (default) | positive integer

Filter order of highpass filter, specified as a positive scalar integer.

Dependencies

To enable this parameter, clear the Design minimum order filter check box.

Stopband edge frequency (Hz) — Stopband edge frequency

8e3 (default) | real positive scalar

Stopband edge frequency of the highpass filter, specified as a real positive scalar in Hz. The value of the stopband edge frequency in Hz must be less than the passband frequency.

Dependencies

To enable this parameter, select the Design minimum order filter check box.

Passband edge frequency (Hz) — Passband edge frequency

12e3 (default) | real positive scalar

Passband edge frequency of the highpass filter, specified as a real positive scalar in Hz. The passband edge frequency must be less than half the value of the Input sample rate (Hz).

Minimum stopband attenuation (dB) — Minimum stopband attenuation

80 (default) | real positive scalar

Minimum attenuation in the stopband, specified as a real positive scalar in dB.

Maximum passband ripple (dB) — Maximum passband ripple

0.1 (default) | real positive scalar

Maximum ripple of the filter response in the passband, specified as a real positive scalar in dB.

Inherit sample rate from input — Inherit sample rate from input

off (default) | on

When you select this check box, the block inherits its sample rate from the input signal. When you clear this check box, you specify the sample rate using the Input sample rate (Hz) parameter.

Input sample rate (Hz) — Input sample rate

44100 (default) | scalar

Input sample rate, specified as a scalar in Hz.

Simulate using — Type of simulation to run

Interpreted execution (default) | Code generation

Type of simulation to run:

• Interpreted execution (default)

  Simulate model using the MATLAB^® interpreter. This option shortens startup time but has slower simulation speed than Code generation.

• Code generation

  Simulate model using generated C code. The first time you run a simulation, Simulink^® generates C code for the block. The C code is reused for subsequent simulations as long as the model does not change. This option requires additional startup time but provides faster simulation speed than Interpreted execution.

View Filter Response — Open Filter Visualization Tool

button

Opens the Filter Visualization Tool (fvtool) and displays the magnitude/phase response of the highpass filter. The response is based on the block dialog box parameters. Changes made to these parameters update FVTool.

To update the magnitude response while FVTool is running, modify the dialog box parameters and click Apply.

Data Types

Rounding mode — Rounding method

Floor (default) | Ceiling | Convergent | Nearest | Round | Simplest | Zero

Rounding method for the output fixed-point operations.

Coefficients — Coefficient data type

fixdt(1,16) (default) | fixdt(1,16,0) | <data type expression>

Fixed-point data type of the coefficients, specified as one of the following:

• fixdt(1,16) — Signed fixed-point data type of word length 16, with binary point scaling. The block determines the fraction length automatically from the coefficient values in such a way that the coefficients occupy maximum representable range without overflowing.

• fixdt(1,16,0) — Signed fixed-point data type of word length 16 and fraction length 0. You can change the fraction length to any other integer value.

• <data type expression> — Specify the data type using an expression that evaluates to a data type object, for example, numeric type (fixdt([ ],16, 15)). Specify the sign mode of this data type as [ ] or true.

• Refresh Data Type — Refresh to the default data type.

Click the Show data type assistant button to display the data type assistant, which helps you set the data type. For more information, see Specify Data Types Using Data Type Assistant (Simulink).

Block Characteristics

Data Types	double | fixed point | integer | single
Direct Feedthrough	no
Multidimensional Signals	no
Variable-Size Signals	yes
Zero-Crossing Detection	no

Algorithms

This block brings the capabilities of the dsp.HighpassFilter System object™ to the Simulink environment.

For information on the algorithms used by this block, see the Algorithms section of dsp.HighpassFilter.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

The Highpass Filter block supports ARM Cortex code generation. To learn more about ARM Cortex code generation, see Code Generation for ARM Cortex-M and ARM Cortex-A Processors.

The Highpass Filter block also supports SIMD code generation using Intel AVX2 technology under these conditions:

• Filter type is set to FIR.

• Input signal has a data type of single or double.

The SIMD technology significantly improves the performance of the generated code.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
