Accelerate Code for Variable-Size Data

Variable-size data is data whose size might change at run time. MATLAB^® supports bounded and unbounded variable-size data for code generation. Bounded variable-size data has fixed upper bounds. This data can be allocated statically on the stack or dynamically on the heap. Unbounded variable-size data does not have fixed upper bounds. This data must be allocated on the heap. By default, for MEX and C/C++ code generation, support for variable-size data is enabled and dynamic memory allocation is enabled for variable-size arrays whose size exceeds a configurable threshold.

Disable Support for Variable-Size Data

By default, for MEX and C/C++ code acceleration, support for variable-size data is enabled. You modify variable sizing settings at the command line.

1. Create a configuration object for code generation.

   cfg = coder.mexconfig;

2. Set the EnableVariableSizing option:

   cfg.EnableVariableSizing = false;

3. Using the -config option, pass the configuration object to fiaccel :

   fiaccel -config cfg foo


Control Dynamic Memory Allocation

By default, dynamic memory allocation is enabled for variable-size arrays whose size exceeds a configurable threshold. If you disable support for variable-size data, you also disable dynamic memory allocation. You can modify dynamic memory allocation settings at the command line.

1. Create a configuration object for code acceleration. For example, for a MEX function:

   mexcfg = coder.mexconfig;

2. Set the EnableDynamicMemoryAllocation option:

   Setting	Action
   mexcfg.EnableDynamicMemoryAllocation=false;	Dynamic memory allocation is disabled. All variable-size data is allocated statically on the stack.
   mexcfg.EnableDynamicMemoryAllocation=true;	Dynamic memory allocation is enabled for all variable-size arrays whose size (in bytes) is greater than or equal to the value specified using the DynamicMemoryAllocationThreshold parameter. Variable-size arrays whose size is less than this threshold are allocated on the stack.

3. Optionally, if you set EnableDynamicMemoryAllocation to true, configure DynamicMemoryAllocationThreshold to fine tune memory allocation.

4. Using the -config option, pass the configuration object to fiaccel:

   fiaccel -config mexcfg foo


Accelerate Code for MATLAB Functions with Variable-Size Data

Here is a basic workflow that generates MEX code.

1. In the MATLAB Editor, add the compilation directive %#codegen at the top of your function.

   This directive:

   • Indicates that you intend to generate code for the MATLAB algorithm

   • Turns on checking in the MATLAB Code Analyzer to detect potential errors during code generation

2. Address issues detected by the Code Analyzer.

   In some cases, the MATLAB Code Analyzer warns you when your code assigns data a fixed size but later grows the data, such as by assignment or concatenation in a loop. If that data is supposed to vary in size at run time, you can ignore these warnings.

3. Generate a MEX function using fiaccel. Use the following command-line options:

   • -args {coder.typeof...} if you have variable-size inputs

   • -report to generate a code generation report

   For example:

   fiaccel -report foo -args {coder.typeof(0,[2 4],1)}


   This command uses coder.typeof to specify one variable-size input for function foo. The first argument, 0, indicates the input data type (double) and complexity (real). The second argument, [2 4], indicates the size, a matrix with two dimensions. The third argument, 1, indicates that the input is variable sized. The upper bound is 2 for the first dimension and 4 for the second dimension.

   Note

   During compilation, fiaccel detects variables and structure fields that change size after you define them, and reports these occurrences as errors. In addition, fiaccel performs a runtime check to generate errors when data exceeds upper bounds.

4. Fix size mismatch errors:

   Cause:	How To Fix:	For More Information:
   You try to change the size of data after its size has been locked.	Declare the data to be variable sized.	See Resolve Error: Arrays Have Incompatible Sizes.

5. Fix upper bounds errors

   Cause:	How To Fix:	For More Information:
   MATLAB cannot determine or compute the upper bound	Specify an upper bound.	See Specify Upper Bounds for Variable-Size Arrays and Resolve Error: Arrays Have Incompatible Sizes.
   MATLAB attempts to compute an upper bound for unbounded variable-size data.	If the data is unbounded, enable dynamic memory allocation.	See Control Dynamic Memory Allocation

6. Generate C/C++ code using the fiaccel function.

Accelerate Code for a MATLAB Function That Expands a Vector in a Loop

• About the MATLAB Function uniquetol

• Step 1: Add Compilation Directive for Code Generation

• Step 2: Address Issues Detected by the Code Analyzer

• Step 3: Generate MEX Code

• Step 4: Fix the Size Mismatch Error

• Step 5: Compare Execution Speed of MEX Function to Original Code

About the MATLAB Function uniquetol

This example uses the function uniquetol. This function returns in vector B a version of input vector A, where the elements are unique to within tolerance tol of each other. In vector B, abs(B(i) - B(j)) > tol for all i and j. Initially, assume input vector A can store up to 100 elements.

function B = uniquetol(A, tol)
A = sort(A);
B = A(1);
k = 1;
for i = 2:length(A)
   if abs(A(k) - A(i)) > tol
      B = [B A(i)];
      k = i;
   end
end

Step 1: Add Compilation Directive for Code Generation

Add the %#codegen compilation directive at the top of the function:

function B = uniquetol(A, tol) %#codegen
A = sort(A);
B = A(1);
k = 1;
for i = 2:length(A)
   if abs(A(k) - A(i)) > tol
      B = [B A(i)];
      k = i;
   end
end

Step 2: Address Issues Detected by the Code Analyzer

The Code Analyzer detects that variable B might change size in the for- loop. It issues this warning:

The variable 'B' appears to change size on every loop iteration.
Consider preallocating for speed.

In this function, vector B should expand in size as it adds values from vector A. Therefore, you can ignore this warning.

Step 3: Generate MEX Code

To generate MEX code, use the fiaccel function.

1. Generate a MEX function for uniquetol:

   T = numerictype(1, 16, 15);
   fiaccel -report uniquetol -args {coder.typeof(fi(0,T),[1 100],1),coder.typeof(fi(0,T))}


    What do these command-line options mean?

   T = numerictype(1, 16, 15) creates a signed numerictype object with a 16-bit word length and 15-bit fraction length that you use to specify the data type of the input arguments for the function uniquetol.

   The fiaccel function -args option specifies the class, complexity, and size of each input to function uniquetol:

   • The first argument, coder.typeof, defines a variable-size input. The expression coder.typeof(fi(0,T),[1 100],1) defines input A as a vector of real, signed embedded.fi objects that have a 16-bit word length and 15-bit fraction length. The vector has a fixed upper bound; its first dimension is fixed at 1 and its second dimension can vary in size up to 100 elements.

     For more information, see Specify Variable-Size Inputs at the Command Line (MATLAB Coder).

   • The second argument, coder.typeof(fi(0,T)), defines input tol as a real, signed embedded.fi object with a 16-bit word length and 15-bit fraction length.

   The -report option instructs fiaccel to generate a code generation report, even if no errors or warnings occur.

   For more information, see the fiaccel reference page.

   Executing this command generates a compiler error:

   ??? Size mismatch (size [1 x 1] ~= size [1 x 2]).
   The size to the left is the size
   of the left-hand side of the assignment.

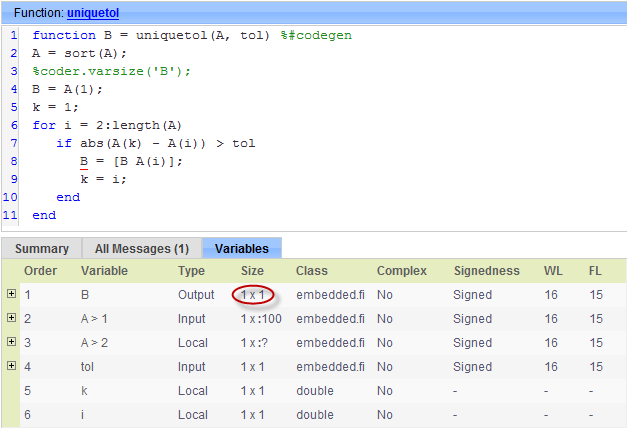

2. Open the error report and select the Variables tab.



The error indicates a size mismatch between the left-hand side and right-hand side of the assignment statement B = [B A(i)];. The assignment B = A(1) establishes the size of B as a fixed-size scalar (1 x 1). Therefore, the concatenation of [B A(i)] creates a 1 x 2 vector.

Step 4: Fix the Size Mismatch Error

To fix this error, declare B to be a variable-size vector.

1. Add this statement to the uniquetol function:

   coder.varsize('B');

   It should appear before B is used (read). For example:

   function B = uniquetol(A, tol) %#codegen
   A = sort(A);

   coder.varsize('B');

   B = A(1);
   k = 1;
   for i = 2:length(A)
      if abs(A(k) - A(i)) > tol
         B = [B A(i)];
         k = i;
      end
   end

   The function coder.varsize declares every instance of B in uniquetol to be variable sized.

2. Generate code again using the same command:

   fiaccel -report uniquetol -args {coder.typeof(fi(0,T),[1 100],1),coder.typeof(fi(0,T))}

   In the current folder, fiaccel generates a MEX function for uniquetol named uniquetol_mex and provides a link to the code generation report.

3. Click the View report link.

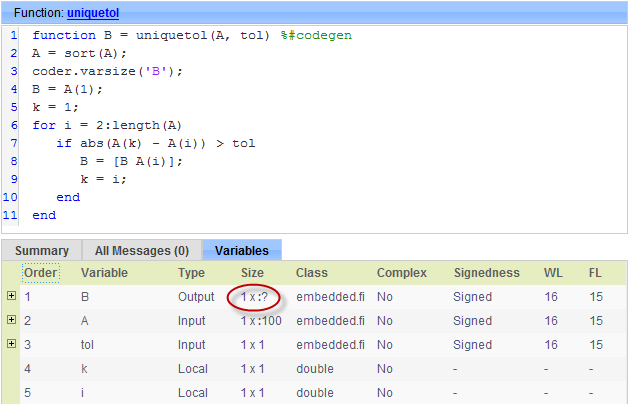

4. In the code generation report, select the Variables tab.



   The size of variable B is 1x:?, indicating that it is variable size with no upper bounds.

Step 5: Compare Execution Speed of MEX Function to Original Code

Run the original MATLAB algorithm and MEX function with the same inputs for the same number of loop iterations and compare their execution speeds.

1. Create inputs of the correct class, complexity, and size to pass to the uniquetol MATLAB and MEX functions.

   x = fi(rand(1,90), T);
   tol = fi(0, T);


2. Run the original uniquetol function in a loop and time how long it takes to execute 10 iterations of the loop.

   tic; for k=1:10, b = uniquetol(x,tol); end; tSim=toc


3. Run the generated MEX function with the same inputs for the same number of loop iterations.

   tic; for k=1:10, b = uniquetol_mex(x,tol); end; tSim_mex=toc


4. Compare the execution times.

   r = tSim/tSim_mex


   This example shows that generating a MEX function using fiaccel greatly accelerates the execution of the fixed-point algorithm.
