NB-IoT Uplink Waveform Generation and Analysis
This example shows how to generate and receive a narrowband internet of things (NB-IoT) uplink waveform in the presence of an LTE wideband waveform. The example also analyzes the quality of the received NB-IoT physical uplink shared channel (NPUSCH) through error vector magnitude (EVM) measurements.
Introduction
To support maximum flexibility of the NB-IoT deployment, 3GPP defines these three NB-IoT modes of operation (TS 36.104 Section 3.1):
Standalone — NB-IoT carrier deployed in its own spectrum
Guardband — NB-IoT carrier deployed in the unused resource block(s) within an LTE carrier's guardband
In-band — NB-IoT carrier deployed in resource block(s) of an LTE carrier

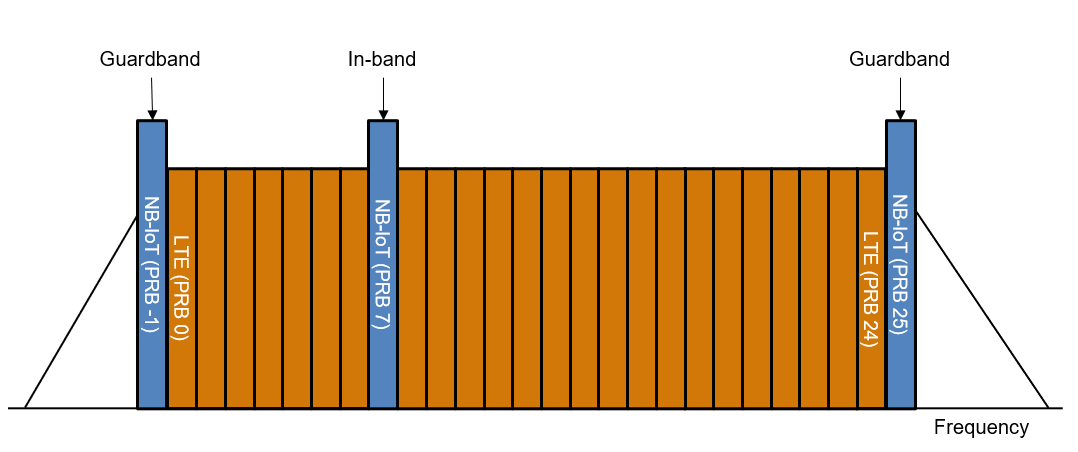

This figure shows a sketch of in-band and guardband modes for a 5 MHz LTE carrier.
For the in-band mode of NB-IoT, the NB-IoT component should not overlap with any physical resource block (PRB) allocated for transmitting the physical uplink control channel (PUCCH).
For the guardband mode of NB-IoT, the allowed PRBs depend on the guardband size of the LTE carrier as defined in TS 36.101 Section 5.6. Guardband mode of NB-IoT is not supported on a 1.4 MHz and 3 MHz LTE carrier because the guardband sizes are too small. This table shows the allowed PRB indices for guardband deployment of uplink NB-IoT:
guardbandPRBTable = nbiotAllowedGuardbandPRB()
guardbandPRBTable=6×3 table
LTE Bandwidth Guardband PRBs (Lower Edge) Guardband PRBs (Upper Edge)
___________________ ___________________________ ___________________________
"1.4 MHz ( 6 RBs)" {1×0 double } {1×0 double }
" 3 MHz ( 15 RBs)" {1×0 double } {1×0 double }
" 5 MHz ( 25 RBs)" {[ -1]} {[ 25]}
" 10 MHz ( 50 RBs)" {[ -2 -1]} {[ 50 51]}
" 15 MHz ( 75 RBs)" {[ -4 -3 -2 -1]} {[ 75 76 77 78]}
" 20 MHz (100 RBs)" {[-5 -4 -3 -2 -1]} {[100 101 102 103 104]}
The example shows how to:
Generate an NB-IoT uplink waveform based on a reference test channel.
Receive the NB-IoT waveform in the presence of an LTE wideband waveform.
Measure NPUSCH EVM.

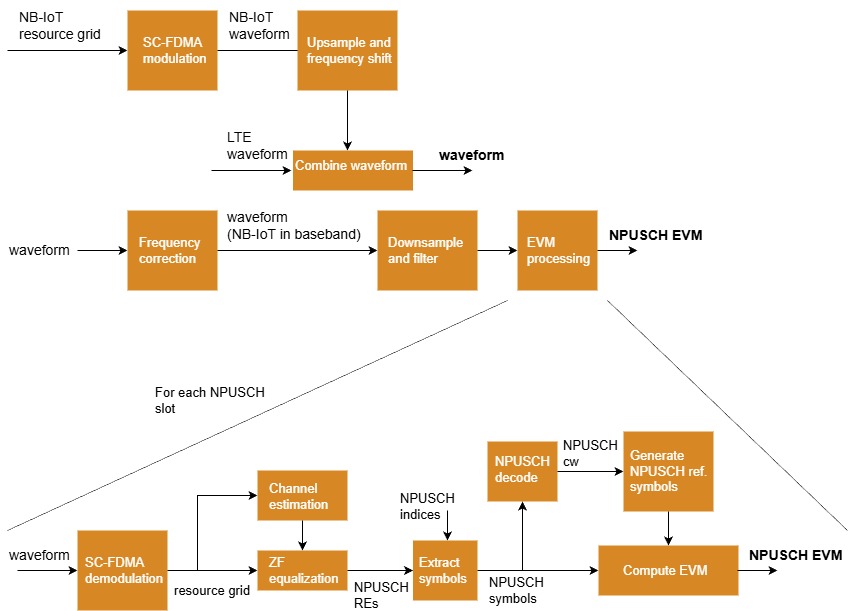

Generating the waveform and the processing it at the receiver to compute the NPUSCH EVM involves these steps:
Simulation Configuration
This example generates the NB-IoT uplink waveform based on a reference test channel, as defined in TS 36.104 Annex A. You can select a reference test channel with the desired subcarrier spacing and number of consecutive subcarriers in a resource unit (RU) for the NPUSCH configuration.
% TS 36.104, Base Station (BS) radio transmission and reception % Annex A.14 - Fixed Reference Channels for NB-IoT reference sensitivity (pi/2 BPSK, R=1/3) % Annex A.15 - Fixed Reference Channels for NB-IoT dynamic range (pi/4 QPSK, R=2/3) % Annex A.16 - Fixed Reference Channels for NB-IoT PUSCH format 1 rcname ="A14-1";
Select the number of uplink resource blocks (RBs), NULRB, and the index of the PRB for NB-IoT allocation, nbiotPRBIndex. To use the in-band operation mode for NB-IoT, specify nbiotPRBIndex as an integer between 0 and NULRB-1. To use the guardband operation mode for NB-IoT, specify nbiotPRBIndex with a valid value from guardbandPRBTable. Any other value of nbiotPRBIndex indicates that the NB-IoT will be out of band.
NULRB =25; nbiotPRBIndex =
-1;
Set the waveform duration in the number of transport blocks. The specified waveform duration applies to the LTE wideband waveform as well.
totNumTrBlks = 1;
NB-IoT Uplink Configuration and Waveform Generation
Use the local function configureNBIoTUplinkWaveform to configure the user equipment (UE) specific configuration, the NPUSCH channel specific configuration, and other required parameters.
ngen = configureNBIoTUplinkWaveform(NULRB,nbiotPRBIndex,RCName=rcname,TotNumTrBlks=totNumTrBlks);
Simulating guardband NB-IoT carrier
Use the local function generateNBIoTUplinkWaveform to generate the NB-IoT waveform. For details about this process, see the NB-IoT Uplink Waveform Generation example.
[nbiotWaveform,nbiotInfo] = generateNBIoTUplinkWaveform(ngen);
Generating 32 slots corresponding to 1 transport block(s) transmitted on NPUSCH
LTE Uplink Configuration and Waveform Generation
Configure and generate the LTE wideband waveform. Use the local function configureWidebandLTEWaveform to configure an LTE wideband waveform with the number of uplink RBs equal to NULRB.
ltecfg = configureWidebandLTEWaveform(NULRB,ngen.TotSubframes,nbiotPRBIndex);
% Generate wideband LTE waveform
trdata = [1 0 0 1];
[lteWaveform,~,lteInfo] = lteRMCULTool(ltecfg,trdata);Waveform Combination

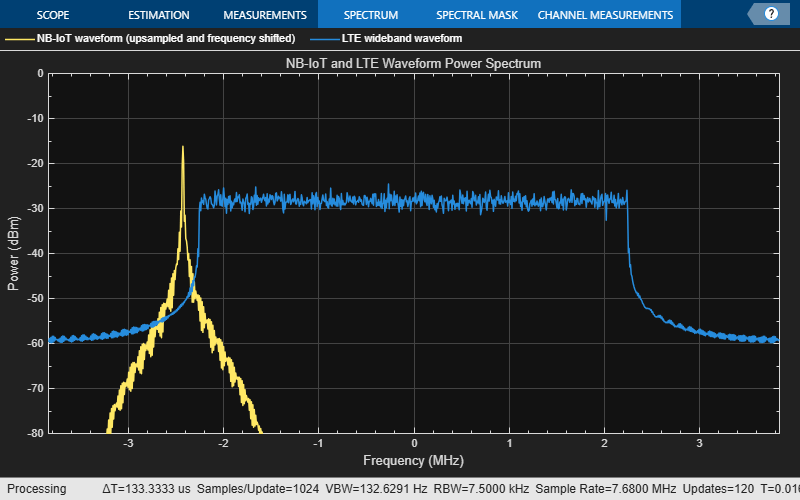

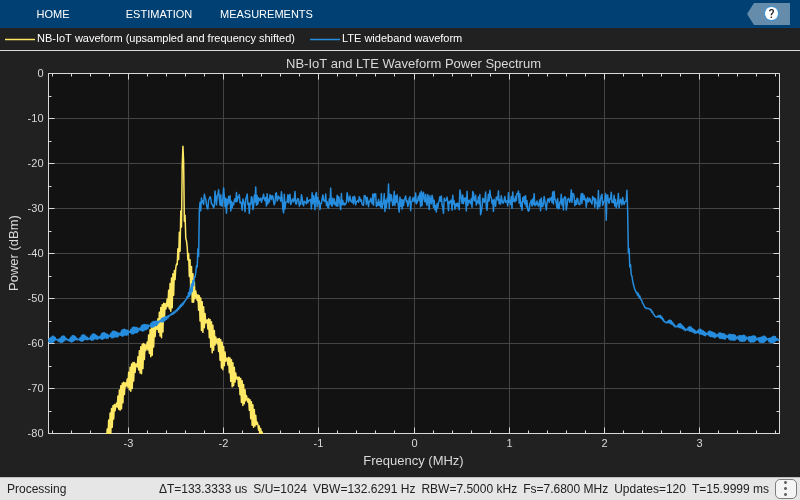

The example combines the NB-IoT and the LTE waveforms in the time domain assuming perfect synchronization between the two waveforms at the base station (BS). The hNBUplinkCombinedWaveform function applies frequency shifting to the NB-IoT waveform to put it in the specified PRB and upsamples the NB-IoT waveform before the combination. This function also plots the power spectra of the upsampled and frequency shifted NB-IoT waveform and the LTE wideband waveform.
% Create the parameter structure needed to combine the waveform OSR = lteInfo.SamplingRate/nbiotInfo.SamplingRate; combParams = struct(); combParams.NULRB = NULRB; combParams.NBIoTPRBIndex = nbiotPRBIndex; combParams.OSR = OSR; combParams.SamplingRate = lteInfo.SamplingRate; % Combine the waveform [combWaveform,offset] = hNBUplinkCombinedWaveform(combParams,lteWaveform,nbiotWaveform);
NB-IoT Receive Filtering
In this section, you:
Apply frequency correction. Shift the received waveform in frequency to bring the NB-IoT spectrum to baseband (0 Hz).
Filter out the LTE component and downsample. Downsample the waveform to the NB-IoT sampling rate and filter out the frequencies outside the NB-IoT band.

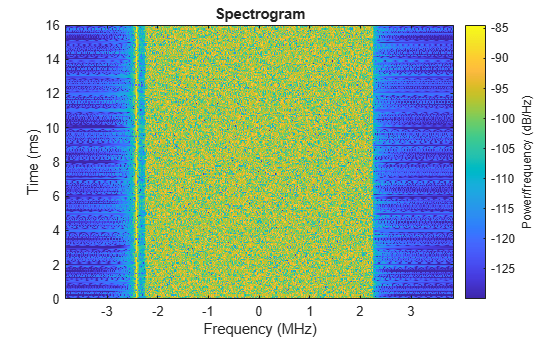

Plot the spectrogram of the received waveform. The plot shows the frequency occupied by the NB-IoT component in the received waveform.
rxWaveform = combWaveform; minThreshold = -130 + 20 * double(strcmp(ngen.NBULSubcarrierSpacing,'3.75kHz')); % Threshold for spectrogram figure; spectrogram(rxWaveform(:,1),ones(lteInfo.Nfft,1),0,lteInfo.Nfft,'centered',lteInfo.SamplingRate,'MinThreshold',minThreshold);
Downshifting of NB-IoT Waveform

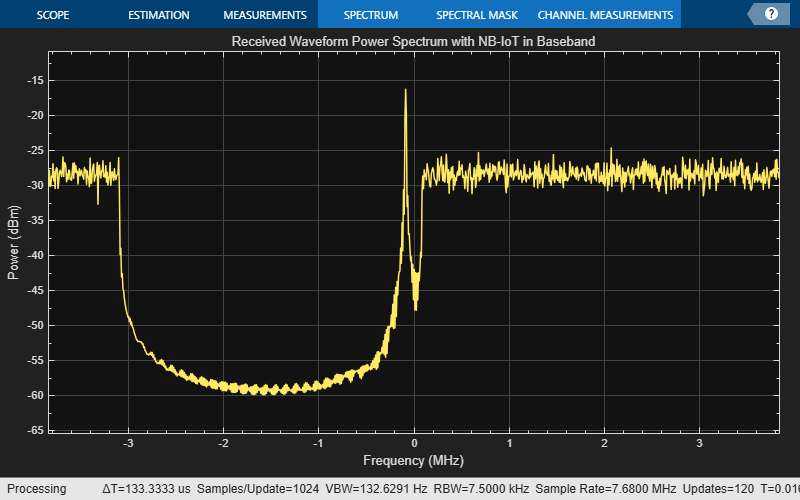

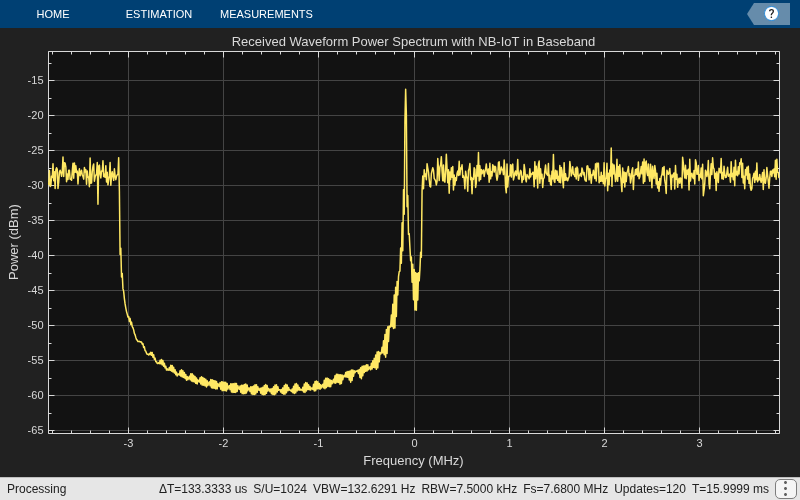

Downshift the received waveform to bring the NB-IoT component to baseband. The plot shows the power spectrum of the received waveform after the frequency downshifting where the center of the PRB with the NB-IoT component is shifted to 0 Hz.
rxWaveformB = lteFrequencyCorrect(ltecfg,rxWaveform,offset); % Received waveform with NB-IoT in baseband combinedSpecPlotB = spectrumAnalyzer('SampleRate',lteInfo.SamplingRate,'Title','Received Waveform Power Spectrum with NB-IoT in Baseband'); combinedSpecPlotB(rxWaveformB);
Filtering and Downsampling of NB-IoT Waveform
Use the resample function to downsample the baseband received waveform to the nominal NB-IoT sampling rate of 1.92 MHz. The default FIR antialiasing lowpass filter implemented in the resample function filters out the unwanted LTE component without using an additional lowpass filter.
rxwave = resample(rxWaveformB,1,OSR);

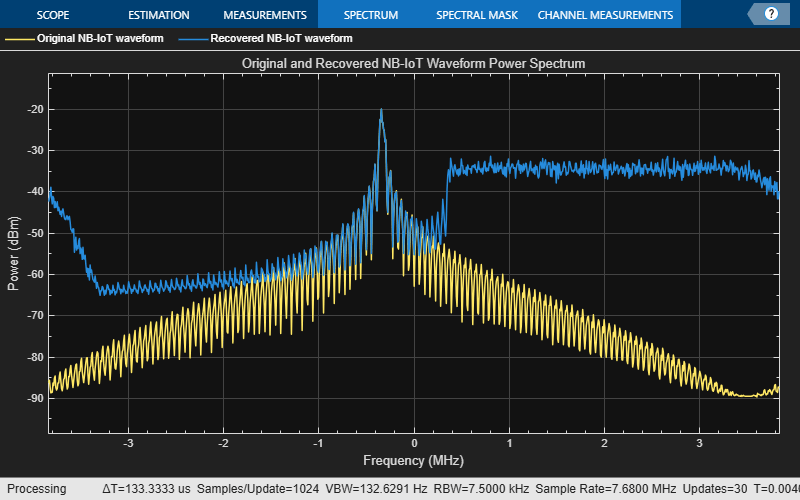

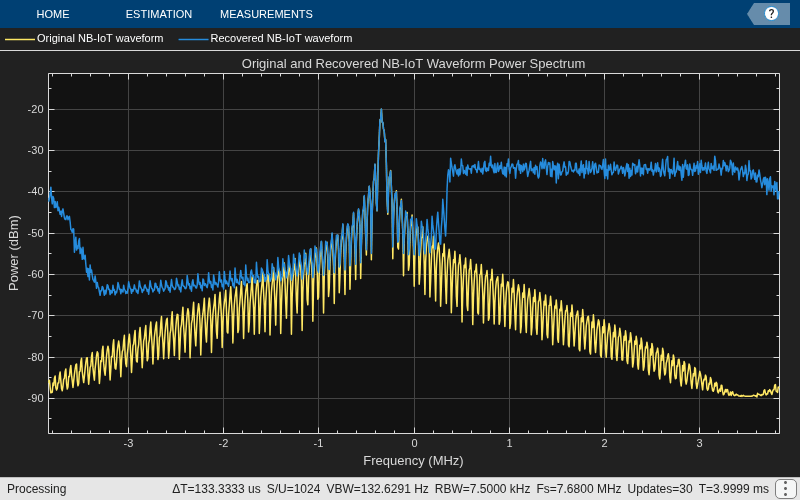

Plot the spectrogram of the recovered NB-IoT waveform against the original NB-IoT waveform.
filteredSpecPlot = spectrumAnalyzer('SampleRate',lteInfo.SamplingRate,'Title','Original and Recovered NB-IoT Waveform Power Spectrum', ... 'ChannelNames',{'Original NB-IoT waveform','Recovered NB-IoT waveform'},'ShowLegend',true); filteredSpecPlot([nbiotWaveform,rxwave]);

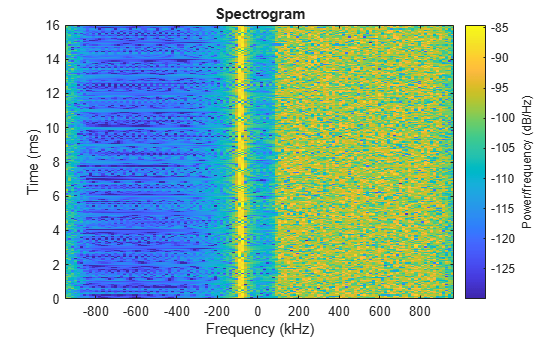

Plot the spectrogram of the recovered NB-IoT waveform. The plot shows the baseband narrowband waveform after extracting it from the received waveform.
figure; spectrogram(rxwave(:,1),ones(nbiotInfo.Nfft,1),0,nbiotInfo.Nfft,'centered',nbiotInfo.SamplingRate,'MinThreshold',minThreshold);
EVM Measurements
Channel Estimator Configuration for EVM Measurements
Parameterize the channel estimator at the receiver end using the structure cec.
cec = struct(); cec.PilotAverage = 'UserDefined'; % Type of pilot symbol averaging cec.FreqWindow = 23; % Frequency window size in REs cec.TimeWindow = 1; % Time window size in REs cec.InterpType = 'Cubic'; % 2D interpolation type cec.CELength = 1; % Channel estimation length in ms
Process EVM

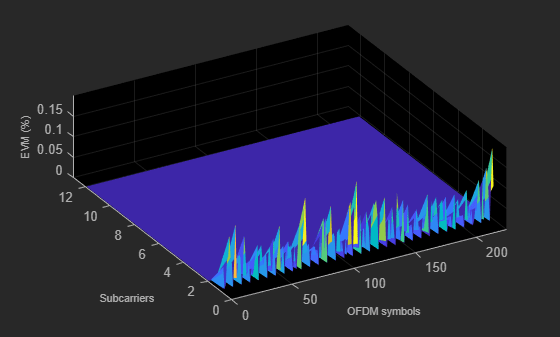

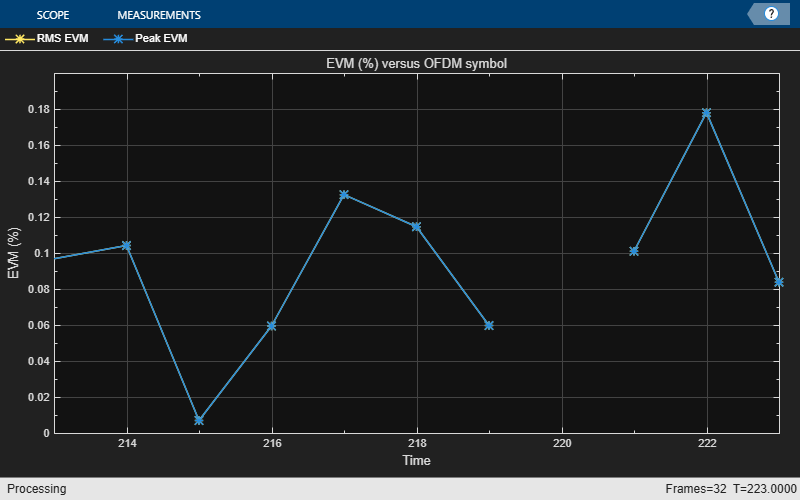

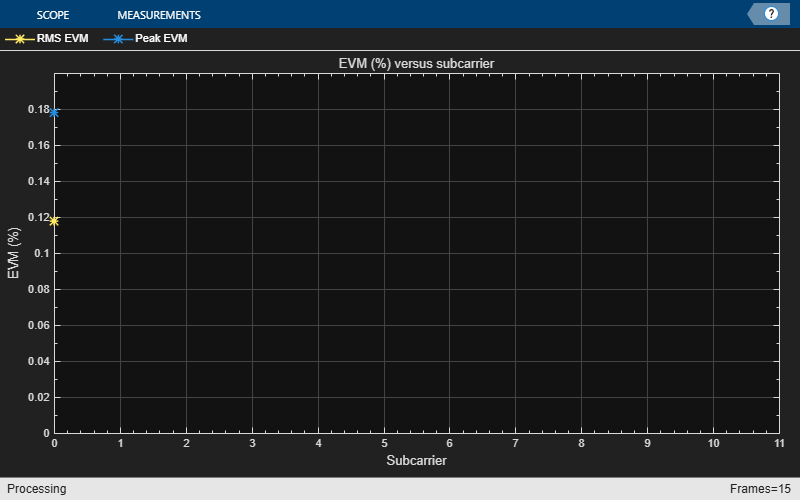

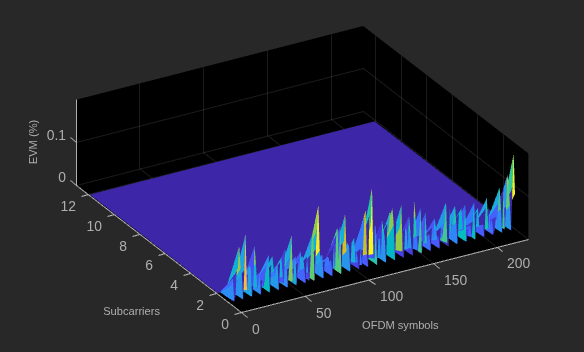

The hNPUSCHEVM function provides per slot and overall EVM measurements.
[evmmeas,plots] = hNPUSCHEVM(ngen,cec,rxwave,nbiotInfo);
Slot 0: average EVM 0.054%, peak EVM 0.078% Slot 1: average EVM 0.094%, peak EVM 0.152% Slot 2: average EVM 0.076%, peak EVM 0.119% Slot 3: average EVM 0.033%, peak EVM 0.054% Slot 4: average EVM 0.069%, peak EVM 0.088% Slot 5: average EVM 0.057%, peak EVM 0.076% Slot 6: average EVM 0.075%, peak EVM 0.121% Slot 7: average EVM 0.053%, peak EVM 0.078% Slot 8: average EVM 0.047%, peak EVM 0.066% Slot 9: average EVM 0.116%, peak EVM 0.174% Slot 10: average EVM 0.050%, peak EVM 0.068% Slot 11: average EVM 0.057%, peak EVM 0.098% Slot 12: average EVM 0.097%, peak EVM 0.138% Slot 13: average EVM 0.065%, peak EVM 0.077% Slot 14: average EVM 0.034%, peak EVM 0.048% Slot 15: average EVM 0.123%, peak EVM 0.182% Slot 16: average EVM 0.055%, peak EVM 0.097% Slot 17: average EVM 0.089%, peak EVM 0.117% Slot 18: average EVM 0.092%, peak EVM 0.123% Slot 19: average EVM 0.072%, peak EVM 0.125% Slot 20: average EVM 0.082%, peak EVM 0.127% Slot 21: average EVM 0.063%, peak EVM 0.107% Slot 22: average EVM 0.046%, peak EVM 0.075% Slot 23: average EVM 0.040%, peak EVM 0.054% Slot 24: average EVM 0.067%, peak EVM 0.105% Slot 25: average EVM 0.074%, peak EVM 0.092% Slot 26: average EVM 0.045%, peak EVM 0.088% Slot 27: average EVM 0.058%, peak EVM 0.089% Slot 28: average EVM 0.052%, peak EVM 0.092% Slot 29: average EVM 0.036%, peak EVM 0.052% Slot 30: average EVM 0.076%, peak EVM 0.108% Slot 31: average EVM 0.118%, peak EVM 0.178% All 32 slots: average EVM 0.072%, peak EVM 0.182%
References
3GPP TS 36.104. "Evolved Universal Terrestrial Radio Access (E-UTRA); Base Station (BS) Radio Transmission and Reception." 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.
3GPP TS 36.211. "Evolved Universal Terrestrial Radio Access (E-UTRA); Physical Channels and Modulation." 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.
3GPP TS 36.213. "Evolved Universal Terrestrial Radio Access (E-UTRA); Physical Layer Procedures." 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.
