filterm

Filter latitudes and longitudes based on underlying data grid

Description

example

[latout,lonout] = filterm(lat,lon,Z,R,allowed) filters a set of latitudes and longitudes to include only those data points which have a corresponding value in Z equal to allowed. R can be a geographic raster reference object, a referencing vector, or a referencing matrix.

[latout,lonout,indx] = filterm(___) filters a set of latitudes and longitudes, returning indices of the included points in indx.

Examples

collapse all

Load the topo dataset. This creates several variables in the workspace.

load topo

Select points along the equator with 5 degree spacing.

lon = (0:5:360)';
lat = zeros(size(lon));

Filter the points.

land = topo>0;
[newlat,newlon] = filterm(lat,lon,land,topolegend,1);

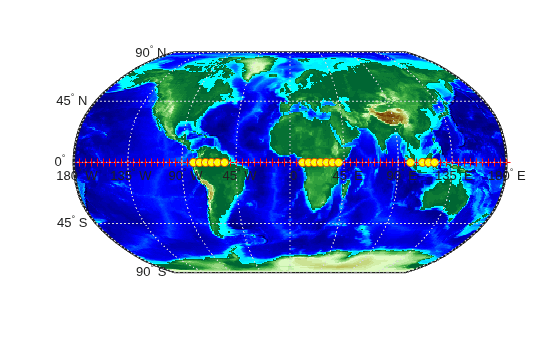

Map the terrain.

geoshow(topo,topolegend,'DisplayType','texturemap')

Show all the points in red.

geoshow(lat,lon,'DisplayType','point','MarkerEdgeColor','r')

Circle the points which are not filtered out.

geoshow(newlat,newlon,'DisplayType','point','Marker','o',...
    'MarkerEdgeColor','y')

Input Arguments

collapse all

Latitude values, specified as a numeric array.

Data Types: single | double

Longitude values, specified as a numeric array.

Data Types: single | double

Filter, specified as a numeric array.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Spatial referencing information, specified as a geographic raster reference object, a referencing vector, or a referencing matrix.

If R is a geographic raster reference object, its RasterSize property must be consistent with size(Z).

If R is a referencing vector, it must be a 1-by-3 with elements:

[cells/degree northern_latitude_limit western_longitude_limit]

If R is a referencing matrix, it must be 3-by-2 and transform raster row and column indices to or from geographic coordinates according to:

[lon lat] = [row col 1] * R

If R is a referencing matrix, it must define a (non-rotational, non-skewed) relationship in which each column of the data grid falls along a meridian and each row falls along a parallel. Nearest-neighbor interpolation is used by default. NaN is returned for points outside the grid limits or for which lat or lon contain NaN. All angles are in units of degrees.

Data Types: double

Allowed values, specified as a numeric array or character vector.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical | char

Output Arguments

collapse all

Latitudes of filtered points, returned as a numeric array.

Longitudes of filtered points, returned as a numeric array.

Indices of filtered points, returned as a numeric array.

See Also

| |

Introduced before R2006a
