# scircle1

Small circles from center, range, and azimuth

## Syntax

```[lat,lon] = scircle1(lat0,lon0,rad) [lat,lon] = scircle1(lat0,lon0,rad,az) [lat,lon] = scircle1(lat0,lon0,rad,az,ellipsoid) [lat,lon] = scircle1(lat0,lon0,rad,units) [lat,lon] = scircle1(lat0,lon0,rad,az,units) [lat,lon] = scircle1(lat0,lon0,rad,az,ellipsoid,units) [lat,lon] = scircle1(lat0,lon0,rad,az,ellipsoid,units,npts) [lat,lon] = scircle1(track,...) ```

## Description

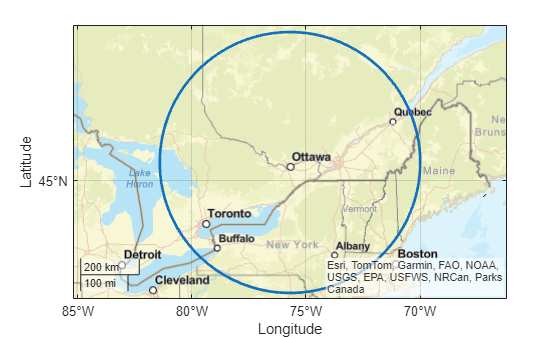

`[lat,lon] = scircle1(lat0,lon0,rad)` computes small circles (on a sphere) with a center at the point `lat0,lon0` and radius `rad`. The inputs can be scalar or column vectors. The input radius is in degrees of arc length on a sphere.

`[lat,lon] = scircle1(lat0,lon0,rad,az)` uses the input `az` to define the small circle arcs computed. The arc azimuths are measured clockwise from due north. If `az` is a column vector, then the arc length is computed from due north. If `az` is a two-column matrix, then the small circle arcs are computed starting at the azimuth in the first column and ending at the azimuth in the second column. If `az = []`, then a complete small circle is computed.

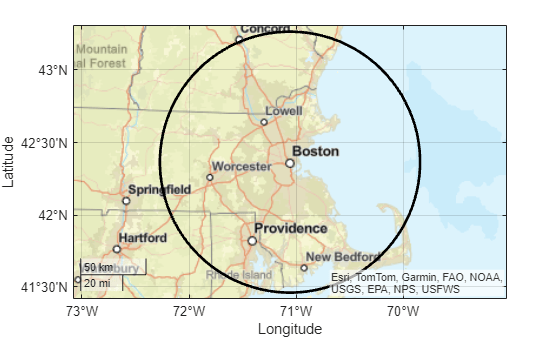

`[lat,lon] = scircle1(lat0,lon0,rad,az,ellipsoid)` computes small circles on the ellipsoid defined by the input `ellipsoid`, rather than by assuming a sphere. `ellipsoid` is a `referenceSphere`, `referenceEllipsoid`, or `oblateSpheroid` object, or a vector of the form ```[semimajor_axis eccentricity]```. If the semimajor axis is non-zero, `rad` is assumed to be in distance units matching the units of the semimajor axis. However, if `ellipsoid = []`, or if the semimajor axis is zero, then `rad` is interpreted as an angle and the small circles are computed on a sphere as in the preceding syntax.

`[lat,lon] = scircle1(lat0,lon0,rad,units)`,
`[lat,lon] = scircle1(lat0,lon0,rad,az,units)`, and
`[lat,lon] = scircle1(lat0,lon0,rad,az,ellipsoid,units)`
are all valid calling forms, which use the input units to define the angle units of the inputs and outputs. If you omit units, `'degrees'` is assumed.

`[lat,lon] = scircle1(lat0,lon0,rad,az,ellipsoid,units,npts)` uses the scalar input `npts` to determine the number of points per small circle computed. The default value of `npts` is 100.

`[lat,lon] = scircle1(track,...)` uses track to define either a great circle or rhumb line radius. If ```track = 'gc'```, then small circles are computed. If `track = 'rh'`, then the circles with radii of constant rhumb line distance are computed. If you omit track, `'gc'` is assumed.

`mat = scircle1(...)` returns a single output argument where `mat = [lat lon]`. This is useful if a single small circle is computed.

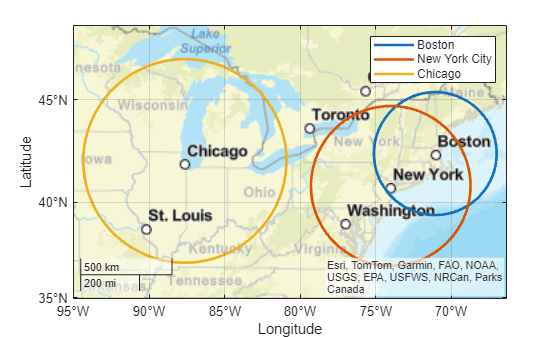

Multiple circles can be defined from a single starting point by providing scalar `lat0,lon0` inputs and column vectors for `rad` and `az` if desired.

## Examples

Create and plot a small circle centered at (0º,0º) with a radius of 10º.

```axesm('mercator','MapLatLimit',[-30 30],'MapLonLimit',[-30 30]); [latc,longc] = scircle1(0,0,10); plotm(latc,longc,'g')```

If the desired radius is known in some nonangular distance unit, use the radius returned by the `earthRadius` function as the ellipsoid input to set the range units. (Use an empty azimuth entry to indicate a full circle.)

```[latc,longc] = scircle1(0,0,550,[],earthRadius('nm')); plotm(latc,longc,'r')```

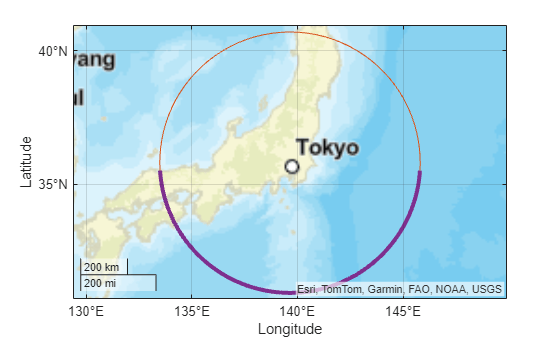

For just an arc of the circle, enter an azimuth range.

```[latc,longc] = scircle1(0,0,5,[-30 70]); plotm(latc,longc,'m')``` collapse all

### Small Circle

A small circle is the locus of all points an equal surface distance from a given center. For true small circles, this distance is always calculated in a great circle sense; however, the `scircle1` function allows a locus to be calculated using distances in a rhumb line sense as well. An example of a small circle is all points exactly 100 miles from the Washington Monument. Parallels on the globe are all small circles. Great circles are a subset of small circles, specifically those with a radius of 90º or its angular equivalent, so all meridians on the globe are small circles as well.

### Small Circle Notation

Small circle notation consists of a center point and a radius in units of angular arc length.
