getaudiodata

Store recorded audio signal in numeric array

Syntax

y = getaudiodata(recorder)

y = getaudiodata(recorder,dataType)

Description

y = getaudiodata(recorder) returns recorded audio data associated with audiorecorder object recorder in a double array y.

y = getaudiodata(recorder,dataType) converts the signal data to the specified data type.

Examples

Get Data from Audio Recorder Object

Create a recording using the audiorecorder object and then get the audio signal as a numeric array of different data types.

Create an audiorecorder object and record a five second audio clip from your microphone.

recObj = audiorecorder;
disp('Start speaking.')

Start speaking.

recordblocking(recObj,5);
disp('End of Recording.');

End of Recording.

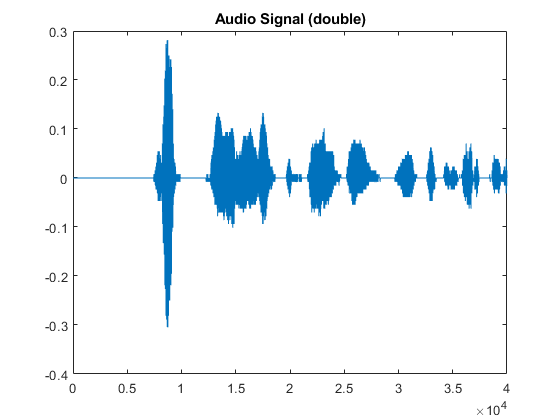

Get the audio signal as a double array and plot the data.

doubleArray = getaudiodata(recObj);
plot(doubleArray);
title('Audio Signal (double)');

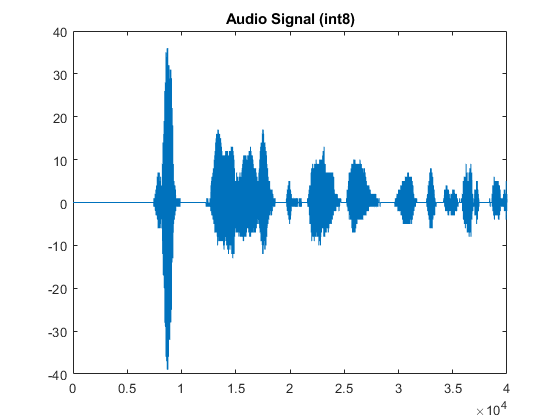

Get the audio signal as an int8 array and plot the data. Based on the data type specified, the same audio signal is returned with a different range of values . In this case, the values in the int8 array can span between -128 and 127.

int8Array = getaudiodata(recObj,'int8');
plot(int8Array);
title('Audio Signal (int8)');

Input Arguments

recorder — Audio recorder object

audiorecorder object

Audio recorder object, specified as an audiorecorder object. Use the audiorecorder function to create the object.

dataType — Data type

'double' (default) | 'single' | 'int16' | 'int8' | 'uint8'

Data type of the output audio signal, specified as one of these values: 'double', 'single', 'int16', 'int8', or 'uint8'.

Data Types: char | string

Output Arguments

y — Audio signal data

numeric array

Audio signal data, returned as a numeric array.

The number of columns in y depends on the number of channels in the recording: one for mono and two for stereo.

The value range of y depends on the specified dataType.

Data Type	Sample Value Range
int8	-128 to 127
uint8	0 to 255
int16	-32,768 to 32,767
single or double	-1 to 1

Version History

Introduced in R2006a
