Solve a Finite Set MPC Problem in MATLAB
This example shows how to solve, in MATLAB®, an MPC problem in which some manipulated variables belong to a finite (discrete) set.
Create a Plant Model
Fix the random generator seed for reproducibility.
rng(0);
Create a discrete-time strictly proper plant with 4 states, two inputs and one output.
plant = drss(4,1,2); plant.D = 0;
Set the sampling time to 0.1s, and increase the control authority of the first input, to better illustrate its control contribution.
plant.Ts = 0.1; plant.B(:,1)=plant.B(:,1)*2;
Design the MPC Controller
Create an MPC controller with one second sampling time, 20
steps prediction horizon and 5
steps control horizon.
mpcobj = mpc(plant,0.1,20,5);
-->"Weights.ManipulatedVariables" is empty. Assuming default 0.00000. -->"Weights.ManipulatedVariablesRate" is empty. Assuming default 0.10000. -->"Weights.OutputVariables" is empty. Assuming default 1.00000.
Specify the first manipulated variable as belonging to a set of seven possible values (you could also specify the type as an integer using the instruction mpcobj.MV(1).Type = 'integer';
)
mpcobj.MV(1).Type = [-1 -0.7 -0.3 0 0.2 0.5 1];
Use rate limits to enforce maximum increment and decrement values for the first manipulated variable.
mpcobj.MV(1).RateMin = -0.5; mpcobj.MV(1).RateMax = 0.5;
Set limits on the second manipulated variable, whose default type (continuous) has not been changed.
mpcobj.MV(2).Min = -2; mpcobj.MV(2).Max = 2;
Simulate the Closed Loop Using the sim
Command and Plot Results
Set the number of simulation steps.
simsteps = 50;
Create an output reference signal equal to zero from steps 20
to 35
and equal to 0.6
before and after.
r = ones(simsteps,1)*0.6; r(20:35) = 0;
Simulate the closed loop using the sim
command. Return the plant input and output signals.
[YY,~,UU,~,~,~,status] = sim(mpcobj,simsteps,r);
-->Assuming output disturbance added to measured output #1 is integrated white noise. -->"Model.Noise" is empty. Assuming white noise on each measured output.
Plot results.

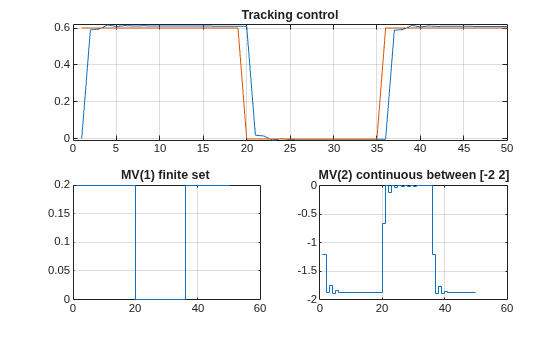

figure(1) subplot(211) % plant output plot([YY,r]); grid title("Tracking control"); subplot(223) % first plant input stairs(UU(:,1)); grid title("MV(1) finite set ") subplot(224) % second plant input stairs(UU(:,2)); grid title("MV(2) continuous between [-2 2]")
As expected, the first manipulated variable is restricted to the values specified in the finite set (with jumps less than the specified limit), while the second one can vary continuously between -2
and 2
. The plant output tracks the reference value after a few seconds.
Simulate the Closed Loop Using the mpcmove
Command and Plot Results
Get handle to mpcobj
state and initialize plant state.
xmpc = mpcstate(mpcobj); x = xmpc.Plant;
Initialize arrays that store signals.
YY = []; RR = []; UU = []; XX = [];
Perform simulation using the mpcmove
command to calculate the control actions.
for k = 1:simsteps XX = [XX;x']; % store plant state y = plant.C*x; % calculate plant output YY = [YY;y]; % store plant output RR = [RR;r(k)]; % store reference u = mpcmove(mpcobj,xmpc,y,r(k)); % calculate optimal mpc move UU = [UU;u']; % store plant input x = plant.A*x+plant.B*u; % update plant state % is the last line necessary since x=xmpc.Plant gets updated anyway? end
Plot results.

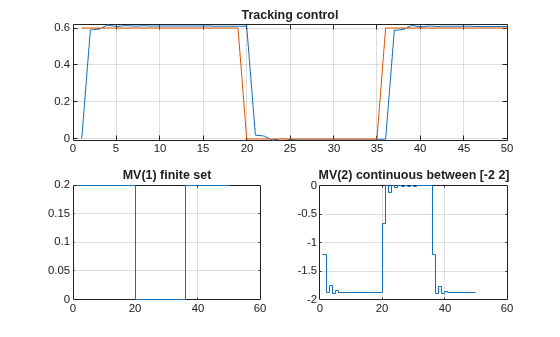

figure(2) subplot(211) % plant output plot([YY,r]); grid title("Tracking control"); subplot(223) % first plant input stairs(UU(:,1)); grid title("MV(1) finite set") subplot(224) % second plant input stairs(UU(:,2)); grid title("MV(2) continuous between [-2 2]")
The simulation results are identical as the ones achieved using the sim
command.
