displayImage

R2026b

Display an image on the Raspberry Pi hardware or on the LED Matrix of SenseHAT

Syntax

displayImage (mypi,img)

displayImage (mypi,img,Name,Value)

displayImage (mysh,img)

displayImage (mysh,img,orientation)

Description

For Raspberry Pi: displayImage (mypi,img) displays the specified image on the Raspberry Pi^® hardware. During simulation, this function displays the image on the computer.

For Raspberry Pi: displayImage (mypi,img,Name,Value) displays the specified image with a window title on the Raspberry Pi hardware. During simulation, this function displays the image on the computer.

For SenseHAT: displayImage (mysh,img) displays an image of 8 * 8 * 3 dimension on the LED Matrix of SenseHAT.

For SenseHAT: displayImage (mysh,img,orientation) displays an image of 8 * 8 * 3 dimension on the LED Matrix of SenseHAT with the specified orientation. The supported values for orientation are: 0, 90, 180, and 270 degrees.

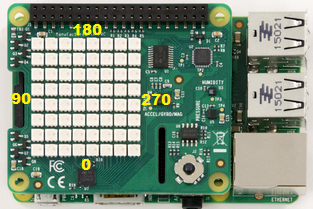

The following image shows the orientations of the LED Matrix.

Note

To generate C/C++ code for this function, you must have an Embedded Coder^® license.

Examples

Display Image on Hardware

Display image on the Raspberry Pi hardware

img=imread('edge_detection.png');
displayImage(mypi,img);

Displays an image on the hardware.

Display Image with the Specified Title on Image Window

Display image with the specified title on the image window of the Raspberry Pi hardware

img=imread('edge_detection.png');
displayImage(mypi,img,'Title','Edge Detection');

Displays an image with the title, Edge Detection, on the image window of the hardware.

Display Image on LED Matrix of SenseHAT

Display image on the LED Matrix

img=imread('senseHAT_demo.png');
displayImage(mysh,img);

Displays an image of 8 * 8 * 3 dimension on the LED Matrix.

Display Image with Orientation on LED Matrix of SenseHAT

Display image with orientation

img = imread('senseHAT_demo.png');
displayImage(mysh,img,90);

Displays an image of 8 * 8 * 3 dimension on the LED Matrix with the specified orientation of 90 degrees.

Input Arguments

mypi — Connection to Raspberry Pi hardware board

raspi object

Connection to the Raspberry Pi hardware board, specified as a raspi object.

mysh — Connection to SenseHAT

senseHAT object

Connection to a SenseHAT board, specified as a sensehat object.

img — Image to display on the LED Matrix or on the hardware

numeric

The image object for display on the LED Matrix of 8 x 8 x 3 dimension or on the Raspberry Pi hardware.

orientation — Orientation of the image object on the LED Matrix

numeric

The orientation to be applied for an image to be displayed. The supported values of orientation are 0, 90, 180, and 270.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: displayImage(mypi,inputImage,Title='Webcam Output')

Title — Image window title

raspberry pi display (default)

Title of the image window displayed on the Raspberry Pi hardware, specified as the name-value argument consisting of Title and the title of the image window.

Example: displayImage(mypi,img,Title='Edge Detection');

Data Types: string

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

• You can deploy displayImage on the Raspberry Pi hardware in MATLAB^® Online™.

• Using the full version of the Raspberry Pi OS is recommended when deploying displayImage on the Raspberry Pi hardware in MATLAB Online.

• To generate C/C++ code for this function, you must have an Embedded Coder license. For more information on selecting the right product stack according to your development goals, see Product Stack for Raspberry Pi Blockset.

Version History

Introduced in R2016b
