show

Show

Since R2025a

Syntax

show(cadnetobj)

show(cadnetobj,ColorByIndividual = 'Cadnet')

Description

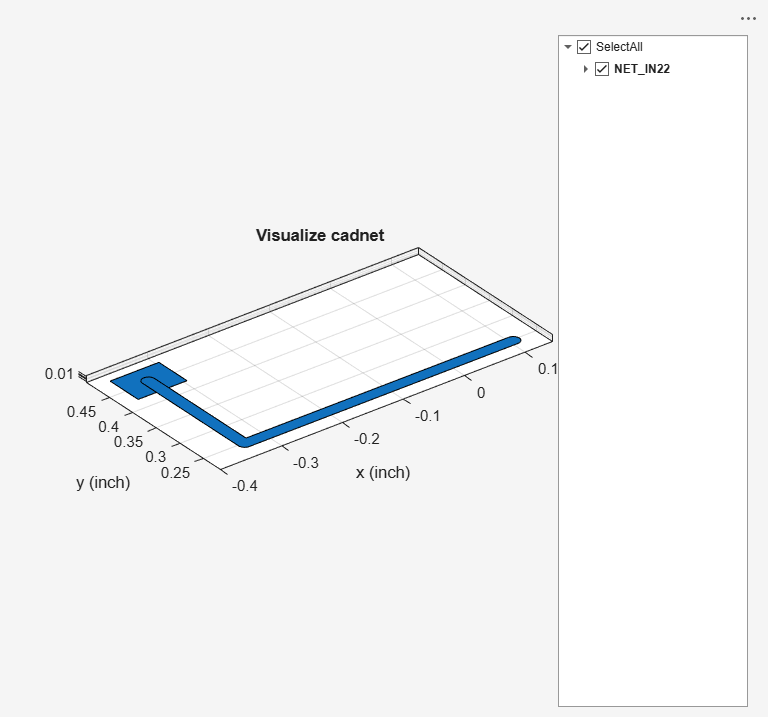

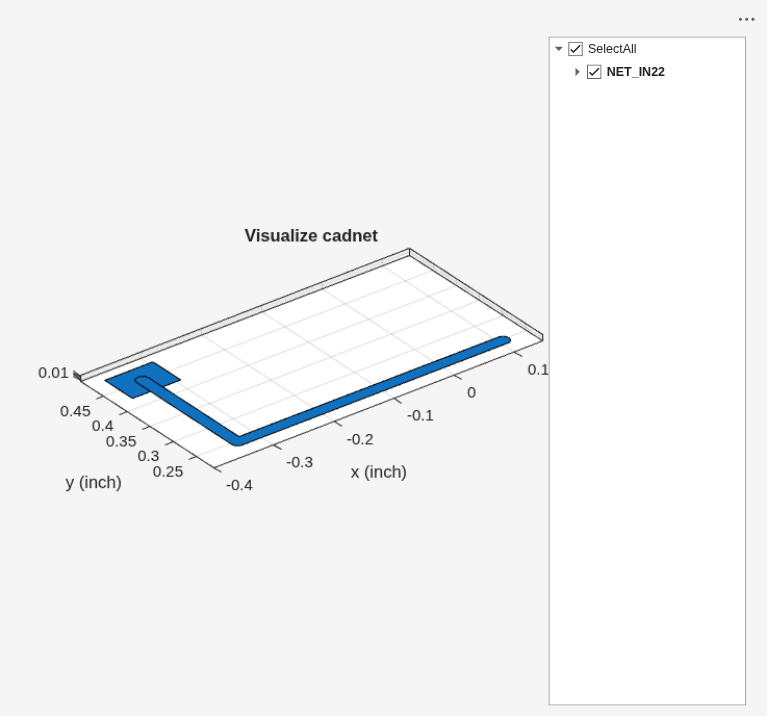

show(cadnetobj) shows single or multiplecadnet objects .

show(cadnetobj,ColorByIndividual = 'Cadnet') displays a cadnet object with specified color choice.

Input Arguments

cadnetobj — cadnet

object

The input cadnet object specified as a string,

Example: show(cadnetname)

Data Types: string

ColorByIndividual — Color

'Layer' | 'Cadnet'

Optional choice for color display.

• If ColorByIndividual is 'Layer' the entities in a common layer will be assigned by color.

• If ColorByIndividual is 'Cadnet' all of the entities of the cadnet would be colored.

Example: show(cadnetname,Type='Cadnet')

Data Types: string

Version History

Introduced in R2025a
