meshconfig

Change mesh mode of PCB component or shape structure

Since R2021b

collapse all in page

Syntax

meshconfig(rfpcbobject,mode)
meshconfig(shape,mode)
m = meshconfig(___,mode)

Description

meshconfig(rfpcbobject,mode) changes the meshing mode of the PCB component according to the text input mode.

meshconfig(shape,mode) changes the meshing mode of the PCB shape according to the text input mode.

example

m = meshconfig(___,mode) returns the mesh structure after changing the meshing mode of the PCB component or shape according to the text input mode.

Examples

collapse all

Open Live Script

Create a curved bend shape of lengths of 10 m and 2 m, width of 2 m, and rotate it about the Z-axis by 60 degrees.

bend = bendCurved(Length=[10 2],Width=[2 2],CurveRadius=1)
bend =
  bendCurved with properties:

              Name: 'myCurvedbend'
    ReferencePoint: [0 0]
            Length: [10 2]
             Width: [2 2]
       CurveRadius: 1


bend = rotateZ(bend,60);
show(bend)

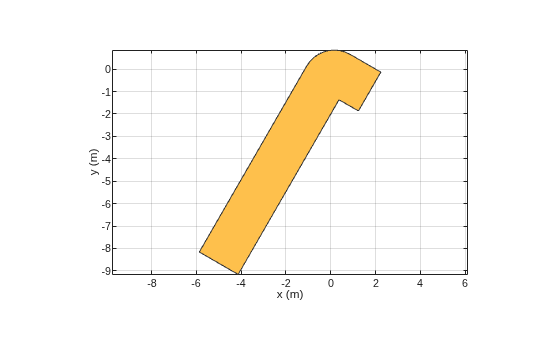

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 2 objects of type patch. These objects represent PEC, myCurvedbend.

Mesh the curved bend shape at a maximum edge length of 1 m.

meshconfig(bend,"manual")
ans = struct with fields:
     NumTriangles: 0
    NumTetrahedra: 0
         NumBasis: []
    MaxEdgeLength: []
    MinEdgeLength: []
       GrowthRate: []
         MeshMode: 'manual'


mesh(bend,MaxEdgeLength=1)

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains an object of type patch.

Input Arguments

collapse all

PCB component object, specified as an RF PCB object. For a complete list of the PCB components, see PCB Components Catalog.

Shape created using custom elements and shape objects, specified as an object handle. For a complete list of the custom shapes, see Custom Geometry and PCB Fabrication.

Example: c = bendCurved; mesh(c)

Meshing mode, specified as 'auto' or 'manual'.

Data Types: char

Version History

Introduced in R2021b
