ringSquare

Create square ring on X-Y plane

Since R2021b

Description

Use the ringSquare object to create a square ring on the X-Y plane.

Creation

Syntax

ring = ringSquare

ring = ringSquare(Name=Value)

Description

ring = ringSquare creates a square ring on the X-Y plane.

ring = ringSquare(Name=Value) sets Properties using one or more name-value arguments. For example, ringSquare(Center=[1 1]) creates an square ring shape centered at [1 1]. Properties not specified retain their default values.

Properties

Name — Name of square ring

'myringSquare' (default) | character vector | string scalar

Name of square ring, specified as a character vector or string scalar.

Example: ring = ringSquare(Name='ringsquare1')

Data Types: char | string

Center — Center of square ring

[0 0] (default) | two-element vector

Center of the square ring in Cartesian coordinates, specified as a two-element vector.

Example: ring = ringAnnular(Center=[1 1])

Data Types: double

InnerSide — Length of inner side

0.0050 (default) | positive scalar

Length of the inner side, specified as a positive scalar in meters.

Example: ring = ringSquare(InnerSide=0.0060)

Data Types: double

Width — Width of square ring

0.0020 (default) | positive scalar

Width of the square ring, specified as a positive scalar in meters.

Example: ring = ringSquare(Width=0.0030)

Data Types: double

Object Functions

add	Boolean unite operation on two RF PCB shapes
and	Shape1 & Shape2 for RF PCB shapes
area	Calculate area of RF PCB shape in square meters
intersect	Boolean intersection operation on two RF PCB shapes
mesh	Change and view mesh properties of metal or dielectric in PCB component
minus	Shape1 - Shape2 for RF PCB shapes
mirrorX	Mirror shape along X-axis
mirrorY	Mirror shape along Y-axis
plus	Shape1 + Shape2 for RF PCB shapes
rotate	Rotate RF PCB shape about defined axis
rotateX	Rotate RF PCB shape about x-axis
rotateY	Rotate RF PCB shape about y-axis and angle
rotateZ	Rotate RF PCB shape about z-axis
subtract	Boolean subtraction operation on two RF PCB shapes
scale	Change size of RF PCB shape by fixed amount
show	Display PCB component structure or PCB shape
translate	Move RF PCB shape to new location

Examples

Create Default Square Ring Shape

Create a square ring with default properties.

ring = ringSquare

ring =
  ringSquare with properties:

         Name: 'myringSquare'
       Center: [0 0]
        Width: 0.0020
    InnerSide: 0.0050

View the shape.

show(ring)

Mesh Square Ring Shape

Create a square ring with the inner side length of 5 m and a width of 2 m.

ring = ringSquare(InnerSide=5,Width=2)

ring =
  ringSquare with properties:

         Name: 'myringSquare'
       Center: [0 0]
        Width: 2
    InnerSide: 5

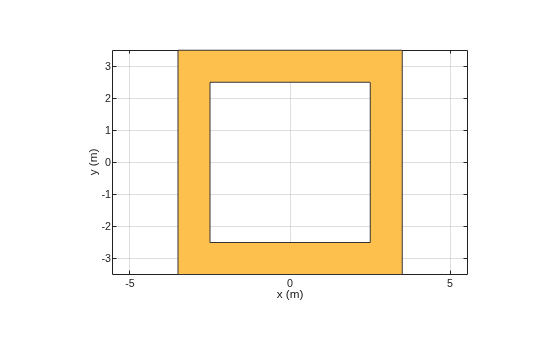

show(ring)

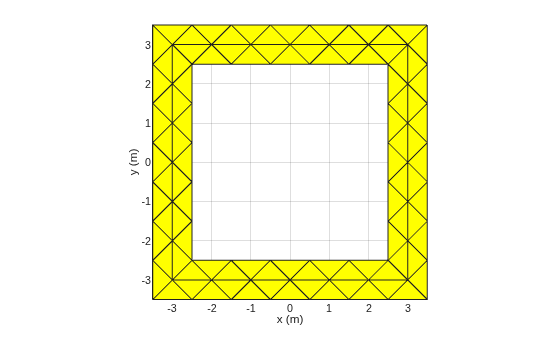

Mesh the square ring at a maximum edge length of 1 m.

mesh(ring,MaxEdgeLength=1)

Version History

Introduced in R2021b
