design

Design wideband Wilkinson splitter around specified frequency

Since R2022a

collapse all in page

Syntax

wsplitter = design(wsplitterobj,frequency)
wsplitter = design(___,Name=Value)

Description

wsplitter = design(wsplitterobj,frequency) designs a wideband Wilkinson splitter around the specified frequency.

wsplitter = design(___,Name=Value) designs a wideband Wilkinson splitter with additional options specified using name-value arguments.

Note

PCB components designed using the design function operate around the specified frequency with a 10-15% tolerance.

example

Examples

collapse all

Open Live Script

Design a wideband Wilkinson splitter at 1.8 GHz and with a Z0 of 75 ohm.

wsplitter = design(wilkinsonSplitterWideband,1.8e9,Z0=75);

View the splitter.

figure;
show(wsplitter);

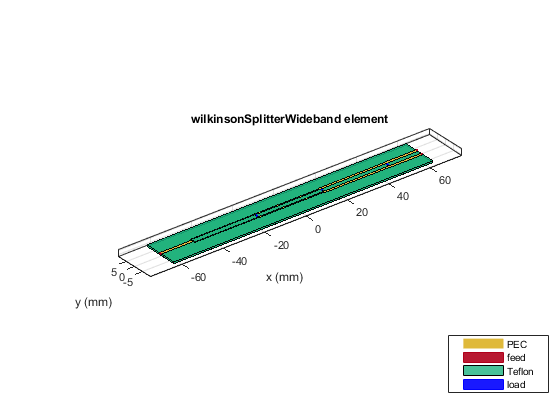

Figure contains an axes object. The axes object with title wilkinsonSplitterWideband element, xlabel x (mm), ylabel y (mm) contains 10 objects of type patch, surface. These objects represent PEC, feed, Teflon, load.

Input Arguments

collapse all

Wideband Wilkinson splitter, specified as a wilkinsonSplitterWideband object.

Example: wsplitterobj = wilkinsonSplitterWideband; design(wsplitterobj,2e9) designs a wideband Wilkinson splitter around a frequency of 2 GHz.

Design frequency of the wideband Wilkinson splitter, specified as a real positive scalar in hertz.

Example: 55e6

Data Types: double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: Z0=60

Characteristic impedance of the splitter, specified as a positive scalar in ohms.

Data Types: double

Output Arguments

collapse all

Wideband Wilkinson splitter operating around the specified frequency, returned as a wilkinsonSplitterWideband object.

Version History

Introduced in R2022a
