hankelsv

Compute Hankel singular values for stable/unstable or continuous/discrete system

Syntax

[sv_stab,sv_unstab] = hankelsv(G,ErrorType,style)
hankelsv(G)
hankelsv(G,ErrorType,style)

Description

[sv_stab,sv_unstab] = hankelsv(G,ErrorType,style) returns a column vector SV_STAB containing the Hankel singular values of the stable part of G and SV_UNSTAB of anti-stable part (if it exists). The Hankel SV's of anti-stable part ss(a,b,c,d) is computed internally via ss(-a,-b,c,d). Discrete model is converted to continuous one via the bilinear transform.

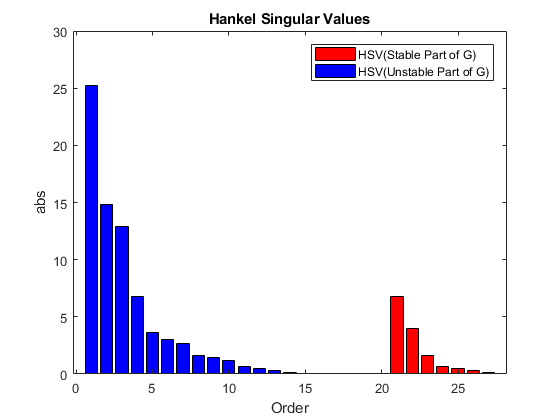

hankelsv(G) with no output arguments draws a bar graph of the Hankel singular values such as the following: To generate the bar graph with specified error type and style, use hankelsv(G,ErrorType,style). This table describes optional input arguments for hankelsvd.

Argument

Value

Description

ERRORTYPE

'mult'

'ncf'

Regular Hankel SV's of G

Hankel SV's of phase matrix

Hankel SV's of coprime factors

STYLE

'abs'

'log'

Absolute value

logarithm scale

Algorithms

If ErrorType = 'add', then hankelsv implements the numerically robust square root method to compute the Hankel singular values . Its algorithm goes as follows:

Given a stable model G, with controllability and observability grammians P and Q, compute the SVD of P and Q:

[Up,Sp,Vp] = svd(P);
[Uq,Sq,Vq] = svd(Q);

Then form the square roots of the grammians:

Lr = Up*diag(sqrt(diag(Sp)));
Lo = Uq*diag(sqrt(diag(Sq)));

The Hankel singular values are simply:

σH =svd(Lo'*Lr);

This method takes advantage of the robust SVD algorithm and ensures the computations stay well within the square root of the machine accuracy.

If ErrorType = 'mult', then hankelsv computes the Hankel singular value of the phase matrix of G .

If ErrorType = 'ncf', then hankelsv computes the Hankel singular value of the normalized coprime factor pair of the model .

References

 Safonov, M.G., and R.Y. Chiang, “A Schur Method for Balanced Model Reduction,” IEEE Trans. on Automat. Contr., vol. AC-2, no. 7, July 1989, pp. 729-733.

 Safonov, M.G., and R.Y. Chiang, “Model Reduction for Robust Control: A Schur Relative Error Method,” International J. of Adaptive Control and Signal Processing, Vol. 2, pp. 259-272, 1988.

 Vidyasagar, M., Control System Synthesis - A Factorization Approach. London: The MIT Press, 1985.
