# campitch

Set or get pitch angle of camera for Satellite Scenario Viewer

## Syntax

``campitch(viewer,pitch)``
``outPitch = campitch(viewer,___)``

## Description

example

````campitch(viewer,pitch)` sets the pitch angle of the camera for the specified Satellite Scenario Viewer. Setting the pitch angle tilts the camera up or down about its y-axis.```
````outPitch = campitch(viewer,___)` returns the pitch angle of the camera. If the second input is `pitch`, then the function sets the output equal to the input pitch.```

## Examples

collapse all

Create a satellite scenario object.

`sc = satelliteScenario;`

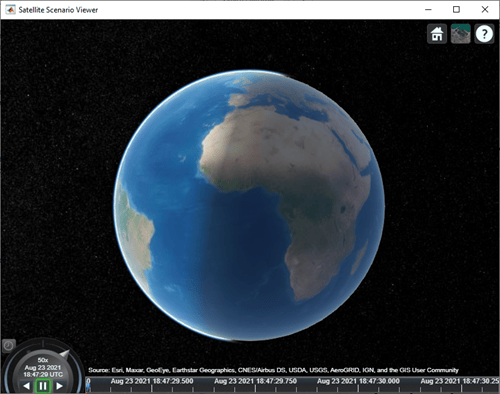

Launch the Satellite Scenario Viewer.

`v = satelliteScenarioViewer(sc);`

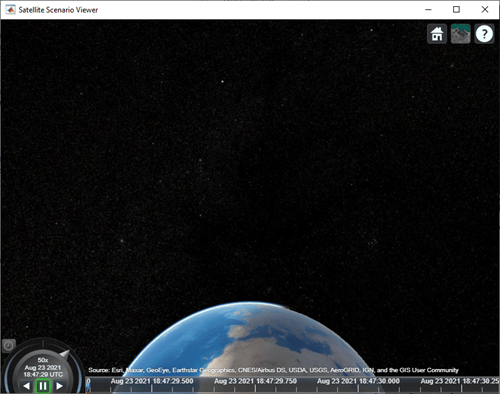

In the Satellite Scenario Viewer, set the pitch angle of the camera to $-$60 degrees.

```pitch = -60; % degrees campitch(v,pitch);```

## Input Arguments

collapse all

Satellite Scenario Viewer, specified as a scalar `satelliteScenarioViewer` object.1

Pitch angle of the camera in degrees, specified as a scalar in the range [–90, 90]. By default, the pitch angle is –90 degrees, which means that camera points directly toward the surface of the globe.

## Output Arguments

collapse all

Camera pitch angle in degrees, returned as a numeric scalar.

## Tips

• When the pitch angle is near –90 (the default value) or 90 degrees, the camera loses one rotational degree of freedom. As a result, when you change the roll angle, the heading angle might change instead. This phenomenon is called gimbal lock. To avoid the effects of gimbal lock, call the `camheading` function instead of the `camroll` function.

## Version History

Introduced in R2021a
