Interface with Simulink

Create models with time-based and event-based components, choose solvers, save simulation state

A SimEvents® model can coexist with time-based systems in a Simulink® model. The combination of time- and event-based modeling facilitates the simulation of large-scale sophisticated hybrid systems.

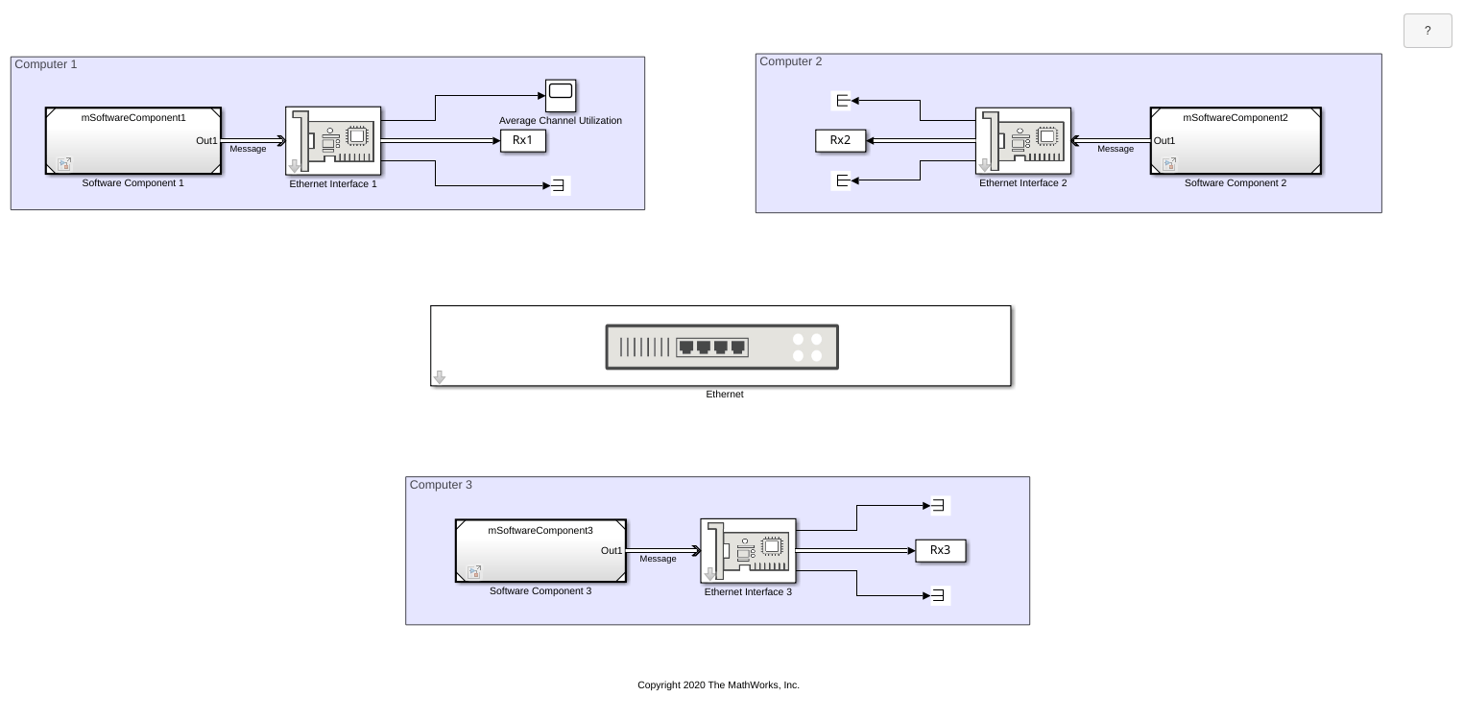

In a message-based communication framework, you can use Simulink messages to create the communication interface. By using message blocks, you can convert Simulink signals produced by an algorithm in a component to a message to be communicated to the network. You can generate code for the component including message interface. You can use SimEvents blocks to model and simulate custom communication patterns including routing, delays, and prioritization for communication between components.
