Interfaces compuestas

Agrupe las señales o los mensajes para reducir la complejidad del modelo en las interfaces de los componentes

Para reducir la complejidad del modelo, agrupe las señales individuales o los mensajes en líneas compuestas utilizando buses.

Los buses virtuales cumplen la mayoría de los requisitos de modelado de las interfaces compuestas y ofrecen la flexibilidad necesaria para combinar diferentes tipos de señales.

Para comparar las técnicas de modelado, consulte Composite Interface Guidelines.

Bloques

expandir todo

Puertos de elementos de bus

In Bus Element	Select input from external port
Out Bus Element	Specify output of external port

Buses

Bus Assignment	Assign new values to specified bus elements
Bus Creator	Group input signals or messages into bus
Bus Selector	Select elements from input bus

Señales no escalares

Demux	Extract and output elements of virtual vector signal
Mux	Combinar señales de entrada del mismo tipo de datos y complejidad en un vector virtual
Selector	Seleccionar elementos de entrada de un vector, una matriz o una señal multidimensional
Vector Concatenate	Concatenate input vectors of same data type for iterative processing
Matrix Concatenate	Concatenate input matrices of same data type for iterative processing

Conversión de señales

Bus to Vector	Convert virtual bus to vector
Signal Conversion	Convert signal to new type without altering signal values

Funciones

expandir todo

Puertos de elementos de bus

Simulink.Bus.addElementToPort Add element to input bus element port (desde R2022b)

Objetos Simulink.Bus

`getNumLeafBusElements`	Number of leaf elements in `Simulink.Bus` object
`getLeafBusElements`	Leaf elements in `Simulink.Bus` object
`Simulink.Bus`	Specify properties of buses
`Simulink.BusElement`	Specify properties of elements of buses
`Simulink.Bus.cellToObject`	Create `Simulink.Bus` objects from cell array of bus information
`Simulink.Bus.createObject`	Create `Simulink.Bus` objects from blocks or MATLAB structures
`Simulink.Bus.objectToCell`	Create cell array of bus information from `Simulink.Bus` objects
`Simulink.Bus.save`	Save `Simulink.Bus` object definitions in function

Estructuras de MATLAB a partir de buses

Simulink.Bus.createMATLABStruct Create MATLAB structures that use the same hierarchy and attributes as buses

Conversión de señales

Simulink.BlockDiagram.addBusToVector Convert virtual bus signals into vector signals by adding Bus to Vector blocks

Herramientas

Signal Hierarchy Viewer	View signal hierarchy and trace signal to source or destination
Type Editor	Create, modify, and manage types, such as bus objects

Ajustes de modelos

expandir todo

Diagnóstico de conectividad

Unspecified bus object at root Outport block	Diagnostic action to take when root Outport block of referenced model does not specify bus object for bus output
Element name mismatch	Diagnostic action to take when bus element name does not match corresponding bus element object name
Bus signal treated as vector	Diagnostic action to take when virtual bus is treated as vector
Non-bus signals treated as bus signals	Option to implicitly convert nonbus signals treated as buses into buses
Repair bus selections	Option to automatically repair broken selections caused by upstream bus hierarchy changes

Temas

Conceptos básicos de la interfaz compuesta

Composite Interface Guidelines

Combine signals, messages, or connections to simplify model appearance.
- PASO 1: Explore Composite Interfaces
- PASO 2: Compare Capabilities of Composite Interfaces
Bus-Capable Blocks
Identify the blocks that support virtual buses, nonvirtual buses, and arrays of buses.

Agrupar las líneas de forma visual

Group Signals or Messages into Virtual Buses
Create buses to reduce the number of lines in a block diagram.
Simplify Subsystem and Model Interfaces with Bus Element Ports
Group multiple lines into a bus at the input or output of a model component.
Display Bus Information
Display information about buses, such as signal hierarchy and whether the bus is virtual or nonvirtual.
Identify Automatic Bus Conversions
Recognize modeling patterns that cause hidden Bus To Vector and Signal Conversion blocks.
Programmatically Create Bus Element Ports
Add blocks for bus element ports and specify element attributes using MATLAB^® functions.

Modificar y configurar buses

Modify Bus Hierarchy
Change the order and hierarchy of nested buses and their elements.
Assign Signal Values to Bus Elements
Use a Bus Assignment block to replace signals assigned to bus elements.
Specify Initial Conditions for Bus Elements
Specify bus element values as initial conditions for buses.
Share and Reuse Bus-Routing Blocks
Share blocks that create or interact with buses using subsystem references or custom libraries.

Definir los tipos de datos de los objetos de bus

Specify Bus Properties with Bus Objects
Create a reusable bus definition to specify as a data type for a bus.
Crear objetos de bus de Simulink de forma programática
Use funciones para crear objetos Simulink.Bus a partir de otros objetos, bloques o datos de MATLAB.

Agrupar las líneas de manera funcional

Create Nonvirtual Buses
Create buses that appear in generated code and support modeling constructs such as arrays of buses.
Modify Sample Times for Nonvirtual Buses
Make the sample time of signals the same so that you can group them in a nonvirtual bus.
Generate Code for Nonvirtual Buses
Use a structure in code generation to represent a nonvirtual bus. Control data types of initial condition structure fields.
Inspect Generated Code for Nonvirtual Buses
Find nonvirtual buses in generated code for a simple model.

Simplificar el procesamiento iterativo

Group Nonvirtual Buses in Arrays of Buses
Streamline a model for iterative processing by combining nonvirtual buses that have the same data type into an array.

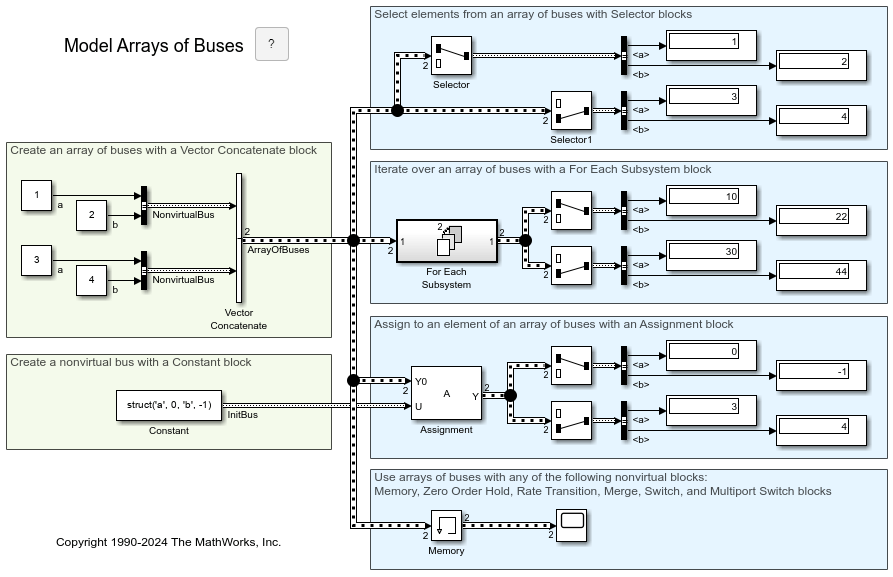

Work with Arrays of Buses
Set up your model to use an array of buses to select signals, assign values to a signal, perform iterative processing, log and load signals, and initialize signals.
Iteratively Process Nonvirtual Buses with Arrays of Buses
Update a model to use arrays of buses to apply the same algorithm to multiple nonvirtual buses with the same data type.
