Integrar código de Python en Simulink
Simulink permite implementar algoritmos diseñados con código de Python. Puede implementar módulos de Python en Simulink mediante el bloque MATLAB Function, el bloque MATLAB System o Python Importer. Para implementar algoritmos sencillos, utilice el bloque MATLAB Function. Para algoritmos que requieran manejo de dinámica de estados, datos en streaming y personalizaciones de bloques adicionales, utilice el bloque MATLAB System. Python Importer permite importar módulos de Python en Simulink generando bloques personalizados para funciones especificadas.
Para obtener más información sobre cómo usar Python en MATLAB®, consulte Llamar a Python desde MATLAB.
Bloques
| Python Code | Integrate native Python code into a Simulink model (Desde R2025a) |
Temas
- Overview of Integrating Python Code with Simulink
Integrate Python code with Simulink Using MATLAB Function block or MATLAB System block.
- Integrate Python Code into Simulink Using Python Code Block
Integrate native Python code, define interfaces and block algorithm, and run simulations in Simulink.
- Import Python Code to Simulink Using Python Importer Wizard
Use the Python Importer to Import Python Modules and Packages to Simulink.
Ejemplos destacados
Integrate Low Pass Filter Python Code into Simulink Using Python Code Block
Integrate Python Code into Simulink Using Python Code Block.
Integrate Python GPS Text Message Parsing Algorithms in Simulink
Parse text messages in NMEA GPS format using Simulink® string blocks and Python®. NMEA sentences are used for communication between marine devices, and the model in the example decodes RMB and RMC sentences in NMEA. RMB is the sentence for the recommended navigation data for GPS. RMC is the sentence for the recommended minimum data for GPS sentences.
Call Python Function Using MATLAB Function and MATLAB System Block
Call a Python® function in Simulink® that sorts random numbers using a Python® sorting function and two different blocks: the MATLAB Function block and MATLAB System block. For more on using Python in MATLAB®, see Acceder a módulos de Python desde MATLAB: introducción.

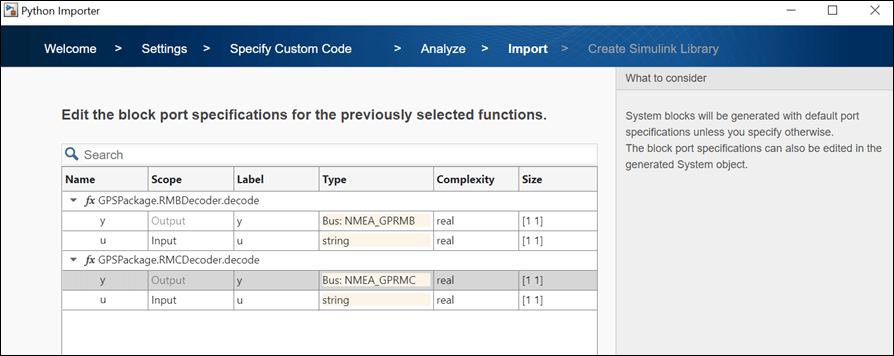

Integrate Python Packages to Parse NMEA GPS Messages Using Python Importer
Use Python® Importer to import a Python package containing algorithms to parse NMEA GPS messages into Simulink®.

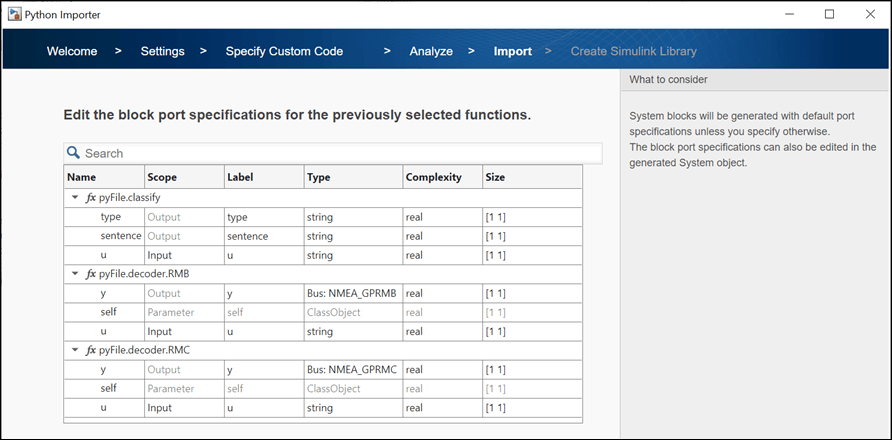

Integrate Python Functions Specified Within Classes Using Python Importer
Use Python® Importer to import Python functions specified within modules that contain class and function definitions that parse NMEA GPS messages into Simulink®.
