Model, simulate, and visualize automotive systems in 3D environment using Simulink^® 3D Animation™ and other MathWorks^® products

Simulink 3D Animation allows you to model and simulate a variety of automotive systems. You can model and simulate a vehicle in 3D environment, and develop control algorithms for automotive applications.

In addition, the following products extend the Simulink 3D Animation environment for automotive applications:

Vehicle Dynamics Blockset provides fully assembled reference application models that simulate driving maneuvers in a 3D environment. Vehicle Scenarios (Vehicle Dynamics Blockset) provides vehicle scenario configuration in Unreal Engine^® visualization environment for virtually testing perception, control, and planning algorithms.
Automated Driving Toolbox provides algorithms and tools for designing, simulating, and testing ADAS and autonomous driving systems. Unreal Engine Scenario Simulation (Automated Driving Toolbox) enables modeling and visualizing driving algorithms in customizable 3D environment.

Topics

3D Simulation for Vehicle Dynamics Blockset (Vehicle Dynamics Blockset)
Learn how to visualize vehicle performance in a 3D environment using the Unreal Engine from Epic Games^®.
Unreal Engine Simulation Environment Requirements and Limitations (Vehicle Dynamics Blockset)
When simulating in the Unreal Engine environment, keep these software requirements, minimum hardware requirements, and limitations in mind.
Customize 3D Scenes for Vehicle Dynamics Simulations (Vehicle Dynamics Blockset)
To customize scenes and vehicles, use the Vehicle Dynamics Blockset™ Interface for Unreal Engine Projects support package.
Get Started Communicating with the Unreal Engine Visualization Environment (Vehicle Dynamics Blockset)
Use the Simulation 3D Message Get and Simulation 3D Message Set blocks to communicate with the Unreal^® Editor.
Unreal Engine Simulation for Automated Driving (Automated Driving Toolbox)
Learn how to model driving algorithms in Simulink and visualize their performance in a virtual environment using the Unreal Engine from Epic Games.
Unreal Engine Simulation Environment Requirements and Limitations (Automated Driving Toolbox)
When simulating in the Unreal Engine environment, keep these software requirements, minimum hardware requirements, and limitations in mind.
Simulate Simple Driving Scenario and Sensor in Unreal Engine Environment (Automated Driving Toolbox)
Learn the basics of configuring and simulating scenes, vehicles, and sensors in a virtual environment rendered using the Unreal Engine from Epic Games.
Apply Labels to Unreal Scene Elements for Semantic Segmentation and Object Detection (Automated Driving Toolbox)
Apply labels to scene objects to obtain semantic segmentation data from camera sensors or detect custom objects from probabilistic sensors.

Featured Examples

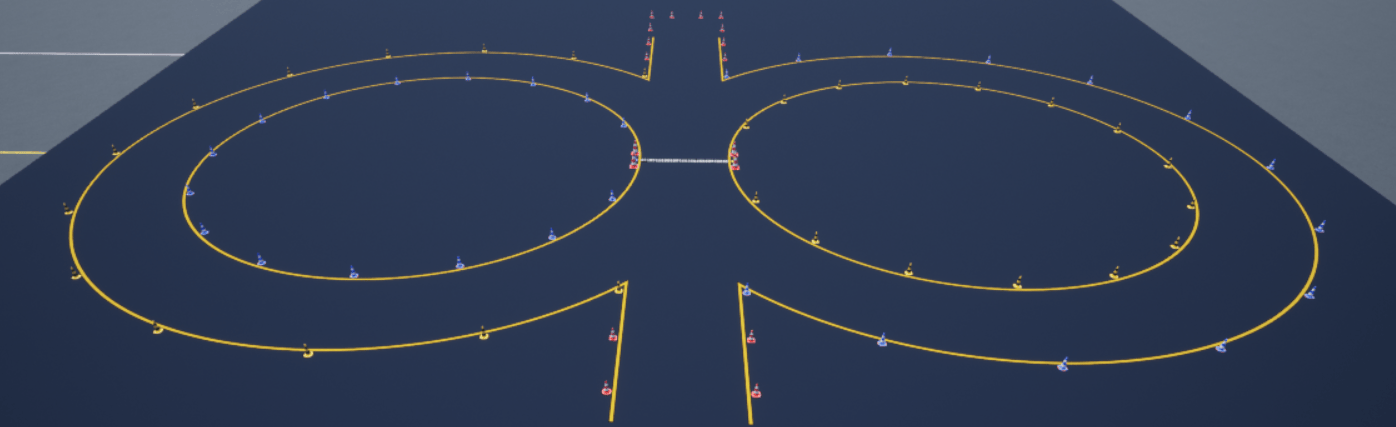

Place Cones on Formula Student Skidpad Track Using Simulation 3D Animation Functions

Place cones on a Skidpad track using Simulation 3D Animation Functions.

(Vehicle Dynamics Blockset)

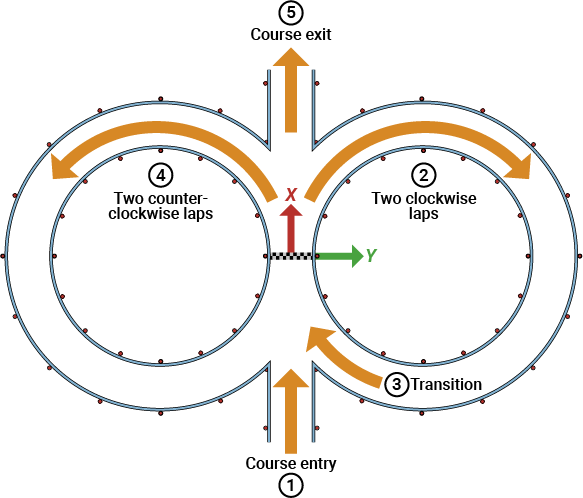

Generate Skidpad Test

Generate skidpad tests for student competitions. View simulation in 3D environment.

(Vehicle Dynamics Blockset)

Scene Interrogation with Camera and Ray Tracing Reference Application

Interrogate a 3D Unreal Engine scene with a vehicle dynamics model by using a camera and ray tracing reference application project.

(Vehicle Dynamics Blockset)

Design Lane Marker Detector Using Unreal Engine Simulation Environment

Use the Unreal Engine simulation environment to record synthetic sensor data and develop and test a lane marker detection system.

(Automated Driving Toolbox)

Visualize Automated Parking Valet Using Unreal Engine Simulation

Visualize vehicle motion in Unreal Engine using a parking valet system constructed in Simulink.

(Automated Driving Toolbox)

Design Lidar SLAM Algorithm Using Unreal Engine Simulation Environment

Develop a simultaneous localization and mapping algorithm using synthetic lidar sensor data recorded from the Unreal Engine simulation environment.

(Automated Driving Toolbox)
