generateMotorDriveROM
Syntax
Description
The generateMotorDriveROM function takes a motor drive
subsystem and creates a reduced-order model (ROM) in the form of a Motor &
Drive (System Level) block and parameterizes it with tabulated maximum
torque in function of rotor speed and DC voltage, and tabulated power dissipated in function
of rotor speed, shaft torque, and DC voltage.
The model-order reduction transforms a high-fidelity, computationally expensive model into an equivalent model that is easier to interpret and runs faster. This model is called a reduced-order model. A ROM captures the steady-state behavior of a motor drive in terms of energy balance and maximum torque capability. A ROM can also accurately capture the first-order response to changes in torque demand.
You can use the ROM to run faster simulations, by replacing the original motor drive subsystem with the generated ROM subsystem. ROMs enable you to quickly test and analyze system-level scenarios where the motor drive interacts with other systems.
generateMotorDriveROM( generates an
equivalent energy-based model from the electric motor drive subsystem
sys)sys.
generateMotorDriveROM(
specifies options using one or more name-value arguments in addition to the input argument
in previous syntaxes. For example, for a nominal DC supply voltage equal to 500 V, set
sys,Name=Value)NominalDCVoltage to 500.
ROMParameters = generateMotorDriveROM(sys,Name=Value)
Examples
This example shows how to generate the reduced order model (ROM) of a PMSM motor drive subsystem.
Open Model
Open the PMSMMotorDrive.slx model.
open_system("PMSMMotorDrive")
The PMSMDrive subsystem comprises a detailed motor drive model with a converter, a motor, sensors, and a torque control loop. This motor drive has a nominal DC voltage of 486 V, a maximum shaft speed of 4000 RPM, and a rated torque of 90 Nm.
Ensure that the subsystem has the correct port names and port types. The subsystem must follow these rules:
The ports of the subsystem must match the ports of the Motor & Drive (System Level) block: +, -, R, C, and a Simulink input port for the torque reference, in Nm.
The subsystem must be able to follow the torque reference dynamically for all torque values below the maximum torque you designed the drive for.
The initial state must be such that the torque is zero.
Generate ROM
Run the generateMotorDriveROM function to generate the ROM of the PMSMDrive subsystem and set these options:
The drive operates as a motor (positive speed, positive torque).
Based on the motor drive specifications, the nominal DC voltage is 486 V, the maximum speed is 4000 rpm, and the nominal torque is 90 Nm.
For a good balance between ROM accuracy and computational cost to generate the ROM, choose a grid of 12 speed breakpoints, 40 torque breakpoints, and three DC voltage breakpoints. Set the DC voltage breakpoints to 80%, 90%, and 100% of the nominal voltage. If you require more accuracy, reduce the ROM interpolation error by increasing the number of breakpoints to specify a grid with higher resolution. However, a higher number of breakpoints increases the computational cost to generate the ROM.
To run simulations in parallel, set
UseParalleltotrue.

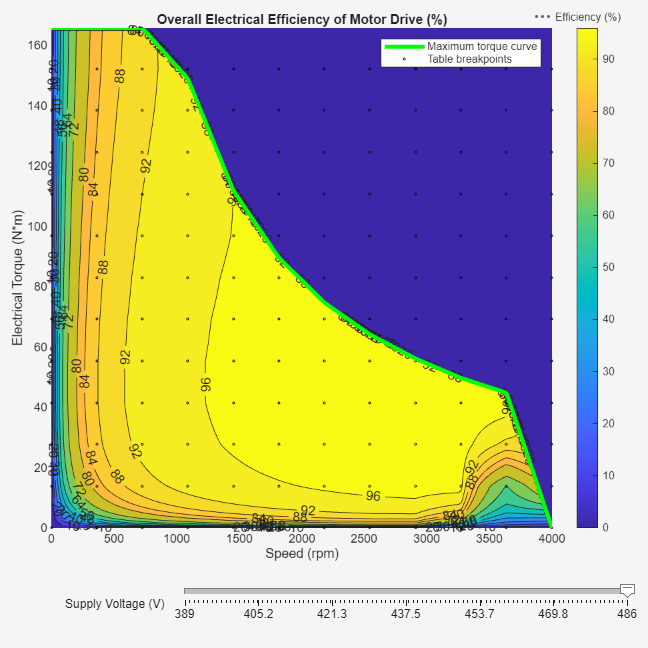

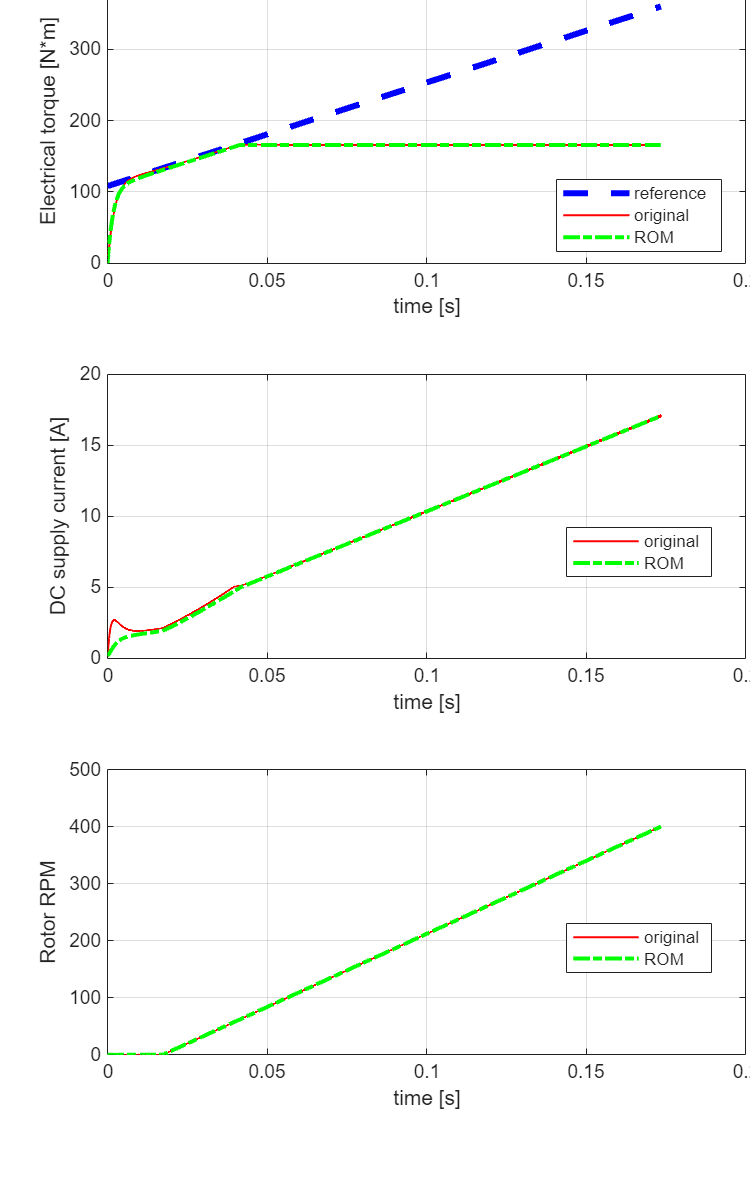

generateMotorDriveROM("PMSMMotorDrive/PMSMDrive", ... OperatingMode="motor", ... NominalDCVoltage=486, ... MaxRotorRPM=4000, ... NominalTorque=90, ... NumRPMBreakpoints=12, ... NumTorqueBreakpoints=40, ... PerUnitDCVoltageBreakpoints=[0.8, 0.9, 1.0], ... UseParallel=true);
Input Arguments
Name-Value Arguments
Output Arguments
Limitations
The generated ROM does not include high-order dynamics, including torque ripple and vibrations, or power switching dynamics. If your model must represent these high-order dynamic behaviors, do not replace the original system.
Algorithms
The generateMotorDriveROM function runs simulations to calculate the
parameters that define the motor drive system ROM. The function follows these steps:
Compute the torque-tracking time constant — The function simulates a step response from 0 Nm to the nominal torque value specified by the
NominalTorqueargument and at the nominal DC supply voltage, specified in theNominalDCVoltagewhile keeping the rotor speed constant at 10% of the maximum speed. The function fits the response to a first-order response to compute the torque-tracking time constant.Find the maximum torque at zero speed — The function simulates a ramp reference torque response with increasingly higher slopes until the motor drive is unable to keep up with the demand and detaches from the reference. The function uses the value of the
NominalTorqueargument as a first guess for this iterative search algorithm. This maximum torque value determines the torque breakpoints for the power losses lookup table.Compute maximum torque-speed envelopes and power losses at the table lookup breakpoints — The function runs a simulation for each speed and voltage breakpoint. The simulation consists of a ramp reference torque response with a slowly increasing torque reference from 0 Nm to the maximum torque value.
Version History
Introduced in R2024a
