# plotComparisons

Interactive plot of multiple comparisons of means for analysis of variance (ANOVA)

Since R2022b

## Syntax

``plotComparisons(aov)``
``plotComparisons(aov,factors)``
``plotComparisons(ax,___)``
``plotComparisons(___,Name=Value)``
``f = plotComparisons(___)``

## Description

example

````plotComparisons(aov)` creates an interactive plot of the mean responses for each value of the factor in a one-way `anova` object with comparison intervals.To a close approximation, the difference between two mean estimates is statistically significant if their comparison intervals are disjoint, and is not statistically significant if their comparison intervals overlap. You can click an estimate to display its mean and comparison interval in blue, statistically different means and comparison intervals in red, and statistically similar means and comparison intervals in gray.```
````plotComparisons(aov,factors)` groups the response data by the values of the factors listed in `factors` for a one-, two-, or N-way ANOVA.```
````plotComparisons(ax,___)` plots into the axes `ax` using any of the input argument combinations in the previous syntaxes.```
````plotComparisons(___,Name=Value)` specifies additional options using one or more name-value arguments. For example, you can specify the confidence level for the bounds of the comparison interval. ```
````f = plotComparisons(___)` returns a `Figure` object `f`. Use `f` to query or modify properties of the figure after it is created.```

## Examples

collapse all

`load popcorn.mat`

The columns of the 6-by-3 matrix `popcorn` contain popcorn yield observations in cups for the brands Gourmet, National, and Generic, respectively.

Perform a one-way ANOVA to test the null hypothesis that the mean yields are the same across the three brands. Use the function `repmat` to create a string vector containing factor values for the brand.

```factors = [repmat("Gourmet",6,1); repmat("National",6,1); repmat("Generic",6,1)]; aov = anova(factors,popcorn(:),"FactorNames","Brand")```
```aov = 1-way anova, constrained (Type III) sums of squares. Y ~ 1 + Brand SumOfSquares DF MeanSquares F pValue ____________ __ ___________ ____ __________ Brand 15.75 2 7.875 18.9 7.9603e-05 Error 6.25 15 0.41667 Total 22 17 Properties, Methods ```

`aov` is an `anova` object that contains the results of the one-way ANOVA.

The small p-value for `Brand` indicates that the null hypothesis can be rejected at the 99% confidence level. Enough evidence exists to conclude that at least one brand has a statistically significant difference in mean popcorn yield. You can view this difference by plotting the group means with comparison intervals.

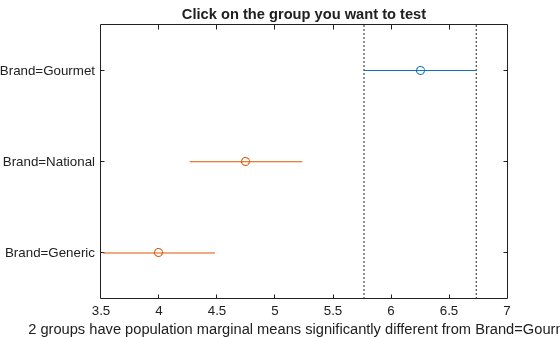

`plotComparisons(aov);` The figure shows the `Gourmet` comparison interval in blue and the comparison intervals of `National` and `Generic` in red. The colors indicate that `Gourmet` is statistically different from `Generic` and `National`.

Click on the mean of `Generic`. The plot now shows the `Generic` comparison interval in blue, the `National` comparison interval in gray, and the `Gourmet` comparison interval in red. The colors indicate that the difference in the mean popcorn yields of `Generic` and `National` is not statistically significant. ## Input Arguments

collapse all

Analysis of variance results, specified as an `anova` object. The properties of `aov` contain the factors and response data used by `plotComparisons` to compute the difference in means.

Factors used to group the response data, specified as a string vector or cell array of character vectors. The `plotComparisons` function groups the response data by the combinations of values for the factors in `factors`. The `factors` argument must be one or more of the names in `aov.FactorNames`.

Example: `["g1","g2"]`

Data Types: `string` | `cell`

Target axes, specified as an `Axes` object. If you do not specify the axes, then `plotComparisons` uses the current axes (`gca`).

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: `Alpha=0.01,CriticalValueType="dunnett",Approximate=true` sets the significance level of the confidence intervals to 0.01 and uses an approximation of Dunnett's critical value to calculate the p-values for the null hypothesis that group means are not significantly different.

Significance level for the comparison intervals, specified as a single or double between 0 and 1. The confidence level of the comparison intervals is the probability that the difference between two mean estimates with overlapping intervals is not statistically significant. The value of `Alpha` is given by the formula $100\left(1-\alpha \right)%$. The default value for `Alpha` is 0.05.

Example: `Alpha=0.01`

Data Types: `single` | `double`

Critical value type used by the `plotComparisons` function to calculate p-values, specified as one of the options in the following table. Each option specifies the statistical test that `plotComparisons` uses to calculate the critical value.

OptionStatistical Test
`"tukey-kramer"` (default)Tukey-Kramer test
`"hsd"`Honestly Significant Difference test — Same as `"tukey-kramer"`
`"dunn-sidak"`Dunn-Sidak correction
`"bonferroni"`Bonferroni correction
`"scheffe"`Scheffe test
`"dunnett"`Dunnett's test — Can be used only when `aov` is a one-way `anova` object or when a single factor is specified in `factors`. For Dunnett's test, the control group is selected in the generated plot and cannot be changed.
`"lsd"`Stands for Least Significant Difference and uses the critical value for a plain t-test. This option does not protect against the multiple comparisons problem unless it follows a preliminary overall test such as an F-test.

Example: `CriticalValueType="dunn-sidak"`

Data Types: `char` | `string`

Indicator to compute the Dunnett critical value approximately, specified as a numeric or logical `1` (`true`) or `0` (`false`). You can compute the Dunnett critical value approximately for speed. The default for `Approximate` is `true` for an N-way ANOVA with N greater than two, and `false` otherwise. This argument is valid only when `CriticalValueType` is `"dunnett"`.

Example: `Approximate=true`

Data Types: `logical`

Index of the control group factor value for Dunnett's test, specified as a positive integer. Factor values are indexed by the order in which they appear in `aov.ExpandedFactorNames`. This argument is valid only when `CriticalValueType` is `"dunnett"`.

Example: `ControlGroup=3`

Data Types: `single` | `double`

## Output Arguments

collapse all

Target figure, returned as a `Figure` object. Use `f` to query or modify properties of the figure after it is created. For a full list of figure properties, see Figure Properties.

 Hochberg, Y., and A. C. Tamhane. Multiple Comparison Procedures. Hoboken, NJ: John Wiley & Sons, 1987.

 Milliken, G. A., and D. E. Johnson. Analysis of Messy Data, Volume I: Designed Experiments. Boca Raton, FL: Chapman & Hall/CRC Press, 1992.

 Searle, S. R., F. M. Speed, and G. A. Milliken. “Population marginal means in the linear model: an alternative to least-squares means.” American Statistician. 1980, pp. 216–221.

 Dunnett, Charles W. “A Multiple Comparison Procedure for Comparing Several Treatments with a Control.” Journal of the American Statistical Association, vol. 50, no. 272, Dec. 1955, pp. 1096–121.

 Krishnaiah, Paruchuri R., and J. V. Armitage. "Tables for multivariate t distribution." Sankhyā: The Indian Journal of Statistics, Series B (1966): 31-56.
