Label new data using semi-supervised self-trained classifier
Use both labeled and unlabeled data to train a
SemiSupervisedSelfTrainingModel object. Label new data using the trained model.
Randomly generate 15 observations of labeled data, with 5 observations in each of three classes.
rng('default') % For reproducibility labeledX = [randn(5,2)*0.25 + ones(5,2); randn(5,2)*0.25 - ones(5,2); randn(5,2)*0.5]; Y = [ones(5,1); ones(5,1)*2; ones(5,1)*3];
Randomly generate 300 additional observations of unlabeled data, with 100 observations per class.
unlabeledX = [randn(100,2)*0.25 + ones(100,2); randn(100,2)*0.25 - ones(100,2); randn(100,2)*0.5];
Fit labels to the unlabeled data by using a semi-supervised self-training method. The function
fitsemiself returns a
SemiSupervisedSelfTrainingModel object whose
FittedLabels property contains the fitted labels for the unlabeled data and whose
LabelScores property contains the associated label scores.
Mdl = fitsemiself(labeledX,Y,unlabeledX)
Mdl = SemiSupervisedSelfTrainingModel with properties: FittedLabels: [300x1 double] LabelScores: [300x3 double] ClassNames: [1 2 3] ResponseName: 'Y' CategoricalPredictors:  Learner: [1x1 classreg.learning.classif.CompactClassificationECOC] Properties, Methods
Randomly generate 150 observations of new data, with 50 observations per class. For the purposes of validation, keep track of the true labels for the new data.
newX = [randn(50,2)*0.25 + ones(50,2); randn(50,2)*0.25 - ones(50,2); randn(50,2)*0.5]; trueLabels = [ones(50,1); ones(50,1)*2; ones(50,1)*3];
Predict the labels for the new data by using the
predict function of the
SemiSupervisedSelfTrainingModel object. Compare the true labels to the predicted labels by using a confusion matrix.

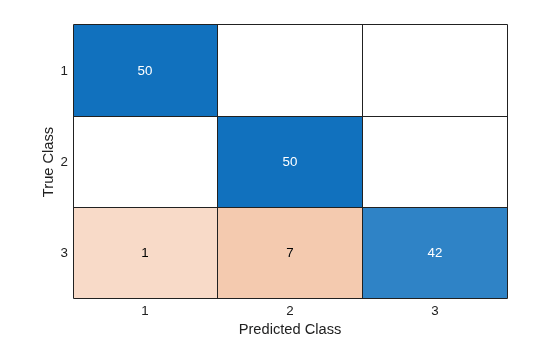

predictedLabels = predict(Mdl,newX); confusionchart(trueLabels,predictedLabels)
Only 8 of the 150 observations in
newX are mislabeled.
Mdl— Semi-supervised self-training classifier
Semi-supervised self-training classifier, specified as a
SemiSupervisedSelfTrainingModel object returned by
X— Predictor data to be classified
Predictor data to be classified, specified as a numeric matrix or table. Each row of
X corresponds to one observation, and each column corresponds to
If you trained
Mdl using matrix data (
UnlabeledX in the call to
X as a numeric matrix.
The variables in the columns of
X must have the same
order as the predictor variables that trained
The software treats the predictors in
X whose indices
Mdl.CategoricalPredictors as categorical
If you trained
Mdl using tabular data (
UnlabeledTbl in the call to
X as a table.
All predictor variables in
X must have the same variable
names and data types as those that trained
Mdl (stored in
Mdl.PredictorNames). However, the column order of
X does not need to correspond to the column order of
can contain additional variables (for example, response variables), but
predict ignores them.
predict does not support multicolumn variables or cell
arrays other than cell arrays of character vectors.
label— Predicted class labels
Predicted class labels, returned as a categorical or character array, logical or
numeric vector, or cell array of character vectors.
label has the
same data type as the fitted class labels
Mdl.FittedLabels, and its
length is equal to the number of rows in
score— Predicted class scores
Predicted class scores, returned as a numeric matrix.
size m-by-K, where m is the
number of observations (or rows) in
X and K is
the number of classes in
score(m,k) is the likelihood that observation
X belongs to class
where a higher score value indicates a higher likelihood. The range of score values
depends on the underlying classifier
