meyeraux

Meyer wavelet auxiliary function

Syntax

Y = meyeraux(X)

Description

Y = meyeraux(X) returns values of the auxiliary function used for Meyer wavelet generation evaluated at the elements of X. The input X is a vector or matrix of real values. The function is

$y = 35 x^{4} - 84 x^{5} + 70 x^{6} - 20 x^{7} .$

X and Y have the same dimensions. The range of meyeraux is the closed interval [0, 1].

example

Examples

collapse all

Plot Meyer Auxiliary Function

Open Live Script

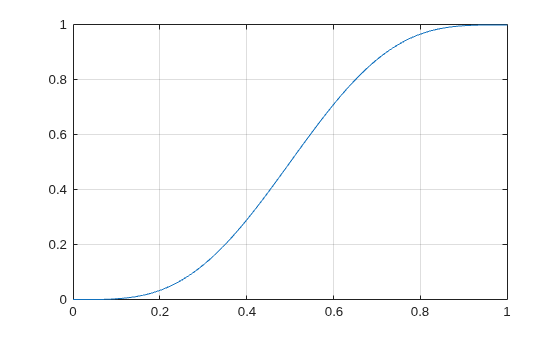

Plot the Meyer auxiliary function.

x = linspace(0,1,100);
y = meyeraux(x);
plot(x,y)
grid on

Figure contains an axes object. The axes object contains an object of type line.

Input Arguments

collapse all

`X` — Sample points
real-valued vector | real-valued matrix

Sample points at which to evaluate the Meyer auxiliary function, specified as a vector or matrix of real values.

Data Types: single | double

Extended Capabilities

expand all

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced before R2006a
