Waveform Generation

Open Live Script

This example shows how to generate standards-compliant WLAN waveforms. The IEEE® 802.11™ standards define a physical layer protocol data unit (PPDU) as the transmission unit at the physical layer. For a detailed description of the PPDU field structures for each transmission format, see WLAN PPDU Structure.

Generate WLAN Waveforms

Generate EHT MU Waveform

Specify information bits to transmit.

bits = [1 0 0 1 1];

Parameterize the transmission by creating an extremely high-throughput multi-user (EHT MU) configuration object with a channel bandwidth of 320 MHz.

cfgEHTMU = wlanEHTMUConfig("CBW320");

Specify an oversampling factor for fast-Fourier-transform-based oversampling.

osf = 2;

Generate an EHT MU waveform, as defined in [1], for the specified bits and transmission parameters. The waveform comprises four packets with 15 microseconds of idle time between them.

waveformEHTMU = wlanWaveformGenerator(bits,cfgEHTMU, ...
    NumPackets=4,IdleTime=15e-6, ...
    OversamplingFactor=osf);

Plot the EHT MU waveform, scaling the x-axis relative to the channel bandwidth.

fsEHTMU = wlanSampleRate(cfgEHTMU.ChannelBandwidth);
time = (0:length(waveformEHTMU)-1)/fsEHTMU;
plot(time,abs(waveformEHTMU))
xlabel ("Time (seconds)")
ylabel("Magnitude")

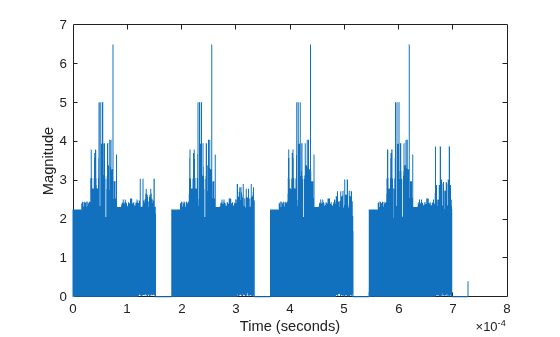

Figure contains an axes object. The axes object with xlabel Time (seconds), ylabel Magnitude contains an object of type line.

Generate HE MU Waveform

Parameterize the transmission by creating an HE multi-user (HE MU) configuration object.

cfgHEMU = wlanHEMUConfig(192);

Generate an HE MU waveform, as defined in [2], comprising three packets with 30 microseconds of idle time between packets for the specified bits and transmission parameters.

waveformHEMU = wlanWaveformGenerator(bits,cfgHEMU, ...
    NumPackets=3,IdleTime=30e-6);

Plot the HE MU waveform, scaling the x-axis relative to the channel bandwidth.

fsHEMU = wlanSampleRate(cfgHEMU.ChannelBandwidth);
time = (0:length(waveformHEMU)-1)/fsHEMU;
plot(time,abs(waveformHEMU))
xlabel ("Time (seconds)")
ylabel("Magnitude")

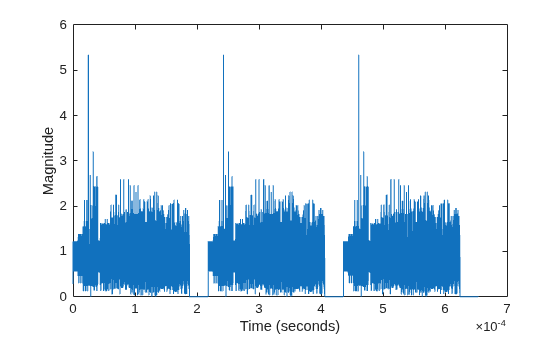

Figure contains an axes object. The axes object with xlabel Time (seconds), ylabel Magnitude contains an object of type line.

Generate WUR Waveform

Parameterize the transmission by creating a wake-up radio (WUR) configuration object.

cfgWUR = wlanWURConfig(ChannelBandwidth="CBW40",NumUsers=2);

Generate a single-packet WUR waveform, as defined in [3], for the specified bits and transmission parameters.

waveformWUR = wlanWaveformGenerator(bits,cfgWUR);

Plot the WUR waveform, scaling the x-axis relative to the channel bandwidth.

fsWUR = wlanSampleRate(cfgWUR.ChannelBandwidth);
time = (0:length(waveformWUR)-1)/fsWUR;
plot(time,abs(waveformWUR))
xlabel ("Time (seconds)")
ylabel("Magnitude")

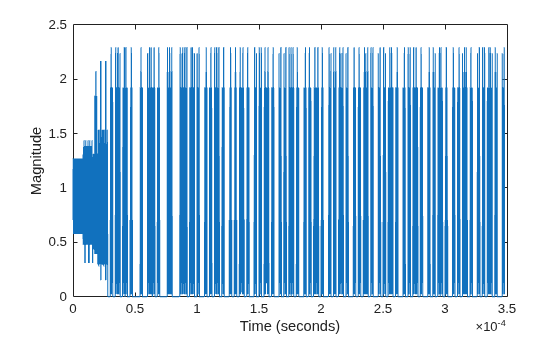

Figure contains an axes object. The axes object with xlabel Time (seconds), ylabel Magnitude contains an object of type line.

Generate VHT Waveform

Parameterize the transmission by creating a VHT configuration object with default property values.

cfgVHT = wlanVHTConfig;

Generate a VHT waveform, as defined in [4], for the specified bits and transmission parameters. The waveform comprises five packets with 20 microseconds of idle time between them.

waveformVHT = wlanWaveformGenerator(bits,cfgVHT, ...
    NumPackets=5,IdleTime=20e-6);

Plot the VHT waveform, scaling the x-axis relative to the channel bandwidth.

fsVHT = wlanSampleRate(cfgVHT.ChannelBandwidth);
time = (0:length(waveformVHT)-1)/fsVHT;
plot(time,abs(waveformVHT))
xlabel ('Time (seconds)')
ylabel('Magnitude')

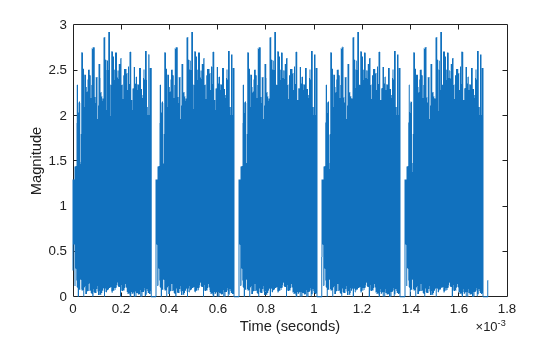

Figure contains an axes object. The axes object with xlabel Time (seconds), ylabel Magnitude contains an object of type line.
