MIMO with Zero Forcing equalizer

version 1.0.0.0 (1.46 KB) by Krishna Sankar M
Describes a 2x2 MIMO system using Zero Forcing equalizer in Rayleigh fading channel.
3.8
4 Ratings

18 Downloads

Updated 03 Dec 2008

No License

Discuss the case where there a multiple (two) transmit antennas and multiple (two) receive antennas resulting in the formation of a 2x2 Multiple Input Multiple Output (MIMO) channel. We will assume that the channel is a flat fading Rayleigh multipath channel and the modulation is BPSK.

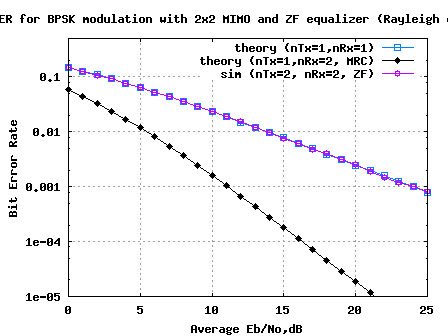

The equalization scheme used is Zero Forcing. As expected, the simulated results with a 2×2 MIMO system using BPSK modulation in Rayleigh channel is showing matching results as obtained in for a 1×1 system for BPSK modulation in Rayleigh channel.

For more theoretical description of Zero Forcing Equalization in 2x2 MIMO channel, please check
http://www.dsplog.com/2008/10/24/mimo-zero-forcing/

Cite As

Krishna Sankar M (2021). MIMO with Zero Forcing equalizer (https://www.mathworks.com/matlabcentral/fileexchange/22304-mimo-with-zero-forcing-equalizer), MATLAB Central File Exchange. Retrieved .

Comments and Ratings (5)

Athira Sankar

how can be create a channel for 10 by 10 mimo using raylrnd function for zeroforcing

IEEE Student Branch

Thank you very much for this codes.
I would like to know if you have any suggestion if we would like to make a Massive MIMO with several Tx Antennas and Rx Antennas?

Thanks
Best Regards
M Idham Habibie

Nanjing University of Posts

There is something wrong with the code.
hInv = hCof./hDen; % inv(H^H*H)
for i=1:N/nTx
hInv(:,:,i)=conj(hInv(:,:,i));
end
The performance will be much better.

Sarr ndèye

Hi every body,
I would like to know how I can generate Rice samples in Matlab.
Thanks for your response.

nintendo bc
