Simulink Alignment Tool - Auto Layout Subsystems - Function

Versión 1.0.2 (1,97 KB) por Pruthvi G

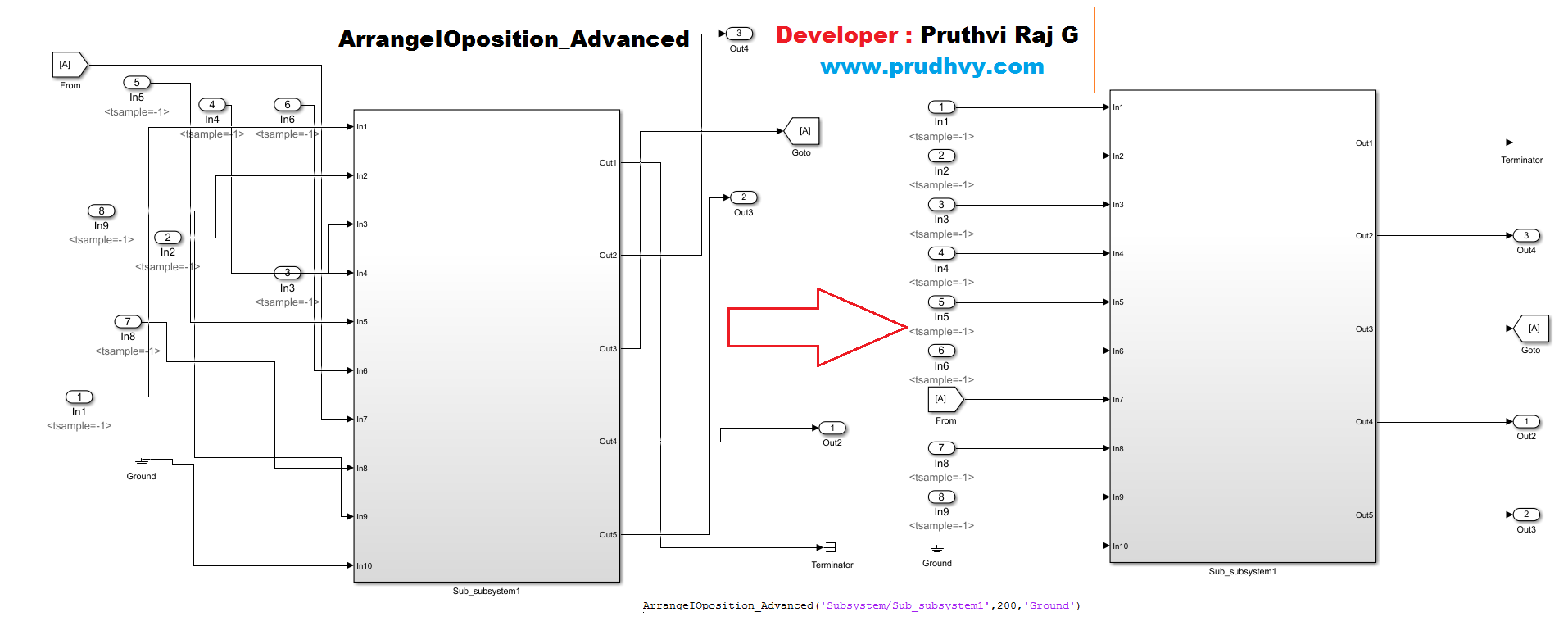

Arranging the following blocktype (inports, outports ,from-goto blocks , terminator) connected to Subsystem.
5.0
(2)
467 Descargas
Actualizado 22 mar 2019

Ver licencia

Name : ArrangeIOposition_Advanced.m
Author : Pruthvi Raj G
Version : Version 1.0
Input : gcbName = Subsystem path Name for
offset = Distance from subsystem to ports.
BlkType = Add if any other type of BlockType required.

Output : Arranging the following blocktype (inports, outports ,from-goto blocks , terminator) connected to Subsystem.
Date : 17-December-2018 07:41:00
Updates : 1. Gives Line handles for the selected line.
2. If multiple lines are tapped to the single line the
handles are stored in array.

Examples : 1. ArrangeIOposition_Advanced('Subsystem/Sub_subsystem1',200,'Ground')
2. ArrangeIOposition_Advanced('Subsystem/Sub_subsystem1')

The tool allows to automatically align (inports, outports ,from-goto blocks , terminator) connected to Subsystem..
