Test and Measurement

5G NR waveform generation, visualization, and transmitter performance analysis

5G Toolbox™ provides waveform generation and analysis capabilities.

  • Generate, impair, and visualize uplink, downlink, and sidelink waveforms, test models, and FRCs programmatically or by using the 5G Waveform Generator app.

  • Analyze waveform quality and obtain metrics. For example, you can measure error vector magnitude (EVM), adjacent channel leakage ratio (ACLR), and obtain quality metrics based on channel state information reference signals (CSI-RS).

  • Perform carrier aggregation (CA): generate, aggregate, and demodulate multiple 5G NR carriers.

Apps

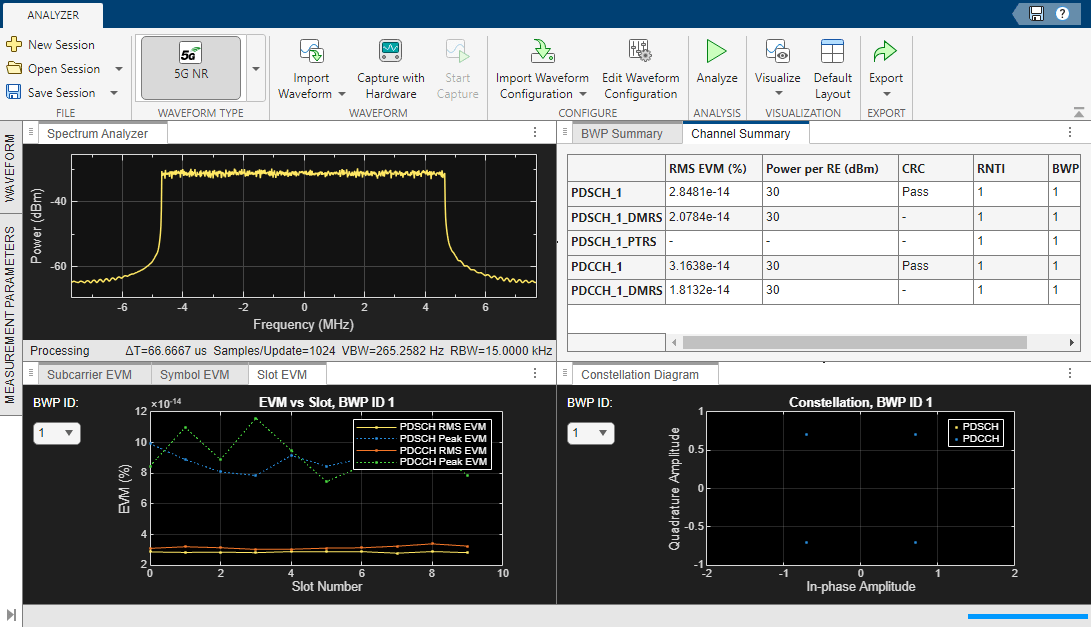

5G Waveform AnalyzerAnalyze and visualize imported or captured 5G waveforms and export analysis results (Since R2024b)
5G Waveform GeneratorCreate, impair, visualize, and export 5G NR waveforms (Since R2020a)

Functions

expand all

nrWaveformGeneratorGenerate 5G NR waveform (Since R2020b)
nrDLCarrierConfig5G downlink waveform configuration parameters (Since R2020b)
nrSCSCarrierConfigSCS carrier configuration parameters for 5G waveform generation (Since R2020b)
nrWavegenBWPConfigBWP configuration parameters for 5G waveform generation (Since R2020b)
nrWavegenSSBurstConfigSS burst configuration parameters for 5G waveform generation (Since R2020b)
nrWavegenPDSCHConfigPDSCH configuration parameters for 5G waveform generation (Since R2020b)
nrPDSCHDMRSConfigPDSCH DM-RS configuration parameters (Since R2020a)
nrPDSCHPTRSConfigPDSCH PT-RS configuration parameters (Since R2020a)
nrCORESETConfigControl resource set (CORESET) configuration parameters (Since R2020a)
nrSearchSpaceConfigSearch space set configuration parameters (Since R2020a)
nrWavegenPDCCHConfigPDCCH configuration parameters for 5G waveform generation (Since R2020b)
nrWavegenCSIRSConfigCSI-RS configuration parameters for 5G waveform generation (Since R2020b)
nrWaveformGeneratorGenerate 5G NR waveform (Since R2020b)
nrULCarrierConfig5G uplink waveform configuration parameters (Since R2021a)
nrSCSCarrierConfigSCS carrier configuration parameters for 5G waveform generation (Since R2020b)
nrWavegenBWPConfigBWP configuration parameters for 5G waveform generation (Since R2020b)
nrIntraCellGuardBandsConfigIntracell guard bands configuration parameters (Since R2023b)
nrWavegenPUSCHConfigPUSCH configuration parameters for 5G waveform generation (Since R2021a)
nrPUSCHDMRSConfigPUSCH DM-RS configuration parameters (Since R2020a)
nrPUSCHPTRSConfigPUSCH PT-RS configuration parameters (Since R2020a)
nrWavegenPUCCH0ConfigPUCCH format 0 configuration parameters for 5G waveform generation (Since R2021b)
nrWavegenPUCCH1ConfigPUCCH format 1 configuration parameters for 5G waveform generation (Since R2021b)
nrWavegenPUCCH2ConfigPUCCH format 2 configuration parameters for 5G waveform generation (Since R2021b)
nrWavegenPUCCH3ConfigPUCCH format 3 configuration parameters for 5G waveform generation (Since R2021b)
nrWavegenPUCCH4ConfigPUCCH format 4 configuration parameters for 5G waveform generation (Since R2021b)
nrWavegenSRSConfigSRS configuration parameters for 5G waveform generation (Since R2021a)
nrORANBlockCompress O-RAN fronthaul block compression (Since R2022b)
nrORANBlockDecompress O-RAN fronthaul block decompression (Since R2022b)
nrCSIRSMeasurementsCSI-RS-based physical layer measurements (Since R2022b)
nrSSBMeasurementsSSB-based physical layer measurements (Since R2022b)

Topics

  • 5G NR Waveform Generation

    Get an overview of 5G NR waveform generation workflows and the waveform types that you can generate.
