AUTOSAR Client-Server Communication

In Simulink^®, you can model AUTOSAR client-server communication for simulation and code generation. For information about the Simulink blocks you use and the high-level workflow, see Client-Server Interface.

To model AUTOSAR servers and clients, you can do either or both of the following:

• Import AUTOSAR servers and clients from ARXML code into a model.

• Configure AUTOSAR servers and clients from Simulink blocks.

AUTOSAR Server Model Configuration and Code Generation

This topic explores an example model, mControllerWithInterface_server, that models an AUTOSAR server.

Contents of the Server Model

Open the relevant supporting files by entering the following commands at the MATLAB^® command line:

openExample("mControllerWithInterface_server.slx")

The example model provides two Simulink Function blocks, doOverride and readData.

In the example model, the contents of the Simulink Function block readData implements readData server function.

The content of the Simulink Function block include blocks that implement the readData server function:

• Trigger block readData, representing a trigger port for the server function. Treat as Simulink function is selected. Function name is set to readData. Function visibility is set to global.

• Argument Inport block Op and Argument Outport blocks Data, ERR, and NegCode, correspond to the function prototype [Data,ERR,NegCode] = readData(Op).

• A Stateflow chart handling the data conversion of input argument CurVal, the output of which is fed into a Vector Concatenate block, a Data Type Conversion block which changes the data type to a double. Which then feeds the Data Argument Outport block.

• A Constant block represents the value of an application error defined for the server function.

The value of Op passed by the caller is ignored. In a real-world application, the algorithm could perform a more complex manipulation, for example, selecting an execution path based on the passed value of Op, producing output data required by the application, and checking for error conditions.

Note

When configuring server function arguments, you must specify signal data type, port dimensions, and signal type on the Signal Attributes tab of the inport and outport blocks. The AUTOSAR configuration fails validation if signal attributes are absent for server function arguments.

AUTOSAR Server Properties

In the AUTOSAR Dictionary, the required elements to configure an AUTOSAR server are:

1. AUTOSAR client-server (C-S) interface in the AUTOSAR Dictionary.

2. One or more AUTOSAR operations for which the interface handles client requests.

3. AUTOSAR server port to receive client requests for a server operation.

4. For each server operation, an AUTOSAR server runnable to execute client requests.

In the model, open the AUTOSAR Dictionary. To view AUTOSAR client-server interfaces in the model, go to the C-S Interfaces view. The example model already contains a client-server interface.

To view operations for CsIf1 interface expand C-S Interfaces, and then expand CsIf1 and select Operations. The example model already contains AUTOSAR server operations named doOverride and readData.

To examine the arguments listed for the AUTOSAR server operation readData. Expand Operations, then expand operation readData, and select Arguments. The listed arguments correspond to the Simulink server function prototype [Data,ERR,NegCode] = readData(Op).

To view AUTOSAR server ports in the model navigate to the ServerPorts view. Expand AtomicComponents, expand SWC_Controller, and select ServerPorts. The example model contains an AUTOSAR server port named sPort typed by client-server interface CsIf1.

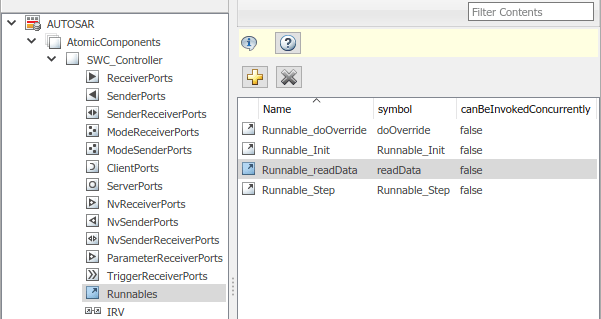

To model client-server communication, each AUTOSAR server operation must be mapped to an AUTOSAR server runnable that implements the operation. The example model contains a server runnable for readData, named Runnable_readData. To view available AUTOSAR runnables in the model, select Runnables. Select Runnable_readData, the Events pane opens. Runnable_readData has an event Event_readData of type OperationInvokedEvent, meaning that when the operation of the server is invoked it triggers the runnable to execute. Select Event_readData to configure its properties. In the example model, the event is already configured to trigger when operation sPort.readData is invoked.

Similarly, select Runnable_doOverride to view its events and event properties, it has an OperationInvokedEvent, Event_doOverride, which is triggered by sPort.doOverride. Select Runnable_Step to view its events and event properties. Since Runnable_Step is a periodic runnable it is triggered by a TimingEvent called Event_RTEEv_Runnable_Step. For more information about modeling runnables, see Multiple Runnables Configured as Periodic-Rate Runnable and Asynchronous Function-Call Runnable.

Simulink Function to AUTOSAR Server Runnable Mapping

Return to the model and open the Code Mappings editor. In the Functions tab, the Simulink Function readData is mapped to AUTOSAR server runnable Runnable_readData.

Validate Code Mappings

To determine code generation readiness, validate the AUTOSAR component mapping configuration, click the Validate button in the Code Mappings editor.

Generate Code and Export ARXML

Generate C code and export ARXML files for the model. Examine the generated code.

The code generator produces a code generation report showing the generated Model files and Interface files. The model files include file mControllerWithInterface_server.c. C code describing functions readData and overrideData are generated.

By default, the software exports modular ARXML files. To export ARXML as a single file, set XML option Exported XML file packaging to Single file.

This example exports modular ARXML files:

• mControllerWithInterface_server_component.arxml

• mControllerWithInterface_server_datatype.arxml

• mControllerWithInterface_server_implementation.arxml

• mControllerWithInterface_server_interface.arxml

• mControllerWithInterface_server_timing.arxml

Notably, AUTOSAR server port sPort that was configured in this example is generated in the mControllerWithInterface_server_component.arxml file. It contains communication specifications that reference the operations defined in the model.

...
<SHORT-NAME>sPort</SHORT-NAME>
<PROVIDED-COM-SPECS>
    <SERVER-COM-SPEC>
        <OPERATION-REF DEST="CLIENT-SERVER-OPERATION">/ControllerWithInterface_ar_pkg/ControllerWithInterface_ar_if/CsIf1/doOverride</OPERATION-REF>
        <QUEUE-LENGTH>1</QUEUE-LENGTH>
    </SERVER-COM-SPEC>
    <SERVER-COM-SPEC>
        <OPERATION-REF DEST="CLIENT-SERVER-OPERATION">/ControllerWithInterface_ar_pkg/ControllerWithInterface_ar_if/CsIf1/readData</OPERATION-REF>
        <QUEUE-LENGTH>1</QUEUE-LENGTH>
    </SERVER-COM-SPEC>
</PROVIDED-COM-SPECS>
<PROVIDED-INTERFACE-TREF DEST="CLIENT-SERVER-INTERFACE">/ControllerWithInterface_ar_pkg/ControllerWithInterface_ar_if/CsIf1</PROVIDED-INTERFACE-TREF>
</P-PORT-PROTOTYPE>
</PORTS>
...

For more information about generated C code from AUTOSAR models, see AUTOSAR Classic Component Code Generation Files.

AUTOSAR Client Model Configuration and Code Generation

This topic explores an example model, mControllerWithInterface_client, of an AUTOSAR client. This model calls the server operation modeled in mControllerWithInterface_server.slx.

Contents of the Model

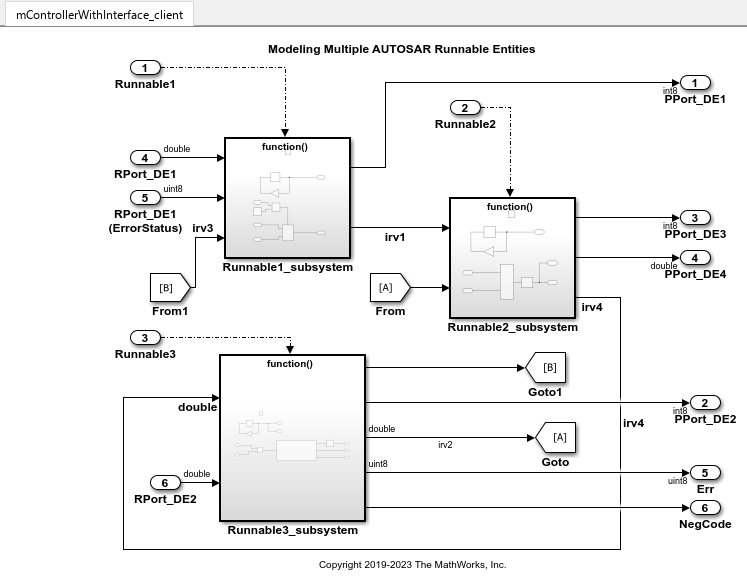

Open the example model mControllerWithInterface_client.slx.

openExample("mControllerWithInterface_client");

The example model provides a Function Caller block named readData located inside the Runnable3_Subsystem. The readData Function Caller block is connected to inports, outports, and signal lines matching the function argument data types and dimensions of the Simulink Function block defined in the AUTOSAR server example, AUTOSAR Server Model Configuration and Code Generation.

Note

Whenever you add or change a Function Caller block in an AUTOSAR model, update function callers in the AUTOSAR configuration. Open the Code Mappings editor. In the dialog box, click the Update button . This action loads or updates Simulink data transfers, function callers, and numeric types in your model. After updating, the function caller you added appears in the Function Callers tab of the Code Mappings editor.

The Function Caller block parameters include function prototype and argument specification fields. The Function Caller block parameters in the client model must match the server function definition in the server model.

For reference, here is the readData function from the server example to which the Function Caller block in the client model corresponds.

If you have System Composer™ you can graphically associate a client and server by using an AUTOSAR architecture model. For more information about AUTOSAR clients and servers in architecture models, see Assemble and Simulate AUTOSAR Software Components in Architecture Model.

AUTOSAR Client Properties

Open the AUTOSAR Dictionary. To view AUTOSAR C-S interfaces in the model, navigate to the C-S Interfaces view. The example model already contains a client-server interface named CsIf1.

Expand C-S Interfaces, expand CsIf1. To view operations for the interface, select Operations. The example model already contains an AUTOSAR operation named readData.

View the AUTOSAR operation arguments. Expand Operations, expand the operation readData, and select Arguments. Arguments NegCode, ERR, Data, Op are defined along with the direction of the ports, either In, Out, or Error. The AUTOSAR operation and arguments match the Function Caller block prototype [Data,ERR,NegCode] = readData(Op) in the model.

To view AUTOSAR client ports in the model, navigate to the ClientPorts view. Expand AtomicComponents, expand ASWC, and select ClientPorts. The example model already contains an AUTOSAR client port named cPort typed by client-server interface CsIf1.

Simulink Function Caller to AUTOSAR Client Port Mapping

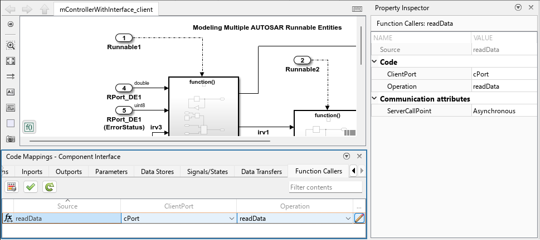

Return to the model and open the Code Mappings editor. In the Function Callers tab, the Simulink client function readData is mapped to AUTOSAR ClientPort cPort, specifically it is mapped to the client port operation readData.

In addition to mapping Simulink function callers to AUTOSAR client port operations, you can set the communication style of the server call point as either synchronous (blocking behavior) or asynchronous (nonblocking behavior). When the caller behavior is set to asynchronous, the software utilizes a polling approach, meaning that the runnable invokes the operation and checks if the server results are ready every time that the runnable runs. At the same time, the client output maintains the last value it received from the server. When the server results are ready, the client output is updated and the server is invoked again. Allowing the client to be unblocked by the server reduces overhead for complex processes and increases run-time efficiency of the model.

To view or change the ServerCallPoint setting, open the Property Inspector and select Function Caller readData in the Code Mappings editor. In the Property Inspector, expand Communication attributes. Setting ServerCallPoint determines the calling behavior of the client, it can be set to either Synchronous (blocking) or Asynchronous (non-blocking). In the example model, client port cPort has communication attribute ServerCallPoint set to Asynchronous.

Validate Code Mappings

To determine code generation readiness, validate the AUTOSAR component mapping configuration, click the Validate button in the Code Mappings editor.

Optional: Simulate Client and Server with Simulink Test Harness

While simulation is not required for this example, if you want to simulate the function invocation at this point you can create a test harness for the client model. Alternatively, combine the mControllerWithInterface_server.slx model and the mControllerWithInterface_client.slx as software components in the same architecture model by using System Composer for more information about this workflow, see Assemble and Simulate AUTOSAR Software Components in Architecture Model.

Note

Function callers, regardless of the setting of their communication attribute ServerCallPoint, are simulated synchronously.

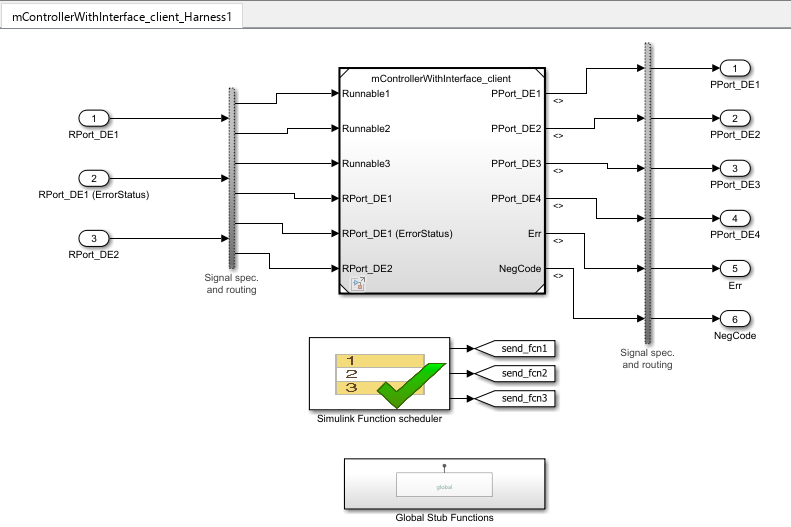

To simulate the AUTOSAR client model in this example, create a Simulink Test™ harness. On the Modeling toolstrip select the Simulink Test app in the Apps > Model Verification, Validation, and Test section. On the Simulink Test toolstrip, select Add Test Harness to create a test harness for the model. The Create Test Harness dialog box opens. Select the path to save the harness model in the Harness path and enable Save test harnesses externally. Click OK. The test harness for the client model opens.

The test harness creates a Global Stub Functions subsystem, which provides stub definition of function readData. It also creates a Simulink Function scheduler to automatically schedule the runnables defined in the client model.

The Simulink Test harness is not suitable for AUTOSAR code generation and exists purely for simulation and verification purposes.

Generate and Inspect Code and Export ARXML for Asynchronous Client Ports

After validating code mappings, generate and inspect C code and export ARXML files for the model. The code generator produces a code generation report showing the generated Model files and Interface files. For information about generated C code from AUTOSAR models, see AUTOSAR Classic Component Code Generation Files.

For AUTOSAR client ports with communication attribute ServerCallPoint set to Asynchronous the generated code contains two calls: Rte_Call to invoke the server and Rte_Result to get the server results. The Rte_Call contains the list of IN and INOUT arguments, while the Rte_Result contains the list of INOUT and OUT arguments.

...
/* Model step function for TID3 */
void Runnable3(void)                   /* Explicit Task: Runnable3 */
{
  sint8 Delay;
  sint8 rtb_Gain;
  sint8 rtb_OutportBufferForTicToc;
...
  /* FunctionCaller: '<S3>/readData' incorporates:
   *  DataTransferBlock generated from: '<Root>/Runnable2_subsystem'
   *  Inport: '<Root>/RPort_DE2'
   *  Product: '<S3>/Product'
   */
  Rte_Call_cPort_readData(Rte_IrvIRead_Runnable3_IRV4() *
    Rte_IRead_Runnable3_RPort_DE2());
  Rte_Result_cPort_readData(rtARID_DEF.readData_o1, &rtARID_DEF.readData_o2,
    &rtARID_DEF.readData_o3);
...
  /* Outport: '<Root>/PPort_DE2' */
  Rte_IWrite_Runnable3_PPort_DE2(rtb_OutportBufferForTicToc);

  /* Outport: '<Root>/Err' */
  Rte_IWrite_Runnable3_PPort_Err(rtARID_DEF.readData_o2);

  /* Outport: '<Root>/NegCode' */
  Rte_IWrite_Runnable3_PPort_NegCode(rtARID_DEF.readData_o3);
}
...

In the exported ARXML files, the ASYNCHRONOUS-SERVER-CALL-RESULT-POINT indicates which runnable processes the result, in this case Runnable3. The ASYNCHRONOUS-SERVER-CALL-RESULT-POINT references the ASYNCHRONOUS-SERVER-CALL-POINT.

...
<ASYNCHRONOUS-SERVER-CALL-RESULT-POINTS>
    <ASYNCHRONOUS-SERVER-CALL-RESULT-POINT UUID="...">
        <SHORT-NAME>SCR_cPort_readData</SHORT-NAME>
        <ASYNCHRONOUS-SERVER-CALL-POINT-REF...
DEST="ASYNCHRONOUS-SERVER-CALL-POINT">/pkg/swc/ASWC/IB/Runnable3/SC_cPort_readData</ASYNCHRONOUS-SERVER-CALL-POINT-REF>
    </ASYNCHRONOUS-SERVER-CALL-RESULT-POINT>
</ASYNCHRONOUS-SERVER-CALL-RESULT-POINTS>
...

When you import ARXML files with descriptions of asynchronous client ports Simulink requires that the ASYNCHRONOUS-SERVER-CALL-RESULT-POINT and ASYNCHRONOUS-SERVER-CALL-POINT be defined together in the same runnable description. Otherwise, server call points are set to Synchronous after import and model creation.

Generate and Inspect Code and Export ARXML for Synchronous Client Ports

After validating code mappings, generate and inspect C code and export ARXML files for the model. The code generator produces a code generation report showing the generated Model files and Interface files. For information about generated C code from AUTOSAR models, see AUTOSAR Classic Component Code Generation Files.

For function callers mapped to AUTOSAR client ports with communication attribute ServerCallPoint set to Synchronous the RTE call to function readData of AUTOSAR client port cPort handles results of the server as input arguments. For example, Runnable3 in the following code contains function Rte_Call_cPort_readData which requires server results as input arguments in order to execute, specifically: rtbARID_DEF.readData.o1, rtb_readData_o2, and rtb_readData_o3.

...
/* Model step function for TID3 */
void Runnable3(void)                   /* Explicit Task: Runnable3 */
{
  float64 rtb_readData_o3;
  sint8 Delay;
  sint8 rtb_OutportBufferForTicToc;
  uint8 rtb_readData_o2;
...
  /* FunctionCaller: '<S3>/readData' incorporates:
   *  DataTransferBlock generated from: '<Root>/Runnable2_subsystem'
   *  Inport: '<Root>/RPort_DE2'
   *  Product: '<S3>/Product'
   */
  Rte_Call_cPort_readData(Rte_IrvIRead_Runnable3_IRV4() *
    Rte_IRead_Runnable3_RPort_DE2(), rtARID_DEF.readData_o1, &rtb_readData_o2,
    &rtb_readData_o3);
...
  /* Outport: '<Root>/PPort_DE2' */
  Rte_IWrite_Runnable3_PPort_DE2(rtb_OutportBufferForTicToc);

  /* Outport: '<Root>/Err' */
  Rte_IWrite_Runnable3_PPort_Err(rtb_readData_o2);

  /* Outport: '<Root>/NegCode' */
  Rte_IWrite_Runnable3_PPort_NegCode(rtb_readData_o3);
}
...

In the exported ARXML files, function readData on the client port has a synchronous server call point, and includes the AUTOSAR client-server interface and operation.

...
<SERVER-CALL-POINTS>
  <SYNCHRONOUS-SERVER-CALL-POINT UUID="...">
    <SHORT-NAME>SC_cPort_readData</SHORT-NAME>
    <OPERATION-IREF>
      <CONTEXT-R-PORT-REF DEST="R-PORT-PROTOTYPE">/pkg/swc/ASWC/cPort</CONTEXT-R-PORT-REF>
      <TARGET-REQUIRED-OPERATION-REF DEST="CLIENT-SERVER-OPERATION">/pkg/if/CsIf1/readData</TARGET-REQUIRED-OPERATION-REF>
    </OPERATION-IREF>
    <TIMEOUT>1.0E-06</TIMEOUT>
  </SYNCHRONOUS-SERVER-CALL-POINT>
</SERVER-CALL-POINTS>
...

For more information about generated ARXML files and their contents, see Configure AUTOSAR Code Generation.

Configure AUTOSAR Client-Server Error Handling

AUTOSAR defines an application error status mechanism for client-server error handling. An AUTOSAR server returns error status, with a value matching a predefined possible error. An AUTOSAR client receives and responds to the error status. An AUTOSAR software component that follows client-server error handling guidelines potentially provides error status to AUTOSAR Basic Software, such as a Diagnostic Event Manager (DEM).

In Simulink, you can:

• Import ARXML code that implements client-server error handling.

• Configure error handling for a client-server interface.

• Generate C and ARXML code for client-server error handling.

If you import ARXML code that implements client-server error handling, the importer creates error status ports at the corresponding server call-point (Function Caller block) locations.

To implement AUTOSAR client-server error handling in Simulink:

1. Define the possible error status values that the AUTOSAR server returns in a Simulink data type. Define one or more error codes in the range 0-63, inclusive. The underlying storage of the data type must be an unsigned 8-bit integer. The data scope must be Exported. For example, define an enumeration type appErrType:

   classdef(Enumeration) appErrType < uint8

      enumeration
         SUCCESS(0)
         ERROR(1)
         COMM_MODE_LIMITATION(2)
         OVERFLOW(3)
         UNDERFLOW(4)
         VALUE_MOD3(5)
      end

      methods (Static = true)
         function descr = getDescription()
            descr = 'Definition of application error type.';
         end

         function hdrFile = getHeaderFile()
            hdrFile = '';
         end

         function retVal = addClassNameToEnumNames()
             retVal = false;
         end

         function dataScope = getDataScope()
             dataScope = 'Exported';
         end
      end

   end

   Note

   The Simulink data type that you define to represent possible errors in the model does not directly impact the AUTOSAR possible errors that are imported and exported in ARXML code. To modify the exported possible errors for a C-S interface or C-S operation, use AUTOSAR properties functions. This topic provides examples.

2. Define an error status output argument for the Simulink Function block that models the AUTOSAR server. Configure the error status argument as the only function output or add it to other outputs. For example, here is a Simulink Function block that returns an error status value in output err.



   The Simulink Function block implements an algorithm to return error status.



3. Reference the possible error values type in the model. In the Argument Outport block parameters for the error outport, specify the error status data type, in this case, appErrType. Set Port dimensions to 1 and Signal type to real.



4. Configure the AUTOSAR properties of the error argument in the client-server interface. Open the AUTOSAR Dictionary, expand C-S Interfaces, and navigate to the Arguments view of the AUTOSAR operation. To add an argument, click the Add button . Configure the argument name and set Direction to Error.



5. Create an error port in each Function Caller block that models an AUTOSAR client invocation. For example, here is a Function Caller block that models an invocation of fcnWErr.



   In the Function Caller block parameters, specify the same error status data type.



   Configure the AUTOSAR properties of the error argument to match the information in the AUTOSAR Dictionary, Arguments view, shown in Step 4.

The generated C code for the function reflects the configured function signature and the logic defined in the model for handling the possible errors.

appErrType fcnWErr(real_T x1, real_T x2)
{
  appErrType rty_err_0;
  if (...) == 0.0) {
    rty_err_0 = ...;
  } else {
    rty_err_0 = ...;
  }

  return rty_err_0;
}

Additionally, for the enumeration type class definition used in this example, the build generates header file appErrType.h, containing the possible error type definitions.

The exported ARXML code contains the possible error definitions, and references to them.

<POSSIBLE-ERRORS>
   <APPLICATION-ERROR …>
      <SHORT-NAME>SUCCESS</SHORT-NAME>
      <ERROR-CODE>0</ERROR-CODE>
   </APPLICATION-ERROR>
   <APPLICATION-ERROR …>
      <SHORT-NAME>ERROR</SHORT-NAME>
      <ERROR-CODE>1</ERROR-CODE>
   </APPLICATION-ERROR>
   …
   <APPLICATION-ERROR …>
      <SHORT-NAME>UNDERFLOW</SHORT-NAME>
      <ERROR-CODE>4</ERROR-CODE>
   </APPLICATION-ERROR>
   <APPLICATION-ERROR …>
      <SHORT-NAME>VALUE_MOD3</SHORT-NAME>
      <ERROR-CODE>5</ERROR-CODE>
   </APPLICATION-ERROR>
</POSSIBLE-ERRORS>

You can use AUTOSAR property functions to programmatically modify the possible errors that are exported in ARXML code, and to set the Direction property of a C-S operation argument to Error.

The following example adds UNDERFLOW and VALUE_MOD3 to the possible errors for a C-S interface named fcnWErr.

>> arProps = autosar.api.getAUTOSARProperties(bdroot)
>> get(arProps,'fcnWErr','PossibleError')
ans =
    'fcnWErr/SUCCESS'    'fcnWErr/ERROR'    'fcnWErr/COMM_MODE…'
    'fcnWErr/OVERFLOW'
>> get(arProps,'fcnWErr/OVERFLOW','errorCode')
ans =
           3
>> add(arProps,'fcnWErr','PossibleError','UNDERFLOW')
>> set(arProps,'fcnWErr/UNDERFLOW','errorCode',4)
>> add(arProps,'fcnWErr','PossibleError','VALUE_MOD3')
>> set(arProps,'fcnWErr/VALUE_MOD3','errorCode',5)
>> get(arProps,'fcnWErr','PossibleError')
ans =
    'fcnWErr/SUCCESS'    'fcnWErr/ERROR'    'fcnWErr/COMM_MODE…'
    'fcnWErr/OVERFLOW'    'fcnWErr/UNDERFLOW'    'fcnWErr/VALUE_MOD3'

You can also access possible errors on a C-S operation. The following example lists possible errors for operation fcnWErr on C-S interface fcnWErr.

>> arProps = autosar.api.getAUTOSARProperties(bdroot)
>> get(arProps,'fcnWErr/fcnWErr','PossibleError')
ans =
    'fcnWErr/SUCCESS'    'fcnWErr/ERROR'    'fcnWErr/COMM_MODE…'
    'fcnWErr/OVERFLOW'

The following example sets the direction of C-S operation argument err to Error.

>> arProps = autosar.api.getAUTOSARProperties(bdroot)
>> set(arProps,'fcnWErr/fcnWErr/err','Direction','Error')
>> get(arProps,'fcnWErr/fcnWErr/err','Direction')
ans =
    Error

Concurrency Constraints for AUTOSAR Server Runnables

The following blocks and modeling patterns are incompatible with concurrent execution of an AUTOSAR server runnable.

Blocks that are inside a Simulink® function:

• Blocks with state, such as Unit Delay

• Blocks with zero-crossing logic, such as Triggered Subsystem and Enabled Subsystem

• Stateflow® charts

• Other Simulink Function blocks

• Noninlined subsystems

• Legacy C function calls with side effects

Modeling patterns inside a Simulink® function:

• Writing to a data store memory (for example, per-instance-memory)

• Writing to a global block signal (for example, static memory)

To enforce concurrency constraints for AUTOSAR server runnables, use the runnable property canBeInvokedConcurrently. The property is located in the Runnables view in the AUTOSAR Dictionary.

When canBeInvokedConcurrently is set to true for a server runnable, AUTOSAR validation checks for blocks and modeling patterns that are incompatible with concurrent execution of a server runnable. If a Simulink® function contains an incompatible block or modeling pattern, validation reports errors. If canBeInvokedConcurrently is set to false, validation does not check for blocks and modeling patterns that are incompatible with concurrent execution of a server runnable.

You can set canBeInvokedConcurrently to true only for an AUTOSAR server runnable — that is, a runnable with an OperationInvokedEvent. The property canBeInvokedConcurrently is not supported for runnables with other event triggers, such as timing events. If canBeInvokedConcurrently is set to true for a nonserver runnable, AUTOSAR validation fails.

To programmatically set the runnable property canBeInvokedConcurrently, use the AUTOSAR property function set. The following example sets the runnable property canBeInvokedConcurrently to true for an AUTOSAR server runnable named Runnable_readData.

open_system("mControllerWithInterface_server")
arProps = autosar.api.getAUTOSARProperties("mControllerWithInterface_server");
SRPath = find(arProps,[],"Runnable","Name","Runnable_readData")

SRPath = 1×1 cell array
    {'SWC_Controller/ControllerWithInterface_ar/Runnable_readData'}

invConc = get(arProps,"SWC_Controller/ControllerWithInterface_ar/Runnable_readData",...
  "canBeInvokedConcurrently")

invConc = logical
   0

set(arProps,"SWC_Controller/ControllerWithInterface_ar/Runnable_readData",...
  "canBeInvokedConcurrently",true)
invConc = get(arProps,"SWC_Controller/ControllerWithInterface_ar/Runnable_readData",...
  "canBeInvokedConcurrently")

invConc = logical
   1
