addTitle

Add title to heatmap or clustergram

collapse all in page

Syntax

addTitle(hm_cg_object,title)
addTitle(hm_cg_object,title,Name,Value)
textObj = addTitle(___)

Description

addTitle(hm_cg_object,title) adds a title to the heatmap or clustergram.

example

addTitle(hm_cg_object,title,Name,Value) specifies the title text object properties using name-value pair arguments. For example, addTitle(hm_cg_object,'Gene Expression Data','Color','red','FontSize',12) displays the title in red 12-point font. You can specify multiple name-value pairs. Enclose each property name in quotes.

example

textObj = addTitle(___) returns a text object textObj used as the title of the heatmap or clustergram using any of the input argument combinations in the previous syntaxes.

example

Examples

collapse all

Open Live Script

Load a sample of gene expression data.

load bc_train_filtered

Display a heatmap of the gene expression values for 4918 genes from 78 samples.

hmo = HeatMap(bcTrainData.Log10Ratio);
             Standardize: '[column | row | {none}]'
               Symmetric: '[true | false].'
            DisplayRange: 'Scalar.'
                Colormap: []
               ImputeFun: 'string -or- function handle -or- cell array'
            ColumnLabels: 'Cell array of strings, or an empty cell array'
               RowLabels: 'Cell array of strings, or an empty cell array'
      ColumnLabelsRotate: []
         RowLabelsRotate: []
                Annotate: '[on | {off}]'
          AnnotPrecision: []
              AnnotColor: []
       ColumnLabelsColor: 'A structure array.'
          RowLabelsColor: 'A structure array.'
       LabelsWithMarkers: '[true | false].'
    ColumnLabelsLocation: '[ top | {bottom} ]'
       RowLabelsLocation: '[ {left} | right ]'

Figure HeatMap 1 contains 2 axes objects. Axes object 1 contains 178 objects of type image, rectangle. Hidden axes object 2 contains an object of type text.

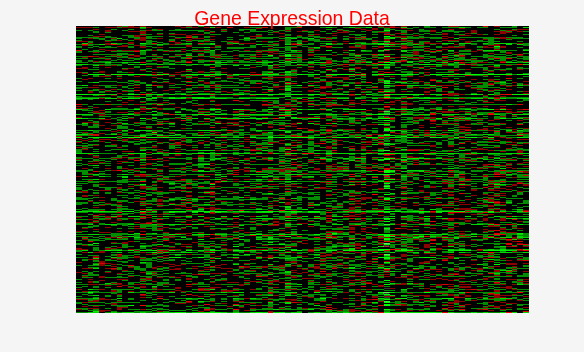

Add a title to the heatmap in red.

title = addTitle(hmo,'Gene Expression Data','Color','red');

Figure HeatMap 1 contains 2 axes objects. Axes object 1 contains 178 objects of type image, rectangle. Hidden axes object 2 contains an object of type text.

Change the title font size.

title.FontSize = 12;

Figure HeatMap 1 contains 2 axes objects. Axes object 1 contains 178 objects of type image, rectangle. Hidden axes object 2 contains an object of type text.

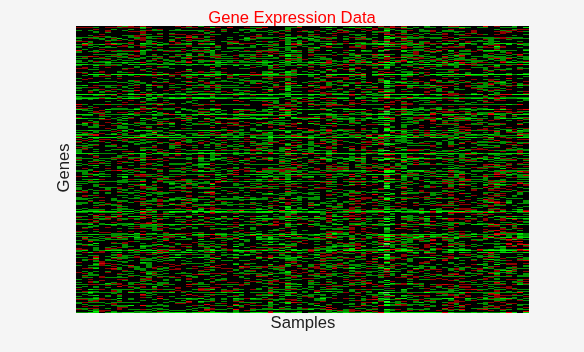

Add labels to the x-axis and y-axis.

addXLabel(hmo,'Samples','FontSize',12);
addYLabel(hmo,'Genes','FontSize',12);

Figure HeatMap 1 contains 2 axes objects. Axes object 1 with xlabel Samples, ylabel Genes contains 178 objects of type image, rectangle. Hidden axes object 2 contains an object of type text.

Input Arguments

collapse all

Heatmap or clustergram object, specified as a HeatMap object or clustergram object.

Title of the heatmap or clustergram, specified as a character vector or string.

Example: 'Inverse of an Upper Hessenberg Matrix'

Data Types: char | string

Output Arguments

collapse all

Heatmap or clustergram title, returned as a Text object.

Version History

Introduced in R2009b
