DSBSC AM Modulator Passband
Modulate using double-sideband suppressed-carrier amplitude modulation
Analog Passband Modulation, in Modulation
The DSBSC AM Modulator Passband block modulates using double-sideband suppressed-carrier amplitude modulation. The output is a passband representation of the modulated signal. Both the input and output signals are real scalar signals.
If the input is u(t) as a function of time t, then the output is
where fc is the Carrier frequency parameter and θ is the Initial phase parameter.

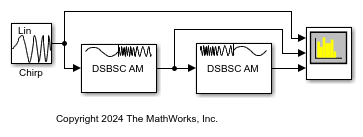

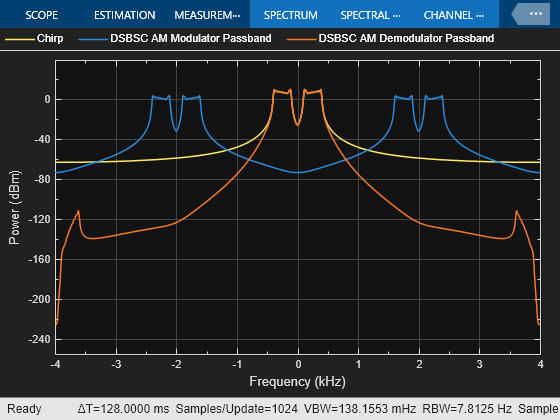

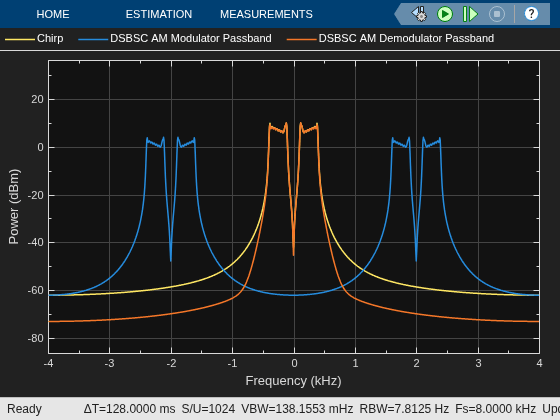

Typically, an appropriate Carrier frequency value is much higher than the highest frequency of the input signal. By the Nyquist sampling theorem, the reciprocal of the model's sample time (defined by the model's signal source) must exceed twice the Carrier frequency parameter.
This block works only with real inputs of type
double. This block does
not work inside a triggered subsystem.
- Carrier frequency (Hz)
The frequency of the carrier.
- Initial phase (rad)
The initial phase of the carrier in radians.
