PM Modulator Passband

Modulate using phase modulation


Analog Passband Modulation, in Modulation

  • PM Modulator Passband block


The PM Modulator Passband block modulates using phase modulation. The output is a passband representation of the modulated signal. The output signal's frequency varies with the input signal's amplitude. Both the input and output signals are real scalar signals.

If the input is u(t) as a function of time t, then the output is



  • fc represents the Carrier frequency parameter

  • θ represents the Initial phase parameter

  • Kc represents the Phase deviation parameter

An appropriate Carrier frequency value is generally much higher than the highest frequency of the input signal. By the Nyquist sampling theorem, the reciprocal of the model's sample time (defined by the model's signal source) must exceed twice the Carrier frequency parameter.

This block works only with real inputs of type double. This block does not work inside a triggered subsystem.


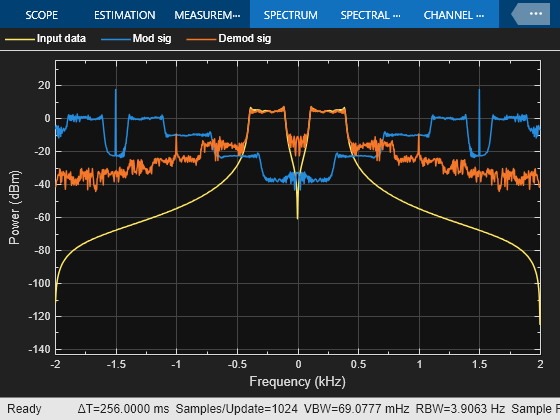

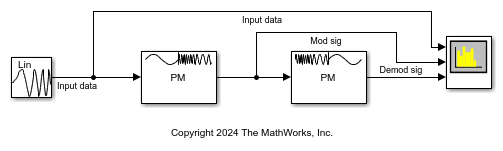

Carrier frequency (Hz)

The frequency of the carrier.

Initial phase (rad)

The initial phase of the carrier in radians.

Phase deviation (rad)

The phase deviation of the carrier frequency in radians. This is sometimes referred to as the "variation" in the phase.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Introduced before R2006a
