Demodulate rectangularQAMmodulated data
AM, in Digital Baseband sublibrary of Modulation

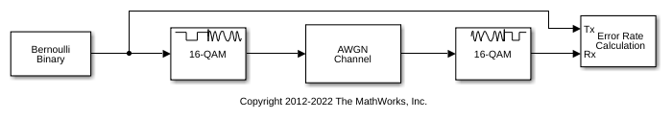

The Rectangular QAM Demodulator Baseband block demodulates a signal that was modulated using quadrature amplitude modulation with a constellation on a rectangular lattice.
All values of power assume a nominal impedance of 1 ohm.
The signal constellation has M points, where M is the Mary number parameter. M must have the form 2^{K} for some positive integer K. The block scales the signal constellation based on how you set the Normalization method parameter. For details, see the reference page for the Rectangular QAM Modulator Baseband block.
This block accepts a scalar or column vector input signal. For information about the data types each block port supports, see the Supported Data Types table on this page.
The demodulator algorithm maps received input signal constellation values to Mary integer I and Q symbol indices between 0 and $$\sqrt{\text{M}}1$$ and then maps these demodulated symbol indices to formatted output values.
The integer symbol index computation is performed by first derotating and scaling the complex input signal constellation (possibly with noise) by a derotate factor and denormalization factor, respectively. These factors are derived from the Phase offset, Normalization method, and related parameters. These derotated and denormalized values are added to $$\sqrt{\text{M}}1$$ to translate them into an approximate range between 0 and $$2\times (\sqrt{\text{M}}1)$$ (plus noise). The resulting values are then rescaled via a dividebytwo (or, equivalently, a rightshift by one bit for fixedpoint operation) to obtain a range approximately between 0 and $$\sqrt{\text{M}}1$$ (plus noise) for I and Q. The noisy index values are rounded to the nearest integer and clipped, via saturation, and mapped to integer symbol values in the range [0 M1]. Finally, based on other block parameters, the integer index is mapped to a symbol value that is formatted and cast to the selected Output data type.
The following figures contains signal flow diagrams for floatingpoint and fixedpoint
algorithm operation. The floatingpoint diagrams apply when the input signal data type
is double
or single
. The fixedpoint diagrams
apply when the input signal is a signed fixedpoint data type. Note that the diagram is
simplified when Phase offset is a multiple of π/2, and/or the
derived denormalization factor is 1.
SignalFlow Diagrams with Trivial Phase Offset and Denormalization Factor Equal to 1
SignalFlow Diagrams with Nontrivial Phase Offset and Nonunity Denormalization Factor
The number of points in the signal constellation. It must have the form 2^{K} for some positive integer K.
Determines how the block scales the signal constellation. Choices are
Min. distance between symbols
,
Average Power
, and Peak
Power
.
This parameter appears when Normalization method is
set to Min. distance between symbols
.
The distance between two nearest constellation points.
The average power of the symbols in the constellation, referenced to 1
ohm. This field appears only when Normalization method
is set to Average Power
.
The maximum power of the symbols in the constellation, referenced to 1
ohm. This field appears only when Normalization method
is set to Peak Power
.
The rotation of the signal constellation, in radians.
Determines how the block assigns binary words to points of the signal constellation. More details are on the reference page for the Rectangular QAM Modulator Baseband block.
Selecting Userdefined
displays the field
Constellation mapping, allowing for userspecified
mapping.
This parameter appears when Userdefined
is selected in
the pulldown list Constellation ordering.
This is a row or column vector of size M and must have unique integer
values in the range [0, M1]. The values must be of data type
double
.
The first element of this vector corresponds to the topleftmost point of the constellation, with subsequent elements running down columnwise, from left to right. The last element corresponds to the bottomrightmost point.
Determines whether the block produces integers or binary representations of integers.
If set to Integer
, the block produces
integers.
If set to Bit
, the block produces a group of K
bits, called a binary word, for each symbol, when
Decision type is set to Hard
decision
. If Decision type is set to
Loglikelihood ratio
or Approximate
loglikelihood ratio
, the block outputs bitwise LLR and
approximate LLR, respectively.
This parameter appears when Bit
is selected in the
pulldown list Output type.
Specifies the use of hard decision, LLR, or approximate LLR during demodulation. See Exact LLR Algorithm and Approximate LLR Algorithm in the Communications Toolbox™ User's Guide for algorithm details.
This parameter appears when Approximate loglikelihood
ratio
or Loglikelihood ratio
is selected
for Decision type.
When set to Dialog
, the noise variance can be specified
in the Noise variance field. When set to
Port
, a port appears on the block through which the
noise variance can be input.
This parameter appears when the Noise variance source
is set to Dialog
and specifies the noise variance in the
input signal. This parameter is tunable in normal mode, Accelerator mode and
Rapid Accelerator mode.
If you use the Simulink^{®} Coder™ rapid simulation (RSIM) target to build an RSIM executable, then you can tune the parameter without recompiling the model. This is useful for Monte Carlo simulations in which you run the simulation multiple times (perhaps on multiple computers) with different amounts of noise.
The LLR algorithm involves computing exponentials of very large or very small numbers using finite precision arithmetic and would yield:
Inf
to Inf
if
Noise variance is very high
NaN
if Noise variance and
signal power are both very small
In such cases, use approximate LLR, as its algorithm does not involve computing exponentials.
When the parameter is set to 'Inherit via internal
rule'
(default setting), the block will inherit the output
data type from the input port. The output data type will be the same as the
input data type if the input is of type single
or
double
. Otherwise, the output data type will be as if
this parameter is set to 'Smallest unsigned
integer'
.
When the parameter is set to 'Smallest unsigned
integer'
, the output data type is selected based on the
settings used in the Hardware Implementation pane of
the Configuration Parameters dialog box of the model. If
ASIC/FPGA
is selected in the Hardware
Implementation pane, the output data type is the ideal
minimum size, i.e., ufix(1)
for bit outputs, and
ufix(ceil(log2(M)))
for integer outputs. For all
other selections, it is an unsigned integer with the smallest available word
length large enough to fit the ideal minimum size, usually corresponding to
the size of a char (e.g., uint8
).
For integer outputs, this parameter can be set to Smallest
unsigned integer
, int8
,
uint8
, int16
,
uint16
, int32
,
uint32
, single
, and
double
. For bit outputs, the options are
Smallest unsigned integer
, int8
,
uint8
, int16
,
uint16
, int32
,
uint32
, boolean
,
single
, or double
.
This parameter only applies when the input is fixedpoint and Phase offset is not a multiple of π/2.
This can be set to Same word length as input
or
Specify word length
, in which case a field is enabled
for user input.
This parameter only applies when the input is fixedpoint and the derived denormalization factor is nonunity (not equal to 1). This scaling factor is derived from Normalization method and other parameter values in the block dialog.
This can be set to Same word length as input
or
Specify word length
, in which case a field is enabled
for user input. A bestprecision fraction length is always used.
This parameter only applies when the input is a fixedpoint signal and
there is a nonunity (not equal to 1) denormalized factor. It can be set to
Inherit via internal rule
or Specify word
length
, which enables a field for user input.
Setting to Inherit via internal rule
computes the
fullprecision product word length and fraction length. Internal Rule for Product
Data Types (DSP System Toolbox) in DSP System
Toolbox™ User's Guide describes the fullprecision
Product output internal rule.
Setting to Specify word length
allows you to define the
word length. The block computes a bestprecision fraction length based on
the word length specified and the precomputed worstcase (min/max) real
world value Product output result. The worstcase
Product output result is precomputed by multiplying
the denormalized factor with the worstcase (min/max) input signal range,
purely based on the input signal data type.
The block uses the Rounding mode when the result of a fixedpoint calculation does not map exactly to a number representable by the data type and scaling storing the result. For more information, see Rounding Modes (DSP System Toolbox) or Rounding Mode: Simplest (FixedPoint Designer).
This parameter only applies when the input is a fixedpoint signal. It can
be set to Inherit via internal rule
, Same as
product output
, or Specify word length
, in
which case a field is enabled for user input
Setting to Inherit via internal rule
computes the
fullprecision sum word length and fraction length, based on the two inputs
to the Sum in the fixedpoint Hard
Decision Algorithm signal flow diagram. The rule is the same as
the fixedpoint inherit rule of the internal Accumulator data
type parameter in the Simulink
Sum
block.
Setting to Specify word length
allows you to define the
word length. A best precision fraction length is computed based on the word
length specified in the precomputed maximum range necessary for the
demodulated algorithm to produce accurate results. The signed fixedpoint
data type that has the best precision fully contains the values in the range $$2*(\sqrt{M}1)$$ for the specified word length.
Setting to Same as product output
allows the Sum data
type to be the same as the Product output data type
(when Product output is used). If the Product
output is not used, then this setting will be ignored and the
Inherit via internal rule
Sum setting will be
used.
Port  Supported Data Types

Input

Var

Output

[1] Smith, Joel G., “OddBit Quadrature AmplitudeShift Keying,” IEEE Transactions on Communications, Vol. COM23, March 1975, 385–389.
