narnet

Nonlinear autoregressive neural network

Description

example

narnet(feedbackDelays,hiddenSizes,feedbackMode,trainFcn) takes these arguments:

  • Row vector of increasing 0 or positive feedback delays, feedbackDelays

  • Row vector of one or more hidden layer sizes, hiddenSizes

  • Type of feedback, feedbackMode

  • Training function, trainFcn

and returns a NAR neural network.

You can train NAR (nonlinear autoregressive) neural networks to predict a time series from the past values of that series.

Examples

collapse all

Train a nonlinear autoregressive (NAR) neural network and predict on new time series data. Predicting a sequence of values in a time series is also known as multistep prediction. Closed-loop networks can perform multistep predictions. When external feedback is missing, closed-loop networks can continue to predict by using internal feedback. In NAR prediction, the future values of a time series are predicted only from past values of that series.

Load the simple time series prediction data.

T = simplenar_dataset;

Create a NAR network. Define the feedback delays and size of the hidden layers.

net = narnet(1:2,10);

Prepare the time series data using preparets. This function automatically shifts input and target time series by the number of steps needed to fill the initial input and layer delay states.

[Xs,Xi,Ai,Ts] = preparets(net,{},{},T);

A recommended practice is to fully create the network in an open loop, and then transform the network to a closed loop for multistep-ahead prediction. Then, the closed-loop network can predict as many future values as you want. If you simulate the neural network in closed-loop mode only, the network can perform as many predictions as the number of time steps in the input series.

Train the NAR network. The train function trains the network in an open loop (series-parallel architecture), including the validation and testing steps.

net = train(net,Xs,Ts,Xi,Ai);

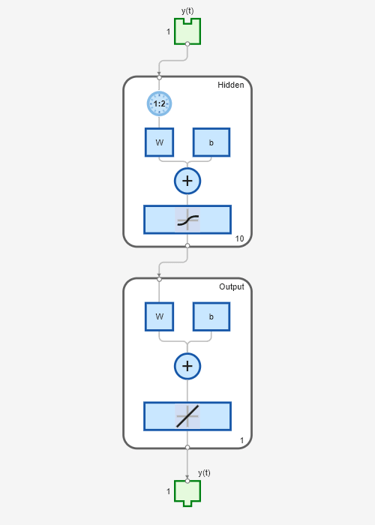

Display the trained network.

view(net)

Calculate the network output Y, final input states Xf, and final layer states Af of the open-loop network from the network input Xs, initial input states Xi, and initial layer states Ai.

[Y,Xf,Af] = net(Xs,Xi,Ai);

Calculate the network performance.

perf = perform(net,Ts,Y)
perf =

   1.0100e-09

To predict the output for the next 20 time steps, first simulate the network in closed-loop mode. The final input states Xf and layer states Af of the open-loop network net become the initial input states Xic and layer states Aic of the closed-loop network netc.

[netc,Xic,Aic] = closeloop(net,Xf,Af);

Display the closed-loop network. The network has only one input. In closed-loop mode, this input connects to the output. A direct delayed output connection replaces the delayed target input.

view(netc)

To simulate the network 20 time steps ahead, input an empty cell array of length 20. The network requires only the initial conditions given in Xic and Aic.

Yc = netc(cell(0,20),Xic,Aic)
Yc =

  1x20 cell array

  Columns 1 through 5

    {[0.8346]}    {[0.3329]}    {[0.9084]}    {[1.0000]}    {[0.3190]}

  Columns 6 through 10

    {[0.7329]}    {[0.9801]}    {[0.6409]}    {[0.5146]}    {[0.9746]}

  Columns 11 through 15

    {[0.9077]}    {[0.2807]}    {[0.8651]}    {[0.9897]}    {[0.4093]}

  Columns 16 through 20

    {[0.6838]}    {[0.9976]}    {[0.7007]}    {[0.4311]}    {[0.9660]}

Input Arguments

collapse all

Zero or positive feedback delays, specified as an increasing row vector.

Sizes of the hidden layers, specified as a row vector of one or more elements.

Type of feedback, specified as either 'open', 'closed', or 'none'.

Training function name, specified as one of the following.

Training FunctionAlgorithm
'trainlm'

Levenberg-Marquardt

'trainbr'

Bayesian Regularization

'trainbfg'

BFGS Quasi-Newton

'trainrp'

Resilient Backpropagation

'trainscg'

Scaled Conjugate Gradient

'traincgb'

Conjugate Gradient with Powell/Beale Restarts

'traincgf'

Fletcher-Powell Conjugate Gradient

'traincgp'

Polak-Ribiére Conjugate Gradient

'trainoss'

One Step Secant

'traingdx'

Variable Learning Rate Gradient Descent

'traingdm'

Gradient Descent with Momentum

'traingd'

Gradient Descent

Example: For example, you can specify the variable learning rate gradient descent algorithm as the training algorithm as follows: 'traingdx'

For more information on the training functions, see Train and Apply Multilayer Shallow Neural Networks and Choose a Multilayer Neural Network Training Function.

Data Types: char

Introduced in R2010b
