roadrunner.hdmap.LaneMarking

Create lane markings in RoadRunner HD Map using MATLAB

Since R2022b

expand all in page

    Description

    A roadrunner.hdmap.LaneMarking object enables you to define the road lane marking object in a RoadRunner HD Map scene model.

    Creation

    Syntax

    laneMarking = roadrunner.hdmap.LaneMarking()
    laneMarking = roadrunner.hdmap.LaneMarking(Name=Value)

    Description

    laneMarking = roadrunner.hdmap.LaneMarking() creates an empty lane marking.

    laneMarking = roadrunner.hdmap.LaneMarking(Name=Value) sets the properties of the lane marking using name-value pairs.

    example

    Properties

    expand all

    ID of the lane marking element, specified as a character vector or string scalar. The ID can be referenced by the lane elements using roadrunner.hdmap.MarkingReference (RoadRunner) object.

    Data Types: char | string

    Relative path for lane marking asset, specified as a roadrunner.hdmap.RelativeAssetPath (RoadRunner) object. To define the lane markings on a span, RelativeAssetPath can be used to reference existing marking assets in the library.

    Examples

    collapse all

    This example uses:

    Open Live Script

    Create an empty RoadRunner HD Map by calling the roadrunnerHDMap object.

    rrMap = roadrunnerHDMap()
    rrMap =
  roadrunnerHDMap with properties:

                 Author: ""
           GeoReference: [0 0]
     GeographicBoundary: []
                  Lanes: [0×1 roadrunner.hdmap.Lane]
            SpeedLimits: [0×1 roadrunner.hdmap.SpeedLimit]
         LaneBoundaries: [0×1 roadrunner.hdmap.LaneBoundary]
             LaneGroups: [0×1 roadrunner.hdmap.LaneGroup]
           LaneMarkings: [0×1 roadrunner.hdmap.LaneMarking]
              Junctions: [0×1 roadrunner.hdmap.Junction]
           BarrierTypes: [0×1 roadrunner.hdmap.BarrierType]
               Barriers: [0×1 roadrunner.hdmap.Barrier]
              SignTypes: [0×1 roadrunner.hdmap.SignType]
                  Signs: [0×1 roadrunner.hdmap.Sign]
      StaticObjectTypes: [0×1 roadrunner.hdmap.StaticObjectType]
          StaticObjects: [0×1 roadrunner.hdmap.StaticObject]
    StencilMarkingTypes: [0×1 roadrunner.hdmap.StencilMarkingType]
        StencilMarkings: [0×1 roadrunner.hdmap.StencilMarking]
      CurveMarkingTypes: [0×1 roadrunner.hdmap.CurveMarkingType]
          CurveMarkings: [0×1 roadrunner.hdmap.CurveMarking]
            SignalTypes: [0×1 roadrunner.hdmap.SignalType]
                Signals: [0×1 roadrunner.hdmap.Signal]

    Create a relative path to an asset. In this example, we create a relative path to the dashed single white asset. This path is relative to the Assets folder of your RoadRunner project.

    path = roadrunner.hdmap.RelativeAssetPath(AssetPath="/Assets/Markings/DashedSingleWhite.rrlms")
    path =
  RelativeAssetPath with properties:

    AssetPath: "/Assets/Markings/DashedSingleWhite.rrlms"

    Create the road lane marking using the roadrunner.hdmap.LaneMarking object. Specify the lane marking information for the lane marking id and the asset path.

    rrMap.LaneMarkings = roadrunner.hdmap.LaneMarking(ID="Dashed1", AssetPath=path)
    rrMap =
  roadrunnerHDMap with properties:

                 Author: ""
           GeoReference: [0 0]
     GeographicBoundary: []
                  Lanes: [0×1 roadrunner.hdmap.Lane]
            SpeedLimits: [0×1 roadrunner.hdmap.SpeedLimit]
         LaneBoundaries: [0×1 roadrunner.hdmap.LaneBoundary]
             LaneGroups: [0×1 roadrunner.hdmap.LaneGroup]
           LaneMarkings: [1×1 roadrunner.hdmap.LaneMarking]
              Junctions: [0×1 roadrunner.hdmap.Junction]
           BarrierTypes: [0×1 roadrunner.hdmap.BarrierType]
               Barriers: [0×1 roadrunner.hdmap.Barrier]
              SignTypes: [0×1 roadrunner.hdmap.SignType]
                  Signs: [0×1 roadrunner.hdmap.Sign]
      StaticObjectTypes: [0×1 roadrunner.hdmap.StaticObjectType]
          StaticObjects: [0×1 roadrunner.hdmap.StaticObject]
    StencilMarkingTypes: [0×1 roadrunner.hdmap.StencilMarkingType]
        StencilMarkings: [0×1 roadrunner.hdmap.StencilMarking]
      CurveMarkingTypes: [0×1 roadrunner.hdmap.CurveMarkingType]
          CurveMarkings: [0×1 roadrunner.hdmap.CurveMarking]
            SignalTypes: [0×1 roadrunner.hdmap.SignalType]
                Signals: [0×1 roadrunner.hdmap.Signal]

    This example uses:

    Open Live Script

    Add markings to road boundaries in a RoadRunner HD Map, and build a RoadRunner scene using the HD Map.

    Create an empty RoadRunner HD Map by using the roadrunnerHDMap object.

    rrMap = roadrunnerHDMap;

    Create a road lane 100 meters in length using the roadrunner.hdmap.Lane object. Specify the lane ID, coordinates defining the centerline of the lane, driving direction, and lane type.

    rrMap.Lanes(1) = roadrunner.hdmap.Lane(ID="Lane",Geometry=[0 0; 0 50; 0 100],TravelDirection="Forward",LaneType="Driving");

    Create the lane boundaries of the road using the roadrunner.hdmap.LaneBoundary object. For each boundary, specify the lane ID and the coordinates that define the points of the lane boundary.

    rrMap.LaneBoundaries(1) = roadrunner.hdmap.LaneBoundary(ID="Left",Geometry=[-3 0; -3 50;-3 100]);
rrMap.LaneBoundaries(2) = roadrunner.hdmap.LaneBoundary(ID="Right",Geometry=[3 0; 3 50; 3 100]);

    Link the lane boundaries to the lane. Define the left and the right lane boundaries for the lane, and specify the alignment between the lane and lane boundaries.

    leftBoundary(rrMap.Lanes(1),"Left",Alignment="Forward");
rightBoundary(rrMap.Lanes(1),"Right",Alignment="Forward");

    To add solid yellow lane markings to your lane boundaries, first extract the corresponding lane marking asset using the roadrunner.hdmap.RelativeAssetPath object. For more information about these assets, see RoadRunner Asset Types (RoadRunner).

    solidYellowAsset = roadrunner.hdmap.RelativeAssetPath(AssetPath="Assets/Markings/SolidSingleYellow.rrlms");

    Next, create a solid yellow lane marking using the roadrunner.hdmap.LaneMarking object. Specify the lane marking ID and the path to the solid yellow lane marking asset.

    rrMap.LaneMarkings = roadrunner.hdmap.LaneMarking(ID="SolidYellow",AssetPath=solidYellowAsset);

    Create a reference to the solid yellow marking to apply to the lane boundaries using the roadrunner.hdmap.MarkingReference object.

    markingRefSY = roadrunner.hdmap.MarkingReference(MarkingID=roadrunner.hdmap.Reference(ID="SolidYellow"));

    Use parametric attributes to apply this lane marking along the entire lengths of the left and right lane boundaries.

    markingSpan = [0 1];
markingAttributeSY = roadrunner.hdmap.ParametricAttribution(MarkingReference=markingRefSY,Span=markingSpan);
rrMap.LaneBoundaries(1).ParametricAttributes = markingAttributeSY;
rrMap.LaneBoundaries(2).ParametricAttributes = markingAttributeSY;

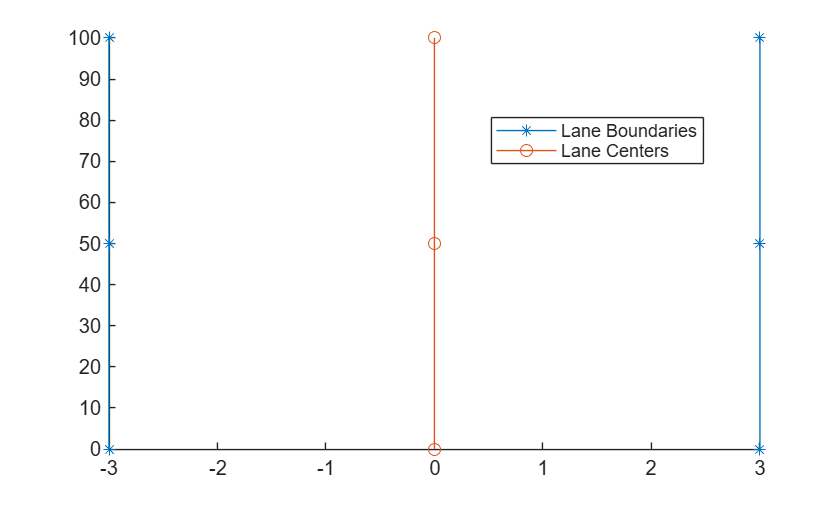

    Plot the lane centers and lane boundaries to preview them before importing the HD Map into RoadRunner.

    plot(rrMap);

    Figure contains an axes object. The axes object contains 2 objects of type line. These objects represent Lane Boundaries, Lane Centers.

    Write the modified HD Map to a binary file.

    filename = "MyMap.rrhd";
write(rrMap,filename)

    To open RoadRunner using MATLAB®, first specify the path to your RoadRunner project. This code shows the path for a sample project folder location in Windows®. If you are using RoadRunner for the first time, you must install RoadRunner and activate your RoadRunner license. For more information, see Install and Activate RoadRunner (RoadRunner).

    rrProjectPath = "C:\RR\MyProject";

    Specify the path to your local RoadRunner installation folder. This code shows the path for the default installation location in Windows.

    rrAppPath = "C:\Program Files\RoadRunner R2025b\bin\win64";

    Open RoadRunner using the roadrunner object from the MATLAB command line. Alternatively, you can start the RoadRunner application interactively, using the roadrunnerSetup (RoadRunner) function. This function opens a dialog box to specify the project folder and installation folder to use when opening RoadRunner.

    rrApp = roadrunner(rrProjectPath,InstallationFolder=rrAppPath);

    Import the RoadRunner HD Map file MyMap.rrhd into your RoadRunner scene, and build the RoadRunner HD Map data. Before you build the scene, you must activate your RoadRunner Scene Builder license. RoadRunner Scene Builder is an add-on product that requires an addition to your RoadRunner license. For more details, see RoadRunner Scene Builder.

    file = fullfile(pwd,"MyMap.rrhd");
importScene(rrApp,file,"RoadRunner HD Map");

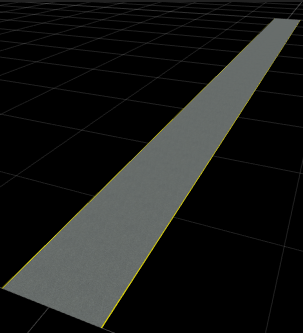

    This figure shows the built scene in the RoadRunner canvas.

    A RoadRunner scene with a single‑lane road bordered on both sides by solid yellow lines.

    Version History

    Introduced in R2022b
