Design Event-Based Simulink Model

Step 2 of 4 in SoC-Based Multicore Modeling Workflow for Infineon AURIX Microcontrollers

• 1
• 2
• 3

Design models for algorithms that handle asynchronous events such as hardware-generated interrupts. These models support execution of blocks in response to events that are asynchronous with respect to the periodic timing source of the system. For example, a peripheral device might signal completion of an input operation by generating an interrupt. The system must service such interrupts, for example, by acquiring data from the interrupting device.

To create and configure an event-based Simulink model:

1. Create a new blank model.

2. Configure the model for Infineon AURIX hardware board.

   1. In the Simulink editor, press Ctrl+E or click Modeling > Model Settings to open the Configuration Parameters dialog box.

   2. Select the Hardware Implementation pane and set Hardware board to Infineon AURIX TC3x and Processing Unit to TriCore 1.

   3. Select the Model Referencing pane and set Total number of instances allowed per top model to One.



3. Save the model. For example, save as tc3x_ifx_tricore1.slx.

4. Create an asynchronous task for the event-based model.

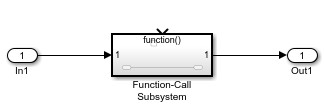

   1. In the Simulink editor, add a Function-Call Subsystem block to the model. Connect an Inport block to the input port and an Outport block to the port of the Function-Call Subsystem block.

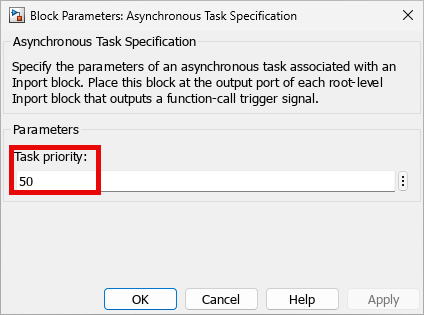

   2. Add an Asynchronous Task Specification block to the model. The task priority value must be set greater than 40 as the internal scheduling operates at a priority of 40. Set the Task priority parameter to 50.



   3. Add an Inport block and double-click it to open Block Parameter dialog box. On the Signal Attributes tab, enable Output function call parameter.



   4. Connect this Inport block to the input port of the Asynchronous Task Specification block.

   5. Connect the output port of Asynchronous Task Specification block to the function() input of the Function-Call Subsystem block.

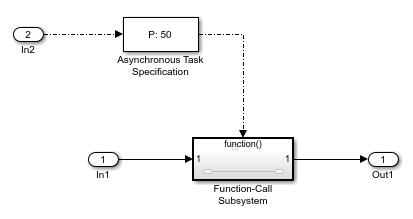

   The model now looks similar to the figure.



5. Open the Function-Call subsystem and add the blocks you need for your application. For example, consider these connections.

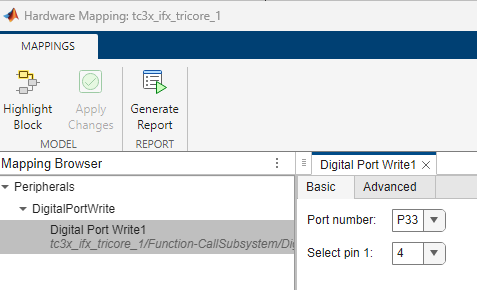

6. To view and configure the peripheral blocks and their parameters, on the Simulink toolstrip, on the Hardware tab, click Hardware Mapping. For more information, see Map Tasks and Peripherals Using Hardware Mapping
