Design Time-Based Simulink Model

Step 1 of 4 in SoC-Based Multicore Modeling Workflow for Infineon AURIX Microcontrollers

• 1
• 2
• 3

Design models for algorithms that depend on time-based scheduling and for which you intend to generate code for an Infineon^® AURIX™ microcontroller. These models use a periodic interrupt source such as a hardware timer for timing.

To create and configure a time-based Simulink model:

1. Create a new blank model.

2. Configure the model for Infineon AURIX hardware board.

   1. In the Simulink editor, press Ctrl+E or click Modeling > Model Settings to open the Configuration Parameters dialog box.

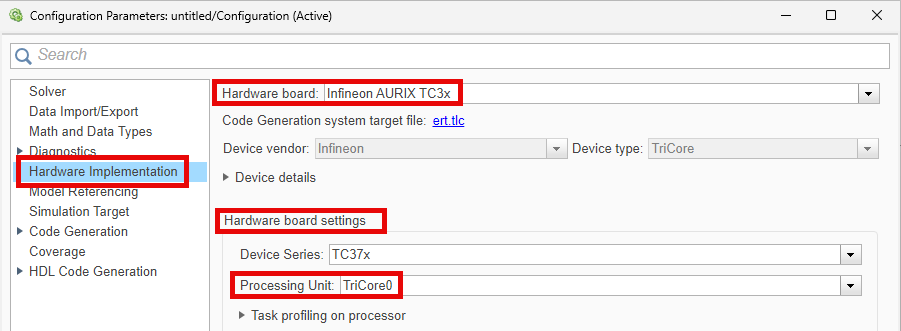

   2. Select the Hardware Implementation pane and set Hardware board to Infineon AURIX TC3x and the Processing Unit to TriCore0.



   3. Select the Model Referencing pane and set Total number of instances allowed per top model to One.



3. Save the model. For example, save as tc3x_ifx_tricore_0.slx.

4. In the Simulink editor, add the blocks you need for your application. For example, consider these connections.

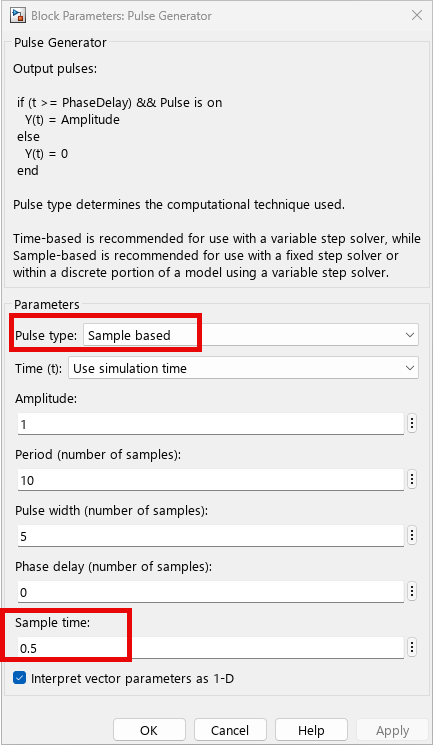

   For time-based scheduling, you must provide a sample time for the source blocks used in the application model. For example, consider these Pulse Generator block parameter settings.



   You can also group all the blocks into a subsystem and provide sample time for the subsystem. For more information, see Sample Time in Subsystems.

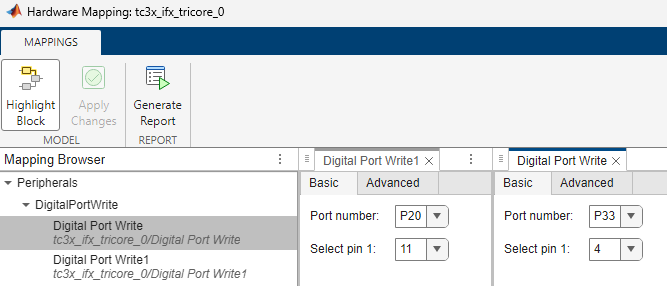

5. To view and configure the peripheral blocks and their parameters, on the Simulink toolstrip, on the Hardware tab, click Hardware Mapping. For more information, see Map Tasks and Peripherals Using Hardware Mapping.
