Link Artifacts
R2026bIf you have Requirements Toolbox, you can link Simulink Fault Analyzer artifacts to other linkable items. These artifacts include faults, conditionals, and Safety Analysis Manager spreadsheet cells and rows.
Apps
| Requirements Editor | Create and edit requirements |
| Safety Analysis Manager | Create and edit documents for safety analyses (Since R2023b) |
Functions
accept | Accept detected change in Safety Analysis Manager document (Since R2024b) |
detectChanges | Detect changes to linked artifacts in Safety Analysis Manager document (Since R2024b) |
navigate | Navigate to elements in Safety Analysis Manager documents and changed artifacts (Since R2024b) |
getLinks | Get links associated with spreadsheet cell or row in Safety Analysis Manager (Since R2023b) |
slreq.load | Load requirement set, link set, or Requirements Table block |
slreq.createLink | Create traceable links |
Objects
ChangeInformation | Detected changes in Safety Analysis Manager (Since R2024b) |
Topics
- Link Faults to Requirements, Tests, and Safety Analysis Manager Artifacts
Define traceability between faults and requirements, tests, or Safety Analysis Manager artifacts.
- Link Conditionals to Requirements, Tests, and Safety Analysis Manager Artifacts
Define traceability between conditionals and requirements, tests, or Safety Analysis Manager artifacts.
- Link Safety Analysis Manager Spreadsheet Cells and Rows to Requirements, Tests, and Faults
Define traceability between spreadsheet cells and rows and requirements, tests, faults, or conditionals.
- Link Safety Analysis Manager Fault Tree Artifacts to Requirements, Tests, and Faults
Link fault tree events, gates, and failure models to requirements, tests, faults, and conditionals. (Since R2026b)
- Create Stereotypes from Built-In Profiles
Create profiles from built-in templates in the Profile Editor to define custom safety-related requirements and links.
- Track Changes in Safety Analysis Manager Spreadsheets
Identify and manage changes to links and linked artifacts in Safety Analysis Manager spreadsheets contained in projects. (Since R2024b)
- Track Changes in Safety Analysis Manager Fault Tree Documents
Identify and manage changes to links and linked artifacts in Safety Analysis Manager fault tree documents contained in projects. (Since R2026b)
Related Information
Featured Examples
Evaluate Fault Combinations on a Fault-Tolerant Fuel System
Simulate faults on a fault-tolerant fuel system and analyze their effects in an FMEA.
Conduct Fault Sensitivity Study on Warehouse Robot
Adjust fault behavior parameters to test robot brake system and verify results in an FMEA.

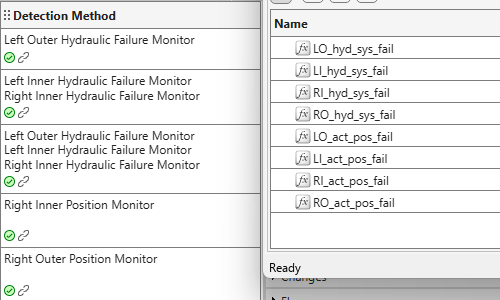

Verify Fault Detection Logic in Aircraft Elevator Control System
Use conditionals to verify that fault mitigation logic deploys and to analyze controller behavior in an FMEA.
Test Fault Mitigation Logic by Using Fault Tree Analysis
Design fault mitigation logic by using a fault tree and verify its implementation in your design.

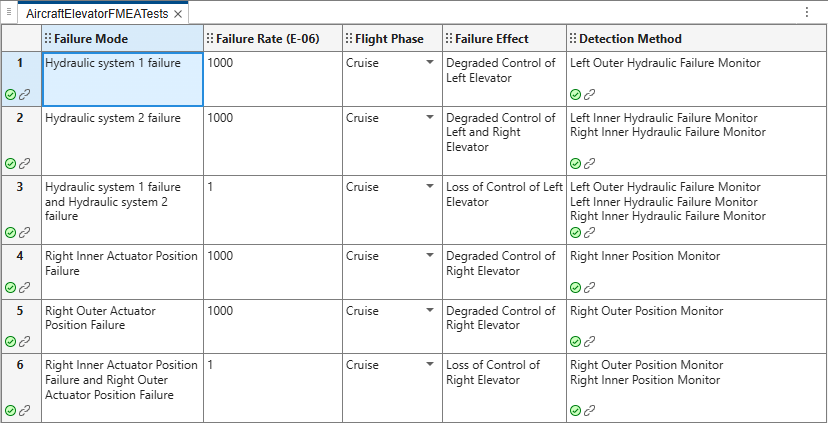

Perform Safety Analysis on Aircraft Elevator by Running Tests
Run tests in the Simulink Test Manager from the Safety Analysis Manager to analyze aircraft elevator fault detection logic.
Perform Fault Analysis on a Motor Drive Speed Sensor
Inject and simulate faults on a motor drive speed sensor.
Perform a Failure Mode and Effects Analysis on a Rotorcraft UAV
Use the Safety Analysis Manager and MATLAB® to construct safety properties in an FMEA and validate them for a UAV.
