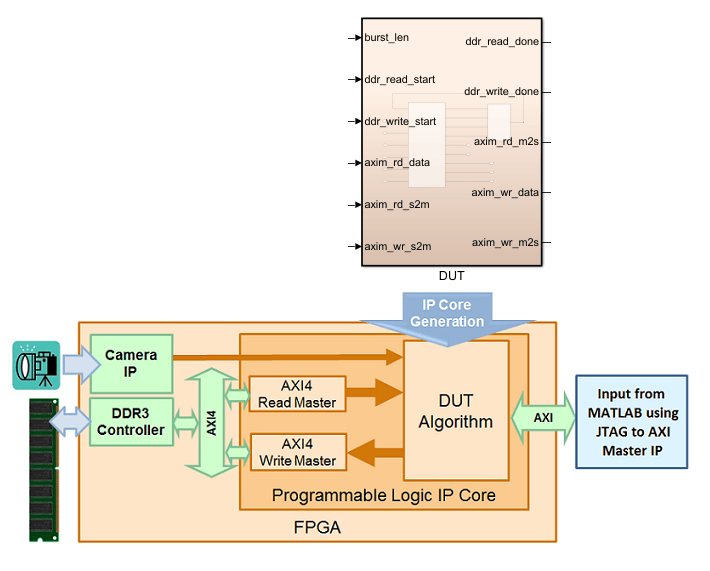

For designs that require accessing large data sets from an external memory, model your
algorithm with a simplified AXI4 Master protocol. When you run the
Generation workflow, HDL Coder™ generates an IP core with AXI4 Master interfaces. The AXI4 Master
interface can communicate between your design and the external memory controller IP by
using the AXI4 Master protocol. Use the AXI4 Master interface when your:
Design targets multi-frame video processing applications. You can store the image data in external memory, such as a DDR3 memory on board, and then read or write the images to your design in a burst fashion for high-speed processing.
Algorithm must access memory data in a non-streaming arbitrary pattern.
DUT IP core must control other IPs with the AXI4 slave interface in the system. This capability is especially useful in standalone FPGA devices.
To map the DUT ports to AXI4 Master interfaces, use the simplified AXI4 Master
protocol. You do not have to model the actual AXI4 Master protocol and instead you
can use the simplified protocol. When you run the
Generation workflow, the generated HDL code contains a wrapper logic
that translates between the simplified protocol and the actual AXI4 Master protocol.
The simplified protocol requires you to use less protocol signals, eases the
handshaking mechanism between valid and ready signals, and supports bursts of
Use the simplified AXI4 Master write protocol for a write transaction and the simplified AXI4 Master read protocol for a read transaction. This figure shows the timing diagram for the signals that you model at the DUT input and output interfaces for an AXI4 Master write transaction.
The DUT waits for
wr_ready to become high to initiate a write
wr_ready becomes high, the DUT can send out the
write request. The write request consists of the
Write Master to Slave bus signals. This bus consists of
wr_addr specifies the starting
address that DUT wants to write to. The
wr_len signal corresponds
to the number of data elements in this write transaction.
can be sent as long as
wr_valid is high. When
wr_ready becomes low, the DUT must stop sending data within
one clock cycle, and the
Data signal becomes invalid. If the DUT
continues to send data after one clock cycle, the data is ignored.
The simplified AXI4 Master Protocol supports pipelined requests, so it is not
required to wait for the
wr_complete signal to be high before
issuing a subsequent write request. The interface supports up to 16 transactions (or
16 data words) before the pipeline stalls and the
Write Master to Slave bus
signals at the DUT output interface.
Data: The data that you want to transfer, valid
each cycle of the transaction.
Write Master to Slave bus that consists of:
wr_addr: Starting address of the write
transaction that is sampled at the first cycle of the
transaction. The address is specified in bytes.
wr_len: The number of data values that
you want to transfer, sampled at the first cycle of the
wr_len signal is
specified in words. This means each unit of
wr_len is a complete data element.
For example, when
2, and the bit width of data is
128 bit, two
128-bit data elements are written.
wr_valid: When this control signal
becomes high, it indicates that the
signal sampled at the output is valid.
Write Slave to Master bus that consists of:
wr_complete (optional signal): Control signal that
when remains high for one clock cycle indicates that the write
transaction has completed. The next burst of data can be sent after
wr_complete asserts. The early assertion of
wr_complete makes the average latency nearly
3 clock cycles between two bursts, which makes
the write operation pipelined and improves the write throughput.
wr_ready: This signal corresponds to the back
pressure from the slave IP core or external memory. When this control
signal goes high, it indicates that data can be sent. When
wr_ready is low, the DUT must stop sending data
within one clock cycle. You can also use the
signal to determine whether the DUT can send a second burst signal
immediately after the first burst signal has been sent. Multiple burst
signals are supported, which means that the
signal remains high to accept the second burst immediately after the
last element of the first burst has been accepted. Using
wr_ready to determine when to start the next
burst can reduce the average latency between two bursts to less than
3 clock cycles.
wr_bvalid (optional signal): Response signal from
the slave IP core that you can use for diagnosis purposes. The
wr_bvalid signal becomes high after the AXI4
interconnect accepts each burst transaction. If
wr_len is greater than
the AXI4 Master write module splits the large burst signal into
wr_bvalid becomes high for each
wr_bresp (optional signal): Response signal from
the slave IP core that you can use for diagnosis purposes. Use this
signal with the
The AXI4 Master protocol supports a maximum burst size of
When you have a large burst of size greater than
256, the AXI
Master interface in the generated HDL IP core divides the large burst into multiple
smaller bursts with size
256. Therefore, even for large bursts of
data, you see an improved write throughput.
This figure shows the timing diagram for the signals that you model at the DUT
input and output interfaces for an AXI4 Master read transaction. These signals
Read Master to Slave Bus,
Read Slave to Master Bus.
The DUT waits for
rd_aready to become high to initiate a read
rd_aready is high, the DUT can send out the read
request. The read request consists of the
rd_avalid signals of the
Read Master to Slave bus. The slave IP or the external memory
responds to the read request by sending the
Data at each clock
rd_len signal corresponds to the number of data values
to read. The DUT can receive
Data as long as
rd_dvalid is high.
To model a read request, at the DUT output interface, model the
Master to Slave bus that consists of:
rd_addr: Starting address for the read transaction
that is sampled at the first cycle of the transaction. The address is
specified in bytes.
rd_len: The number of data values that you want to
read, sampled at the first cycle of the transaction. The
rd_len signal is specified in words. This means
each unit of
rd_len is a complete data element. For
2, and the
bit width of data is
128 bit, two
128-bit data elements are read.
rd_avalid: Control signal that specifies whether
the read request is valid.
At the DUT input interface, implement the
rd_aready signal. This signal is part of the
Slave to Master bus and indicates when to accept read requests. You
can monitor the
rd_aready signal to determine whether the DUT can
send consecutive burst requests. When
rd_aready becomes high, it
indicates that the DUT can send a read request in the next clock cycle.
The simplified AXI4 Master Protocol supports pipelined requests, so it is not
required to wait for the read response to complete before issuing a subsequent read
request. The interface supports up to 4 read transactions before the pipeline stalls
rd_aready signal goes low.
At the DUT input interface, model the
Slave to Master bus signals.
Data: The data that is returned from the read
Read Slave to Master bus that consists of:
rd_dvalid: Control signal which
indicates that the
Data returned from the
read request is valid.
rd_rvalid (optional signal): response
signal from the slave IP core that you can use for diagnosis
rd_rresp (optional signal): Response
signal from the slave IP core that indicates the status of
the read transaction.
At the DUT output interface, you can optionally implement the
rd_dready signal. This signal is part of the
Master to Slave bus and indicates when the DUT can start accepting
data. By default, if you do not map this signal to the AXI4 Master read interface,
the generated HDL IP core ties
rd_dready to logic high.
For IP cores that you generate, HDL Coder includes a base address register to support driver authoring for both
the AXI4 Master read and write channels. The base address register is added to the
address that is specified by the
DUT ADDR port to form the AXI4
Master address. This capability enables the driver to use an addressing mode that
programs a fixed register address with the base address of a buffer. The programmed
address together with the
DUT ADDR port is used to index the
buffer. By default, the registers take a value of zero, if you do not use
When you run the
IP Core Generation workflow or the
Simulink Real-Time FPGA I/O workflow, you can specify an
initial value for the AXI4 master data read and write base address registers. By
default, the initial value is zero. To specify a nonzero value:
In the target platform interface table, when you map an input DUT port to an AXI4 Master Read data port, or an output DUT port to an AXI4 Master Write data port interface, an Options button appears in the Interface Options column.
Click the Options button, and then specify the DefaultReadBaseAddress or DefaultWriteBaseAddress.

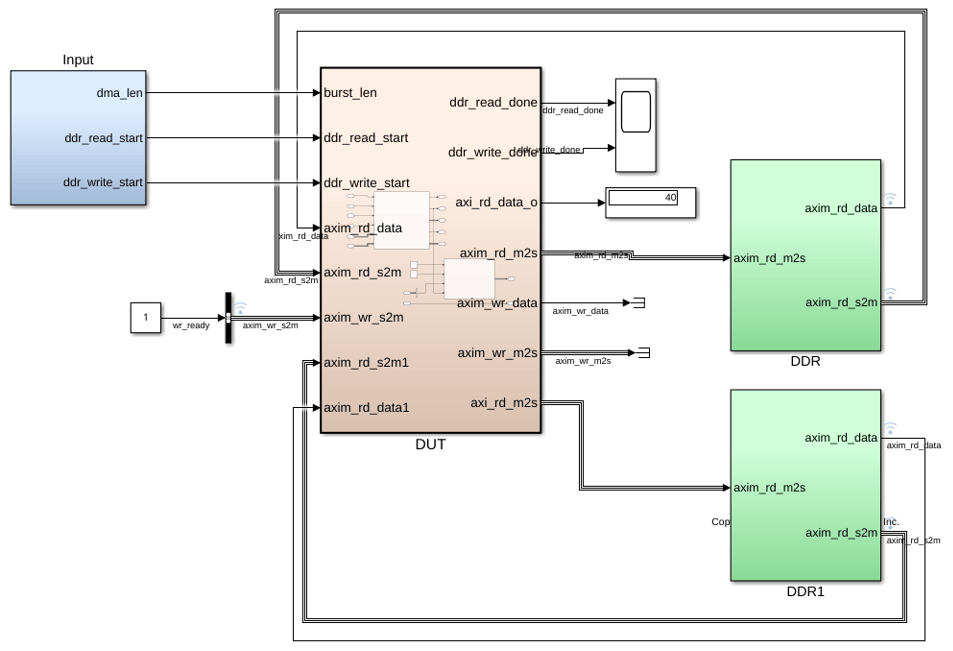

You can model your algorithm with Data and AXI4 Master protocol signals at the DUT ports and then map the signals to AXI4 Master interfaces.
To learn how to model your DUT algorithm for AXI4 Master interface mapping, open this Simulink® model. The DUT Subsystem contains a simple algorithm that reads data from the DDR and writes the data back to a different address in the DDR memory.
Double-click the DUT Subsystem. The DDR_Access_Controller Subsystem models the AXI Master read and write channels and has a Simple Dual Port RAM that calculates the wr_data signal. If you double-click the DDR_Access_Controller Subsystem, you see two Edge Detection Subsystem blocks that generate the two start pulses as input to each MATLAB Function block. One Edge Detection Subsystem and DDR Read Controller MATLAB Function models the read transaction. The other Edge Detection Subsystem and DDR Write Controller MATLAB Function models the write transaction. You can modify this design to model only the write transaction or the read transaction by using one Edge Detection Subsystem and the corresponding MATLAB Function block.
The DDR Read Controller is modeled as a state machine with four states: INIT, IDLE, READ_BURST_START, and DATA_COUNT. The INIT state initializes the read signals and the RAM input signals. When the start signal goes high, the state machine switches to the IDLE state, and then waits for the
rd_aready signal to become high. When
rd_aready becomes high, the state machine transitions to the READ_BURST_START state and the DUT starts reading data. The state machine then unconditionally switches to the DATA_COUNT state and continues to read data till
rd_avalid goes low.
The DDR Write Controller is modeled similar to the Read channel as a state machine with four states : IDLE, WRITE_BURST_START, DATA_COUNT, and ACK_WAIT. The DUT is in the IDLE state and then switches to the WRITE_BURST_START state where it waits for the
wr_ready signal. When
wr_ready becomes high, the state machine switches to the DATA_COUNT state and starts writing data. The data is valid when
wr_valid is high. The DUT continues to write data when
wr_ready is high. As
wr_ready becomes low, the state machine switches to the ACK_WAIT state and then waits for the ready signal to initiate the next write transaction.

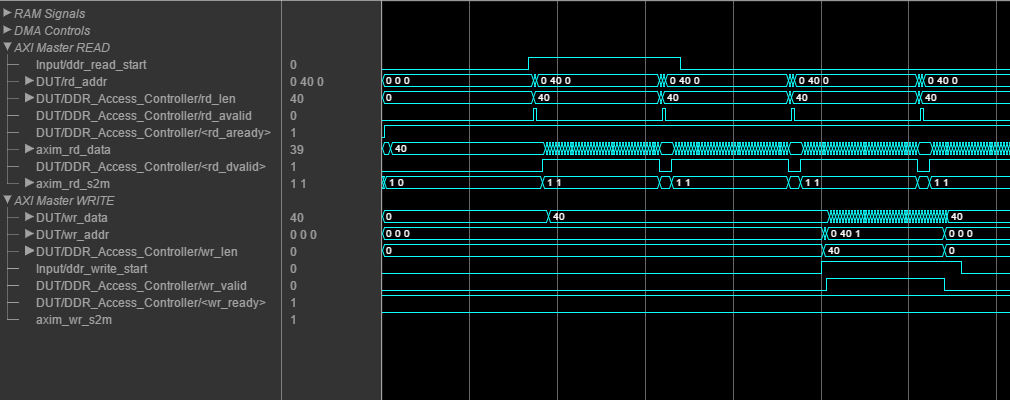

To see the simplified AXI4 Master protocol in effect, simulate the model. If you have DSP System Toolbox™ installed, you can view and analyze the results in the Logic Analyzer.
You can use the IP Core Generation workflow to generate an HDL IP core with the AXI4 Master interface. If you have HDL Verifier™ installed, and you use the Xilinx Zynq ZC706 board, then you can integrate the IP core into the Default System with External DDR3 memory access reference design.
To integrate your HDL IP core into larger reference designs, and to achieve higher
throughput when you use the AXI4 Master port to access external DDR memory, you may
want to use larger bit widths on the
Data port. The AXI4 Master
interface bus supports a maximum bit width of
Simulink® supports fixed-point data types that have word length of up to
128 bits. To model your DUT ports with word lengths greater
128 bits, use vector data types. If you use a vector port
such that the combined bit width of all the elements
in the vector is greater than
1024 bits, the Set Target
Interface task displays an error.

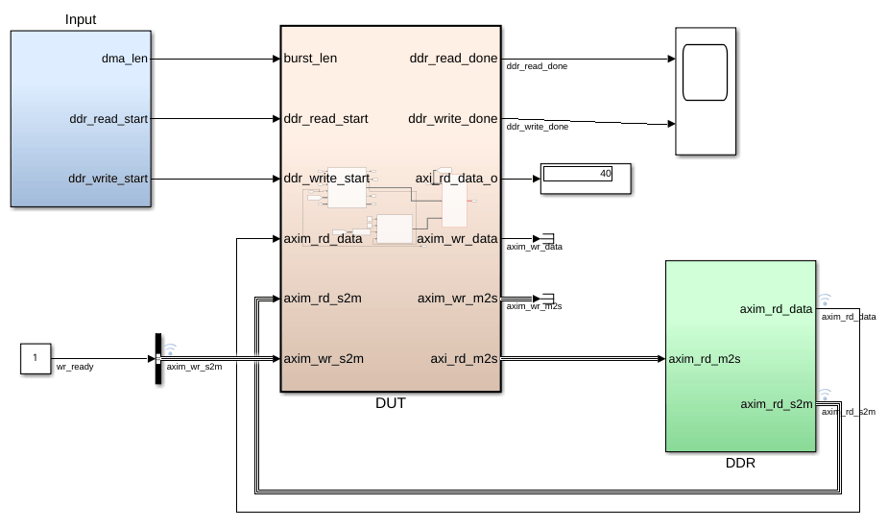

For example, in the
hdlcoder_axi_master model, to expand the
bit width of the
axim_rd_data port to
bits, change the
ddr_data parameter inside the DDR to
fi(([40:-1:1]),0,128,0) and then concatenate the 128-bit
input four times to generate an output of 512 bits. You can use a Vector Concatenate
block to output a combined bit width of 512 bits. To simulate the model, replace the
Simple Dual Port RAM block inside the DUT subsystem with a
Simple Dual port RAM System.
You can then map these DUT Data ports to
AXI Master Write ports in the
Target platform interface table, generate the HDL IP core, and integrate the IP core
into your Vivado® or Qsys reference designs. In the generated HDL code for the DUT IP
Data ports are mapped to
interfaces. Multiple FIFO blocks are generated corresponding to each element of the
ENTITY DUT_ip IS PORT( IPCORE_CLK : IN std_logic; -- ufix1 IPCORE_RESETN : IN std_logic; -- ufix1 AXI4_Master_Rd_RDATA : IN std_logic_vector(511 DOWNTO 0); -- ufix256 ... ... AXI4_Master_Wr_WDATA : OUT std_logic_vector(511 DOWNTO 0); -- ufix256 ... ); END DUT_ip;
This figure illustrates the order in which the vector data is written to and read form.
In the HDL code for the DUT IP core, you can see how the
AXI4_master_Wr_WDATA interfaces are mapped to the DUT ports
and the order in which data is written to the AXI4 Master interface and then read
... ... -------------------------------------------------------------------- AXI4 Master Read Sequence -------------------------------------------------------------------- AXI4_Master_Rd_RDATA_0 <= AXI4_Master_Rd_RDATA_unsigned(127 DOWNTO 0); AXI4_Master_Rd_RDATA_1 <= AXI4_Master_Rd_RDATA_unsigned_1(255 DOWNTO 128); AXI4_Master_Rd_RDATA_2 <= AXI4_Master_Rd_RDATA_unsigned_7(383 DOWNTO 256); AXI4_Master_Rd_RDATA_3 <= AXI4_Master_Rd_RDATA_unsigned_7(511 DOWNTO 384); -------------------------------------------------------------------- AXI4 Master Write Sequence -------------------------------------------------------------------- AXI4_Master_Wr_WDATA_tmp <= unsigned(AXI4_Master_Wr_WDATA_Vec_3) & unsigned(AXI4_Master_Wr_WDATA_Vec_2) & unsigned(AXI4_Master_Wr_WDATA_Vec_1) & unsigned(AXI4_Master_Wr_WDATA_Vec_0); AXI4_Master_Wr_WDATA <= std_logic_vector(AXI4_Master_Wr_WDATA_tmp); ... ...
If you use a nonstandard bit width for the AXI4 Master
Data port is upgraded to a standard bit width container
that has a bigger size. Standard bit widths include
1024 bits. For example, if you
use a vector that has four
35-bit elements, the resulting bit
140 bits (
35x4) is mapped to a
256-bit AXI4 Master interface. At the Write channel
Data port, bits
141 are padded with zeroes. At the Read channel
Data port, bits
141 are ignored.
Using nonstandard bit widths can have a performance impact because the entire bandwidth of the AXI4 Master interface is not used. To avoid performance hits, use standard AXI bit widths.
The HDL Coder software supports designs with multiple sample rates when you run the IP Core Generation workflow. When you map the interface ports to AXI4 Master interfaces, to use multiple sample rates, ensure that the DUT ports that map to these AXI4 interfaces run at the fastest rate of the design after HDL code generation.
To learn more, see Multirate IP Core Generation.
You can integrate the generated HDL IP core with AXI4 Master interfaces into these HDL Coder reference designs:
Default System with External DDR3 Memory Access:
When your target platform is
Xilinx Zynq ZC706 evaluation
Default System with External DDR4 Memory Access:
When your target platform is
Altera Arria10 SoC development
To use these reference designs, you must have HDL Verifier™ installed. This figure shows a high level block diagram of the reference design architecture.
In this architecture, the
HDL DUT IP block corresponds to the
IP core that is generated from the
IP Core Generation workflow.
Other blocks in the architecture represent the predefined reference design, that
consists of a MATLAB® based
JTAG AXI Master IP that is provided by
HDL Verifier. After you run the FPGA design on the board, using the
AXI Master IP, you can use the input data in MATLAB to initialize the onboard DDR3 external memory. The
IP core reads the input data from the external memory via the AXI4
Master interface. The IP core then performs the algorithm computation and writes the
result to DDR3 memory via the AXI4 Master interface. The
JTAG AXI Master
IP can read the result from DDR3 memory and then verify the result in
Synthesis tool: Must be
Altera QUARTUS II.
Xilinx ISE is not supported.
Target workflow: Use the
Generation workflow. To run the workflow, open the HDL
Workflow Advisor from your DUT algorithm in Simulink. MATLAB to HDL workflow is not supported.
Processor/FPGA synchronization: Must be
Free running mode.
