Single-Acting Actuator (TL)

R2026b

Single-acting linear actuator in a thermal liquid network

•

Single-Acting Actuator (TL) block

To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.

Libraries:
Simscape / Fluids / Thermal Liquid / Actuators

Description

The Single-Acting Actuator (TL) block models a linear actuator with a piston controlled by a single thermal liquid chamber. The actuator generates force in the extension and retraction strokes, but the actuation force depends on the gauge pressure at a single chamber.

The figure shows the key components of an actuator. Port A represents the thermal liquid chamber inlet. Port R represents the translating actuator piston, and port C represents the actuator case. Port H represents the thermal interface between the thermal liquid chamber and the environment.

Displacement

The block measures the piston displacement as the position at port R relative to port C. The Mechanical orientation parameter identifies the direction of piston displacement. The piston displacement is neutral, or 0, when the chamber volume is equal to the value of the Dead volume parameter. When the Piston displacement parameter is Provide input signal from Multibody joint, you input the piston displacement using port p. You can ensure that the derivative of the position signal is equal to the piston velocity by using a Translational Multibody Interface block to provide the piston displacement.

The direction of the piston motion depends on the Mechanical orientation parameter. If the mechanical orientation is positive, then the piston translation is positive in relation to the actuator case when the gauge pressure at port A is positive. The direction of motion reverses when the mechanical orientation is negative.

Hard Stop

A set of hard stops limit the piston range of motion. The block uses an implementation of the Translational Hard Stop block, which treats hard stops like spring-damper systems. The spring stiffness coefficient controls the restorative component of the hard-stop contact force and the damping coefficient the dissipative component.

The hard stops are located at the distal ends of the piston stroke. If the mechanical orientation is positive, then the lower hard stop is at x = 0, and the upper hard stop is at x = +stroke. If the mechanical orientation is negative, then the lower hard stop is at x = -stroke, and the upper hard stop is at x = 0.

Cushion

The block can model cushioning toward the extremes of the piston stroke. Select Cylinder end cushioning to slow the piston motion as it approaches the maximum extension, defined by the Piston stroke parameter. For more information on the functionality of a cylinder cushion, see the Cylinder Cushion (TL) block.

Friction

The block can model friction against piston motion. When you select Cylinder friction, the resulting friction is a combination of the Stribeck, Coulomb, and viscous effects. The block measures the pressure difference between the chamber pressure and the environment pressure. For more information on the friction model and its limitations, see the Cylinder Friction (TL) block.

Block Composite

This block is a composite component based on these Simscape™ Foundation blocks:

• Translational Mechanical Converter (TL)

• Translational Hard Stop

• Ideal Translational Motion Sensor

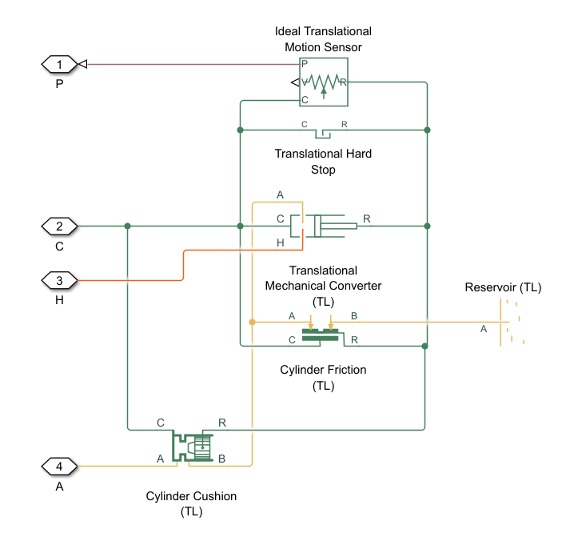

If you select Cylinder friction or Cylinder end cushioning, the block composite also includes the Cylinder Friction (TL) block or Cylinder Cushion (TL) block.

Ports

Input

p — Multibody piston position input, m

physical signal

Physical signal input associated with the piston position, in m. Connect this port to a Simscape Multibody™ network using a Translational Multibody Interface block.

Dependencies

To enable this port, set Piston displacement to Provide input signal from Multibody joint.

Programmatic Use

Port: p_in

Output

p — Piston position, m

physical signal

Physical signal output associated with the piston position, in m.

Dependencies

To enable this port, set Piston displacement to Calculate from velocity of port R relative to port C.

Programmatic Use

Port: p_out

Conserving

A — Liquid port

thermal liquid

Thermal liquid conserving port associated with chamber A.

Programmatic Use

Port: A

C — Actuator casing

translational mechanical

Translational mechanical conserving port associated with the actuator casing.

Programmatic Use

Port: C

R — Actuator piston

translational mechanical

Translational mechanical conserving port associated with the actuator piston.

Programmatic Use

Port: R

H — Heat transfer

thermal

Thermal conserving port associated with the thermal mass of the liquid volume.

Programmatic Use

Port: H

Parameters

Actuator

Mechanical orientation — Piston displacement direction

Pressure at A causes positive displacement of R relative to C (default) | Pressure at A causes negative displacement of R relative to C

Piston displacement direction. When you set this parameter to:

• Pressure at A causes positive displacement of R relative to C, the piston displacement is positive when the volume of liquid at port A is expanding. This motion corresponds to rod extension.

• Pressure at A causes negative displacement of R relative to C, the piston displacement is negative when the volume of liquid at port A is expanding. This motion corresponds to rod contraction.

Programmatic Use

Parameter:	mech_orientation
Values:	"foundation.enum.MechOrientationTranslational.Positive" | "foundation.enum.MechOrientationTranslational.Negative"

Piston cross-sectional area — Cross-sectional area of piston rod

0.01 m^2 (default) | positive scalar

Cross-sectional area of the piston rod.

Programmatic Use

Parameter: piston_area

Piston stroke — Maximum piston travel distance

0.1 m (default) | positive scalar

Maximum piston travel distance.

Programmatic Use

Parameter: stroke

Dead volume — Fluid volume at full piston retraction

1e-5 m^3 (default) | positive scalar

Volume of liquid when the piston displacement is 0. This parameter is the liquid volume when the piston is against the actuator end cap.

Programmatic Use

Parameter: dead_volume

Environment pressure specification — Reference environment pressure

Atmospheric pressure (default) | Specified pressure

Environment reference pressure. When you select Atmospheric pressure, the block assumes a pressure of 0.101325 MPa.

Programmatic Use

Parameter:	environment_spec
Values:	"foundation.enum.pressure_spec.atmospheric" | "foundation.enum.pressure_spec.specified"

Environment pressure — User-defined environmental pressure

0.101325 MPa (default) | positive scalar

User-defined environmental pressure.

Dependencies

To enable this parameter, set Environment pressure specification to Specified pressure.

Programmatic Use

Parameter: environment_pressure

Hard Stop

Hard stop model — Hard stop model

Stiffness and damping applied smoothly through transition region, damped rebound (default) | Full stiffness and damping applied at bounds, undamped rebound | Full stiffness and damping applied at bounds, damped rebound | Based on coefficient of restitution

Hard stop model to use when the piston is at full extension or full extraction. See the Translational Hard Stop block for more information.

Programmatic Use

Parameter:	hardstop_model
Values:	"simscape.enum.hardstop.smooth" | "simscape.enum.hardstop.fullundamped" | "simscape.enum.hardstop.fulldamped" | "simscape.enum.hardstop.modechart"

Hard-stop stiffness coefficient — Stiffness coefficient

1e10 N/m (default) | positive scalar

Piston stiffness coefficient.

Dependencies

To enable this parameter, set Hard stop model to one of these settings:

• Stiffness and damping applied smoothly through transition region, damped rebound

• Full stiffness and damping applied at bounds, undamped rebound

• Full stiffness and damping applied at bounds, damped rebound

Programmatic Use

Parameter: stiff_coeff

Hard-stop damping coefficient — Damping coefficient

150 N*s/m (default) | positive scalar

Piston damping coefficient.

Dependencies

To enable this parameter, set Hard stop model to one of these settings:

• Stiffness and damping applied smoothly through transition region, damped rebound

• Full stiffness and damping applied at bounds, undamped rebound

• Full stiffness and damping applied at bounds, damped rebound

Programmatic Use

Parameter: damping_coeff

Transition region — Application range of hard stop force model

0.1 mm (default) | positive scalar

Application range of the hard stop force model. The block does not apply the hard stop model when the maximum extension or retraction of the piston is outside of this range. In this situation, there is no additional force on the piston.

Dependencies

To enable this parameter, set Hard stop model to Stiffness and damping applied smoothly through transition region, damped rebound.

Programmatic Use

Parameter: transition

Coefficient of restitution — Ratio of final-to-initial relative speed between slider and stop after collision

0.7 (default) | unitless value between 0 and 1

Ratio of the final to the initial relative speed between the slider and the stop after the slider bounces.

Dependencies

To enable this parameter, set Hard stop model to Based on coefficient of restitution.

Programmatic Use

Parameter: coeff_rest

Static contact speed threshold — Threshold relative speed between slider and stop before collision

0.001 m/s (default) | nonnegative scalar

Threshold relative speed between the slider and stop before collision. When the slider hits the case with a speed less than the value of the Static contact speed threshold parameter, they stay in contact. Otherwise, the slider bounces. To avoid modeling static contact between the slider and the case, set this parameter to 0.

Dependencies

To enable this parameter, set Hard stop model to Based on coefficient of restitution.

Programmatic Use

Parameter: v_tol

Static contact release force threshold — Force needed to transition from contact mode to free mode

0.001 N (default) | positive scalar

Minimum force needed to release the slider from a static contact mode.

Dependencies

To enable this parameter, set Hard stop model to Based on coefficient of restitution.

Programmatic Use

Parameter: f_tol

Cushion

Cylinder end cushioning — Whether to model piston slow-down at maximum extension

off (default) | on

Whether to model piston slow-down at maximum extension. See the Cylinder Cushion (TL) block for more information.

Programmatic Use

Parameter:	cushion_spec
Values:	"true" | "false"

Cushion plunger cross-sectional area — Cylinder cushion plunger area

1e-4 m^2 (default) | positive scalar

Area of the plunger inside the actuator cushion element.

Dependencies

To enable this parameter, select Cylinder end cushioning.

Programmatic Use

Parameter: area_plunger

Cushion plunger length — Length of cushion plunger

1e-3 m (default) | positive scalar

Length of the cushion plunger.

Dependencies

To enable this parameter, select Cylinder end cushioning.

Programmatic Use

Parameter: length_plunger

Cushion orifice area — Area of orifice between cushion chambers

1e-6 m^2 (default) | positive scalar

Area of the orifice between the cushion chambers.

Dependencies

To enable this parameter, select Cylinder end cushioning.

Programmatic Use

Parameter: area_cushion_orifice

Leakage area between plunger and cushion sleeve — Gap between cushion plunger and sleeve

1e-7 m^2 (default) | positive scalar

Gap area between the cushion plunger and sleeve. This value contributes to numerical stability by maintaining continuity in the flow.

Dependencies

To enable this parameter, select Cylinder end cushioning.

Programmatic Use

Parameter: area_leak_plunger

Check valve cracking pressure differential — Cushion threshold pressure

0.01 MPa (default) | positive scalar

Pressure beyond which the valve operation is triggers. When the pressure difference between port A and P_env meets or exceeds the value of this parameter, the cushion valve begins to open.

Dependencies

To enable this parameter, select Cylinder end cushioning.

Programmatic Use

Parameter: p_crack_differential

Check valve maximum pressure differential — Cushion differential pressure maximum

0.1 MPa (default) | positive scalar

Maximum cushion valve differential pressure. This parameter provides an upper limit to the pressure so that system pressures remain realistic.

Dependencies

To enable this parameter, select Cylinder end cushioning.

Programmatic Use

Parameter: press_max_differential

Check valve maximum area — Area of fully opened cushion valve

1e-4 m^2 (default) | positive scalar

Cross-sectional area of the cushion valve in the fully open position.

Dependencies

To enable this parameter, select Cylinder end cushioning.

Programmatic Use

Parameter: check_valve_area_max

Check valve leakage area — Cushion valve gap area in fully closed position

1e-10 m^2 (default) | positive scalar

Sum of all gaps when the cushion check valve is in the fully closed position. Any area smaller than this value saturates to the specified leakage area. This value contributes to numerical stability by maintaining continuity in the flow.

Dependencies

To enable this parameter, select Cylinder end cushioning.

Programmatic Use

Parameter: check_valve_area_leak

Smoothing factor — Numerical smoothing factor

0.01 (default) | positive scalar

Continuous smoothing factor that introduces a layer of gradual change to the flow response when the variable orifice and check valve are in near-open or near-closed positions. Set this value to a nonzero value less than one to increase the stability of your simulation in these regimes.

Dependencies

To enable this parameter, select Cylinder end cushioning.

Programmatic Use

Parameter: smoothing_factor

Friction

Cylinder friction — Whether to model friction against piston motion

off (default) | on

Whether to model friction against piston motion. The block accounts for Coulomb, Stribeck, and viscous friction. See the Cylinder Friction (TL) block for more information.

Programmatic Use

Parameter:	friction_spec
Values:	"true" | "false"

Breakaway to Coulomb friction force ratio — Ratio of breakaway force to Coulomb friction force

1.2 (default) | positive scalar

Ratio of the breakaway force to the Coulomb friction force.

Dependencies

To enable this parameter, select Cylinder friction.

Programmatic Use

Parameter: breakaway_Coulomb_ratio

Breakaway friction velocity — Threshold for motion

0.1 m/s (default) | positive scalar

Threshold velocity for the motion against the friction force to begin.

Dependencies

To enable this parameter, select Cylinder friction.

Programmatic Use

Parameter: breakaway_velocity

Preload force — Initial force in cylinder due to seal assembly

20 N (default) | scalar

Initial force in the cylinder due to the seal assembly.

Dependencies

To enable this parameter, select Cylinder friction.

Programmatic Use

Parameter: preload_force

Coulomb friction force coefficient — Coulomb friction force coefficient

1e-6 N/Pa (default) | positive scalar

Coulomb force coefficient of friction.

Dependencies

To enable this parameter, select Cylinder friction.

Programmatic Use

Parameter: Coulomb_coeff

Viscous friction coefficient — Viscous friction coefficient

100 N*s/m (default) | positive scalar

Viscous friction coefficient.

Dependencies

To enable this parameter, select Cylinder friction.

Programmatic Use

Parameter: viscous_coeff

Initial Conditions

Piston displacement — Method for determining piston position

Calculate from velocity of port R relative to port C (default) | Provide input signal from Multibody joint

Method for determining the piston position. The block can receive the position from a Multibody block when set to Provide input signal from Multibody joint, or can calculate the position internally and report the position at port p. The position is between 0 and the value of the Piston stroke parameter when the mechanical orientation is positive and between 0 and the negative value of the Piston stroke parameter when the mechanical orientation is negative.

Programmatic Use

Parameter:	displacement_spec
Values:	"foundation.enum.DisplacementSpec.Calculate" | "foundation.enum.DisplacementSpec.InputSignal"

Initial piston displacement — Piston position at start of simulation

0 m (default) | scalar

Piston position at the start of the simulation.

Dependencies

To enable this parameter, set Piston displacement to Calculate from velocity of port R relative to port C.

Programmatic Use

Parameter: x0

Enable dynamic compressibility — Whether to model fluid compressibility

on (default) | off

Whether to model the dynamic compressibility of the liquid. Dynamic compressibility affects the transient response of the system at small timescales. If you select this parameter, the pressure responds dynamically based on the accumulation of fluid mass in the volume. If you clear this parameter, the volume does not accumulate mass and the pressure response is instantaneous. Clearing this setting can improve simulation performance, but may have a negative effect on the simulation robustness. Only clear this setting for small fluid volumes or models with long simulation times.

Programmatic Use

Parameter:	dynamic_compressibility
Values:	"true" | "false"

Initial liquid temperature — Starting liquid temperature

293.15 K (default) | scalar

Initial temperature of the liquid volume in the actuator.

Programmatic Use

Parameter: T0

Initial liquid pressure — Starting liquid pressure for compressible fluids

0.101325 MPa (default) | positive scalar

Starting liquid pressure for compressible fluids.

Dependencies

To enable this parameter, select Enable dynamic compressibility.

Programmatic Use

Parameter: p0

Nominal liquid temperature — Temperature at nominal operating conditions

293.15 K (default) | scalar

Liquid temperature at nominal operating conditions. The block uses this value to calculate the nominal density to use in the mass and energy conservation equation when dynamic compressibility is disabled.

Dependencies

To enable this parameter, clear the Enable dynamic compressibility checkbox.

Programmatic Use

Parameter: T_nominal

Nominal liquid pressure — Pressure at nominal operating conditions

0.101325 MPa (default) | scalar

Liquid pressure at nominal operating conditions. The block uses this value to calculate the nominal density to use in the mass and energy conservation equation when dynamic compressibility is disabled.

Dependencies

To enable this parameter, clear the Enable dynamic compressibility checkbox.

Programmatic Use

Parameter: p_nominal

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2016a

R2023b: Model cylinder friction or cushion

The block has a new options for modeling cylinder friction or cushion. Select the Cylinder friction parameter to include the effects of friction on the piston motion. Select the Cylinder end cushioning parameter to model piston slowdown at maximum extension.

R2023a: New hard stop parameterization option

The block has a new option for the Hard stop model parameter. This option, called Based on coefficient of restitution, models the hard stop by using a mode chart.
