Justify Missing Coverage for Generated C/C++ Code in Equivalence Tests

Since R2026a

If your equivalence tests reveal coverage gaps that you cannot or do not need to satisfy, you can filter the coverage from your results by using justifications. For example, you can use justifications when it is not feasible to satisfy all coverage outcomes or if you do not intend for your current tests to exercise the unsatisfied outcomes.

Create Justifications

To create a justification for a block of C/C++ code, you:

1. Create a code coverage report. For more information, see Collect Coverage for Generated C/C++ Code in Equivalence Tests.

2. Open the Code Quality Dashboard and click the Generated Code Coverage section title.

3. Set Currently viewing to Function, Statement, or Decision, depending on the coverage metric type you want to filter.

4. In the Source Details section, select the function, statement, or decision coverage that you want to filter. The Create Coverage Justification dialog box opens.

5. Enter a justification in the Reason field.

6. Click OK to save the justification.

Creating a justification creates a matlabtest.coverage.Justification object and saves the objects to an XML file.

Note

For MATLAB projects, creating the first justification creates the XML file in the resources folder. If you are not using a project, then specify a path and file name using the Save dialog box.

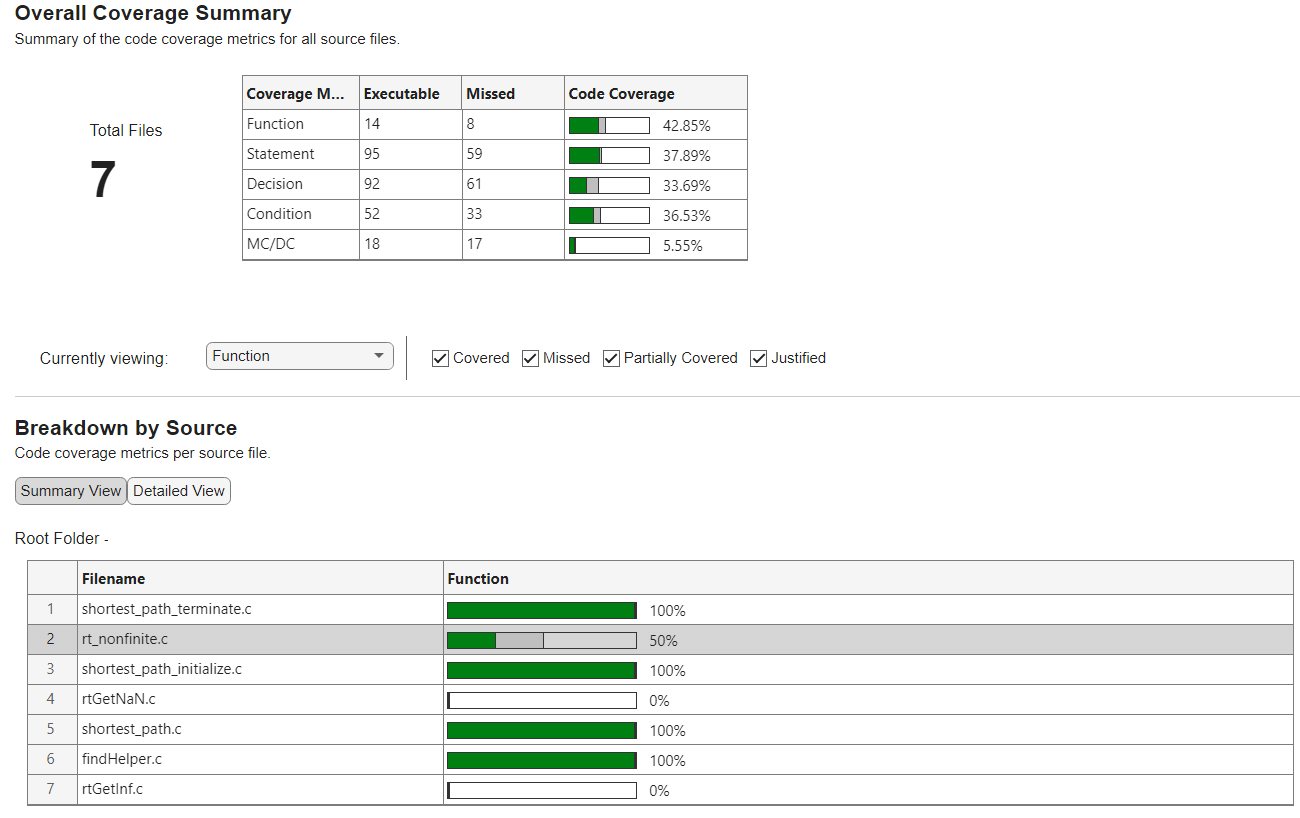

After you justify missing coverage for a block of code, code coverage report displays the updated coverage results. The Overall Coverage Summary and Breakdown by Source sections of the report include the updated coverage metrics. In the Source Details section, the justified coverage appears in gray.

When you create justifications:

• You must set the Currently viewing list to Function, Statement, or Decision before creating a justification.

• You must select the highlighted entry point to the code block. Examples of code block entry points include:

  • An if or switch statement

  • A for or while statement

  • A try statement

  • A function definition

View or Delete Justifications

You can view the reason or summary for a justification in the Source Details section of the code coverage report:

• To view the reason for a justification, point to the Justification Summary button for a justified outcome or point to the highlighted code.

• To view the summary of a justification, click the Justification Summary button for a justified outcome or click the highlighted code.

To delete a justification, open the summary of a justification, then click Delete.

Apply Existing Justifications After Coverage Analysis

After justifying the missing coverage for your code, you can apply or remove the justification to existing coverage results by using the applyFilter and resetFilter methods, respectively. For example, suppose that you have a coverage filter named GeneratedCodeCoverageFilter.xml located in the resources subfolder of the current directory, and you want to apply it to the current coverage results object, coverageResult.

newResult = coverageResult.applyFilter( ...
    fullfile(pwd,"resources","GeneratedCodeCoverageFilter.xml"));

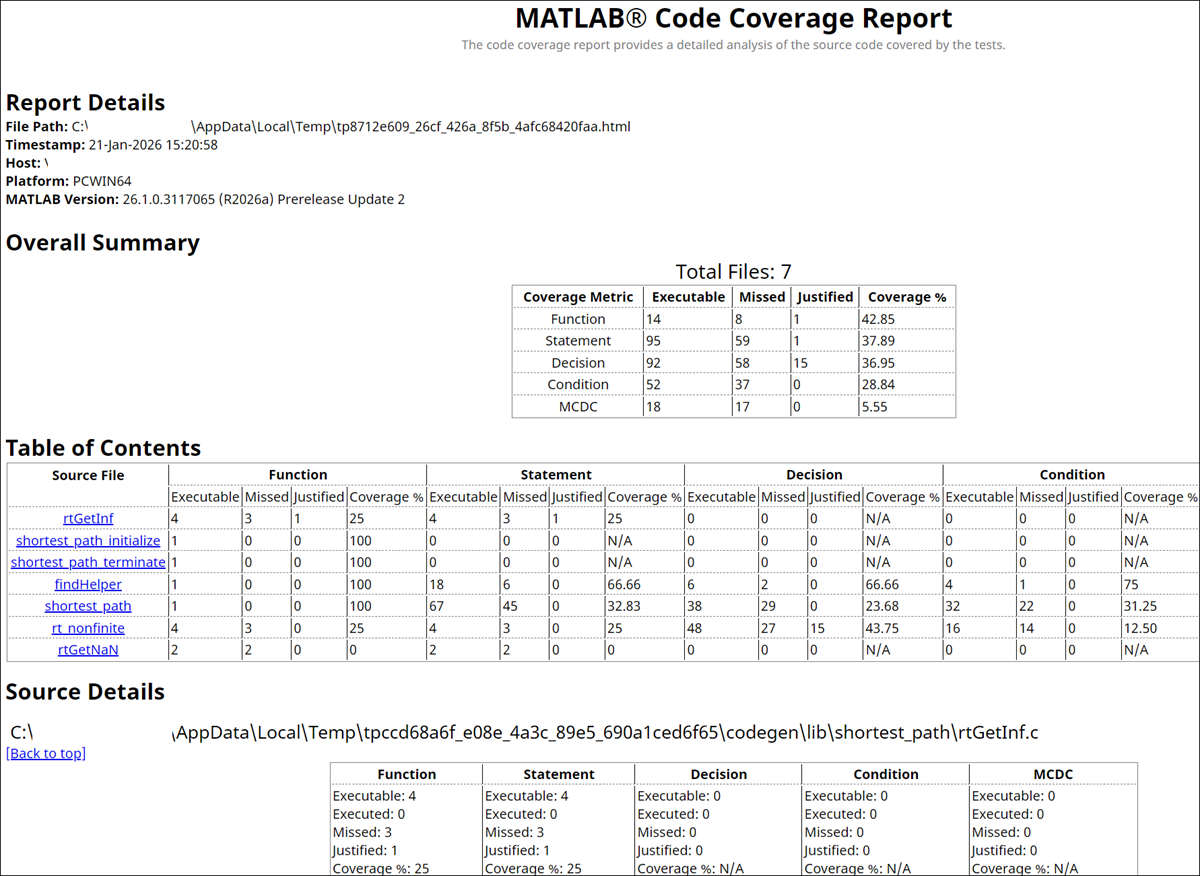

You can then generate a standalone code coverage report from newResult. The report includes the justified outcomes and the justification reasons.

generateStandaloneReport(newResult);

Apply Justifications to New Coverage Analysis

If you rerun your tests to collect new code coverage information, you can reuse the justifications previously created for the source code under test. To apply justifications before running tests, use the Filter=filePath name-value argument for the GeneratedCodeCoveragePlugin class.

import matlab.unittest.plugins.codecoverage.CoverageReport
import matlabtest.coder.plugins.GeneratedCodeCoveragePlugin

r = testrunner("minimal");
f = CoverageReport("report");
filtPath = fullfile(pwd,"resources","GeneratedCodeCoverageFilter.xml");
p = GeneratedCodeCoveragePlugin(Producing=f,MetricLevel="mcdc",Filter=filtPath);
addPlugin(r,p)
results = run(r,suite);
