Combine Multiple Plots

Since R2019b. Replaces Combine Multiple Plots (R2019a).

This example shows how to combine plots in the same axes using the hold function, and how to create multiple axes in a figure using the tiledlayout function.

Combine Plots in Same Axes

By default, new plots clear existing plots and reset axes properties, such as the title. However, you can use the hold on command to combine multiple plots in the same axes. For example, plot two lines and a scatter plot. Then reset the hold state to off.

x = linspace(0,10,50);
y1 = sin(x);
plot(x,y1)
title('Combine Plots')

hold on

y2 = sin(x/2);
plot(x,y2)

y3 = 2*sin(x);
scatter(x,y3)

hold off

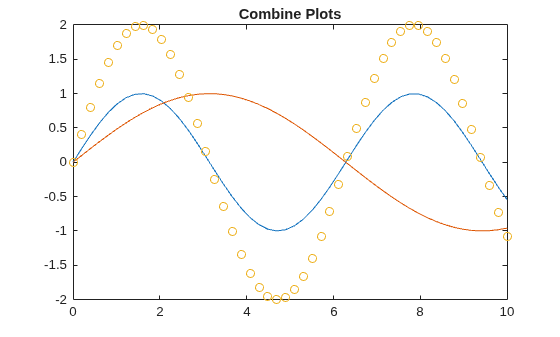

Figure contains an axes object. The axes object with title Combine Plots contains 3 objects of type line, scatter.

When the hold state is on, new plots do not clear existing plots or reset axes properties, such as the title or axis labels. The plots cycle through colors and line styles based on the ColorOrder and LineStyleOrder properties of the axes. The axes limits and tick values might adjust to accommodate new data.

Display Multiple Axes in a Figure

You can display multiple axes in a single figure by using the tiledlayout function. This function creates a tiled chart layout containing an invisible grid of tiles over the entire figure. Each tile can contain an axes for displaying a plot. After creating a layout, call the nexttile function to place an axes object into the layout. Then call a plotting function to plot into the axes. For example, create two plots in a 2-by-1 layout. Add a title to each plot.

x = linspace(0,10,50);
y1 = sin(x);
y2 = rand(50,1);
tiledlayout(2,1)

% Top plot
nexttile
plot(x,y1)
title('Plot 1')

% Bottom plot
nexttile
scatter(x,y2)
title('Plot 2')

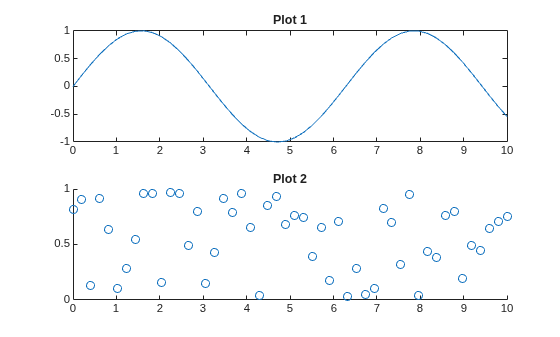

Figure contains 2 axes objects. Axes object 1 with title Plot 1 contains an object of type line. Axes object 2 with title Plot 2 contains an object of type scatter.

Create Plot Spanning Multiple Rows or Columns

To create a plot that spans multiple rows or columns, specify the span argument when you call nexttile. For example, create a 2-by-2 layout. Plot into the first two tiles. Then create a plot that spans one row and two columns.

x = linspace(0,10,50);
y1 = sin(x);
y2 = rand(50,1);

% Top two plots
tiledlayout(2,2)
nexttile
plot(x,y1)
nexttile
scatter(x,y2)

% Plot that spans
nexttile([1 2])
y2 = rand(50,1);
plot(x,y2)

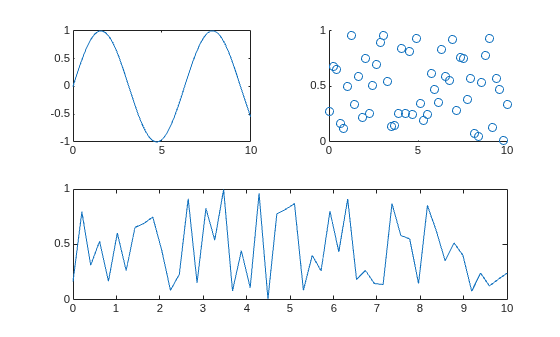

Figure contains 3 axes objects. Axes object 1 contains an object of type line. Axes object 2 contains an object of type scatter. Axes object 3 contains an object of type line.

Modify Axes Appearance

Modify the axes appearance by setting properties on each of the axes objects. You can get the axes object by calling the nexttile function with an output argument. You also can specify the axes object as the first input argument to a graphics function to ensure that the function targets the correct axes.

For example, create two plots and assign the axes objects to the variables ax1 and ax2. Change the axes font size and x-axis color for the first plot. Add grid lines to the second plot.

x = linspace(0,10,50);
y1 = sin(x);
y2 = rand(50,1);
tiledlayout(2,1)

% Top plot
ax1 = nexttile;
plot(ax1,x,y1)
title(ax1,'Plot 1')
ax1.FontSize = 14;
ax1.XColor = 'red';

% Bottom plot
ax2 = nexttile;
scatter(ax2,x,y2)
title(ax2,'Plot 2')
grid(ax2,'on')

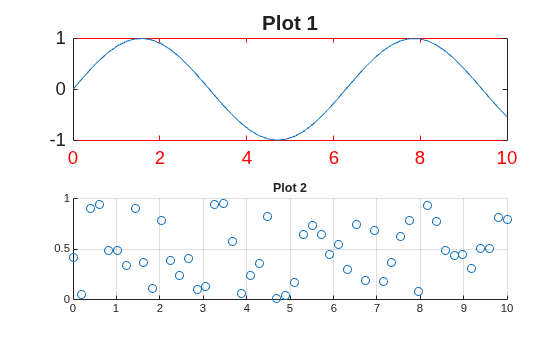

Figure contains 2 axes objects. Axes object 1 with title Plot 1 contains an object of type line. Axes object 2 with title Plot 2 contains an object of type scatter.

Control Spacing Around the Tiles

You can control the spacing around the tiles in a layout by specifying the Padding and TileSpacing properties. For example, display four plots in a 2-by-2 layout.

x = linspace(0,30);
y1 = sin(x);
y2 = sin(x/2);
y3 = sin(x/3);
y4 = sin(x/4);

% Create plots
t = tiledlayout(2,2);
nexttile
plot(x,y1)
nexttile
plot(x,y2)
nexttile
plot(x,y3)
nexttile
plot(x,y4)

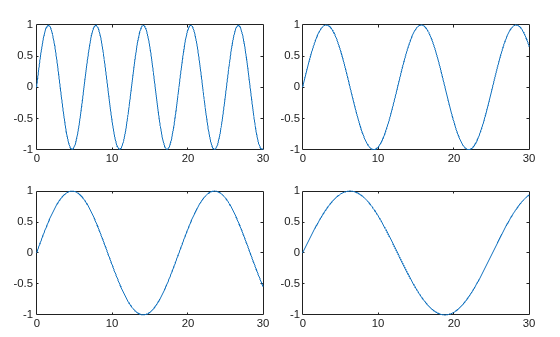

Figure contains 4 axes objects. Axes object 1 contains an object of type line. Axes object 2 contains an object of type line. Axes object 3 contains an object of type line. Axes object 4 contains an object of type line.

Reduce the spacing around the perimeter of the layout and around each tile by setting the Padding and TileSpacing properties to 'compact'.

t.Padding = 'compact';
t.TileSpacing = 'compact';

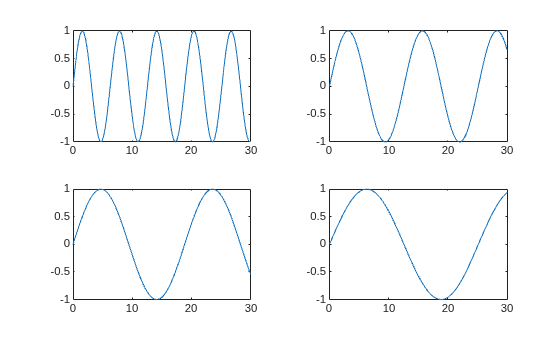

Figure contains 4 axes objects. Axes object 1 contains an object of type line. Axes object 2 contains an object of type line. Axes object 3 contains an object of type line. Axes object 4 contains an object of type line.

Display Shared Title and Axis Labels

You can display a shared title and shared axis labels in a layout. Create a 2-by-1 layout t. Then display a line plot and a stem plot. Synchronize the x-axis limits by calling the linkaxes function.

x1 = linspace(0,20,100);
y1 = sin(x1);
x2 = 3:17;
y2 = rand(1,15);

% Create plots.
t = tiledlayout(2,1);
ax1 = nexttile;
plot(ax1,x1,y1)
ax2 = nexttile;
stem(ax2,x2,y2)

% Link the axes
linkaxes([ax1,ax2],'x');

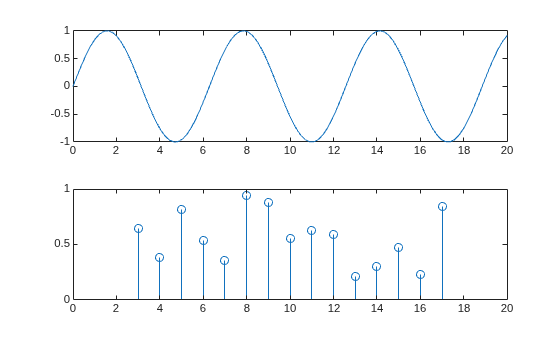

Figure contains 2 axes objects. Axes object 1 contains an object of type line. Axes object 2 contains an object of type stem.

Add a shared title and shared axis labels by passing t to the title, xlabel, and ylabel functions. Move the plots closer together by removing the x-axis tick labels from the top plot and setting the TileSpacing property of t to 'compact'.

% Add shared title and axis labels
title(t,'My Title')
xlabel(t,'x-values')
ylabel(t,'y-values')

% Move plots closer together
xticklabels(ax1,{})
t.TileSpacing = 'compact';

Figure contains 2 axes objects. Axes object 1 contains an object of type line. Axes object 2 contains an object of type stem.
