qr

QR decomposition

Description

example

X = qr(A) returns the upper-triangular R factor of the QR decomposition A = Q*R. If A is full, then R = triu(X). If A is sparse, then R = X.

example

[Q,R] = qr(A) performs a QR decomposition on m-by-n matrix A such that A = Q*R. The factor R is an m-by-n upper-triangular matrix, and the factor Q is an m-by-m orthogonal matrix.

example

[Q,R,P] = qr(A) additionally returns a permutation matrix P such that A*P = Q*R.

example

[___] = qr(A,0) produces an economy-size decomposition using any of the previous output argument combinations. The size of the outputs depends on the size of m-by-n matrix A:

  • If m > n, then qr computes only the first n columns of Q and the first n rows of R.

  • If m <= n, then the economy-size decomposition is the same as the regular decomposition.

  • If you specify a third output with the economy-size decomposition, then it is returned as a permutation vector such that A(:,P) = Q*R.

example

[Q,R,P] = qr(A,outputForm) specifies whether to return the permutation information P as a matrix or a vector. For example, if outputForm is 'vector', then A(:,P) = Q*R. The default value of outputForm is 'matrix' such that A*P = Q*R.

example

[C,R] = qr(S,B) computes C = Q'*B and the upper-triangular factor R. You can use C and R to compute a least-squares solution to the sparse linear system S*X = B with X = R\C.

example

[C,R,P] = qr(S,B) additionally returns a permutation matrix P. You can use C, R, and P to compute a least-squares solution to the sparse linear system S*X = B with X = P*(R\C).

example

[___] = qr(S,B,0) produces an economy-size decomposition using any of the previous output argument combinations. The size of the outputs depends on the size of m-by-n sparse matrix S:

  • If m > n, then qr computes only the first n rows of C and R.

  • If m <= n, then the economy-size decomposition is the same as the regular decomposition.

  • If you specify a third output with the economy-size decomposition, then it is returned as a permutation vector such that the least-squares solution to S*X = B is X(P,:) = R\C.

example

[C,R,P] = qr(S,B,outputForm) specifies whether to return the permutation information P as a matrix or vector. For example, if outputForm is 'vector', then the least-squares solution to S*X = B is X(P,:) = R\C. The default value of outputForm is 'matrix' such that the least-squares solution to S*X = B is X = P*(R\C).

Examples

collapse all

Find the QR decomposition of the 5-by-5 Pascal matrix. Specify one output argument to return just the upper-triangular factor.

A = pascal(5);
X = qr(A)
X = 5×5

   -2.2361   -6.7082  -15.6525  -31.3050  -56.3489
    0.3090    3.1623   11.0680   26.5631   53.1263
    0.3090   -0.1744    1.8708    7.4833   19.2428
    0.3090   -0.4565    0.3548    0.6325    2.8460
    0.3090   -0.7387   -0.0281   -0.7490   -0.1195

Extract the upper-triangular factor R from X.

R = triu(X)
R = 5×5

   -2.2361   -6.7082  -15.6525  -31.3050  -56.3489
         0    3.1623   11.0680   26.5631   53.1263
         0         0    1.8708    7.4833   19.2428
         0         0         0    0.6325    2.8460
         0         0         0         0   -0.1195

Compare the R in the Q-less QR decomposition to the R factor in a full QR decomposition.

[Q1,R1] = qr(A)
Q1 = 5×5

   -0.4472   -0.6325    0.5345   -0.3162   -0.1195
   -0.4472   -0.3162   -0.2673    0.6325    0.4781
   -0.4472    0.0000   -0.5345   -0.0000   -0.7171
   -0.4472    0.3162   -0.2673   -0.6325    0.4781
   -0.4472    0.6325    0.5345    0.3162   -0.1195

R1 = 5×5

   -2.2361   -6.7082  -15.6525  -31.3050  -56.3489
         0    3.1623   11.0680   26.5631   53.1263
         0         0    1.8708    7.4833   19.2428
         0         0         0    0.6325    2.8460
         0         0         0         0   -0.1195

Compute the full QR decomposition of a magic square test matrix by specifying two output arguments.

A = magic(5);
[Q,R] = qr(A)
Q = 5×5

   -0.5234    0.5058    0.6735   -0.1215   -0.0441
   -0.7081   -0.6966   -0.0177    0.0815   -0.0800
   -0.1231    0.1367   -0.3558   -0.6307   -0.6646
   -0.3079    0.1911   -0.4122   -0.4247    0.7200
   -0.3387    0.4514   -0.4996    0.6328   -0.1774

R = 5×5

  -32.4808  -26.6311  -21.3973  -23.7063  -25.8615
         0   19.8943   12.3234    1.9439    4.0856
         0         0  -24.3985  -11.6316   -3.7415
         0         0         0  -20.0982   -9.9739
         0         0         0         0  -16.0005

Verify that A=QR, within machine precision.

norm(A-Q*R)
ans = 9.5562e-15

Specify three output arguments to return a permutation matrix or vector that reduces fill-in in the R factor of the QR decomposition.

Compute the QR decomposition of the west0479 sparse matrix. Specify three outputs to return a permutation matrix that satisfies AP=QR.

load west0479
A = west0479;
[Q,R,P] = qr(A);

Verify that A*P = Q*R for the permutation matrix P, within machine precision.

norm(A*P-Q*R,'fro')
ans = 3.3386e-10

Now specify the 'vector' option to return p as a permutation vector.

[Q,R,p] = qr(A,'vector');

Verify that A(:,p) = Q*R for the permutation vector p, within machine precision.

norm(A(:,p) - Q*R,'fro')
ans = 3.3386e-10

Verify that the use of a permutation matrix or permutation vector in the decomposition results in an R factor with fewer nonzeros for sparse inputs compared to a nonpermuted decomposition.

[Q1,R1] = qr(A);

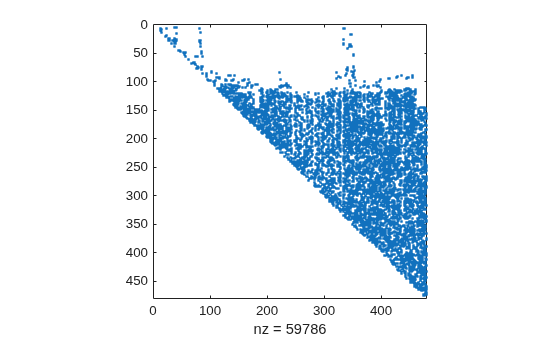

spy(R1)

Figure contains an axes. The axes contains an object of type line.

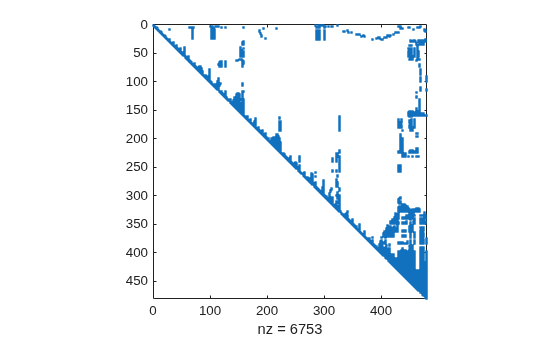

spy(R)

Figure contains an axes. The axes contains an object of type line.

The results show that the permuted decomposition produces an R factor with substantially fewer nonzeros.

Use the economy-size QR decomposition of a coefficient matrix to solve the linear system Ax=b.

Create a 10-by-5 coefficient matrix by using the first five columns of magic(10). For the right-hand side of the linear equation Ax=b, use the row sums of the matrix. With this setup, the solution to the equation x should be a vector of ones.

A = magic(10);
A = A(:,1:5)
A = 10×5

    92    99     1     8    15
    98    80     7    14    16
     4    81    88    20    22
    85    87    19    21     3
    86    93    25     2     9
    17    24    76    83    90
    23     5    82    89    91
    79     6    13    95    97
    10    12    94    96    78
    11    18   100    77    84

b = sum(A,2)
b = 10×1

   215
   215
   215
   215
   215
   290
   290
   290
   290
   290

Compute the economy-size QR decomposition of A. Then solve the linear system QRx=b with x(p,:) = R\(Q\b). Because Q is orthogonal, this equation is the same as x(p,:) = R\(Q'*b).

[Q,R,p] = qr(A,0)
Q = 10×5

   -0.0050   -0.4775   -0.0504    0.5193    0.0399
   -0.0349   -0.5001   -0.0990   -0.1954   -0.2006
   -0.4384    0.1059   -0.4660    0.4464    0.0628
   -0.0947   -0.4151   -0.2923   -0.2542    0.5274
   -0.1246   -0.4117   -0.2812   -0.1326   -0.4130
   -0.3787    0.0209    0.2702    0.4697    0.0390
   -0.4085   -0.0017    0.2217   -0.2450   -0.2015
   -0.0648   -0.3925    0.6939    0.0669    0.1225
   -0.4683    0.0833    0.0283   -0.3038    0.5265
   -0.4982    0.0867    0.0394   -0.1822   -0.4138

R = 5×5

 -200.7112  -55.5026 -167.6040  -84.7237 -168.7997
         0 -192.1053  -40.3557 -152.4040  -39.2814
         0         0  101.3180  -89.4254   96.0172
         0         0         0   41.0248  -14.9083
         0         0         0         0   24.6386

p = 1×5

     3     1     5     2     4

x(p,:) = R\(Q\b)
x = 5×1

    1.0000
    1.0000
    1.0000
    1.0000
    1.0000

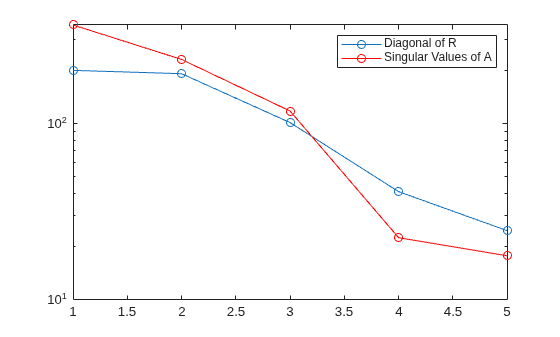

Make a semilog plot of the diagonal of R to confirm that the permuted decomposition produces an R factor with abs(diag(R)) decreasing. Plot the singular values of A in the same plot for comparison. In practice, the diagonal values of R behave in a similar way to the singular values of A. Therefore, you can use the diagonal values of R as a measure for how close to singular the matrix A is.

semilogy(abs(diag(R)),'-o')
hold on
semilogy(svd(A),'r-o')
legend('Diagonal of R','Singular Values of A')

Figure contains an axes. The axes contains 2 objects of type line. These objects represent Diagonal of R, Singular Values of A.

Solve a sparse linear system and use the results to see how much of vector b lies in the column space of S.

Create a random 500-by-20 sparse matrix with 10% density and a vector of ones. Use qr to factorize the matrix into the factors R and C = Q'*b.

S = sprand(500,20,0.1);
b = ones(500,1);
[C,R] = qr(S,b,0);

Use the results to solve Sx=b with x = R\C.

x = R\C;

Consider the identityb2=Sx-b2+C2.

Dividing through by the norm of b, you get a new identity that shows how much of b lies in the column space of S:

Sx-b2b2+C2b2=1.

The first term tells how much of b does not lie in the column space of S, while the second term tells how much of b does lie in the column space of S.

t1 = norm(S*x-b)^2/norm(b)^2
t1 = 0.4000
t2 = norm(C)^2/norm(b)^2
t2 = 0.6000

Use qr to solve the matrix equation Sx=B with a rectangular sparse coefficient matrix S.

Load the west0479 sparse matrix and use the first 200 columns as the rectangular coefficient matrix in a linear system. For the right-hand side of the equation, use the row sums of S. With this setup, the solution to Sx=B is a vector of ones.

load west0479
S = west0479(:,1:200);
B = sum(S,2);

Solve Sx=B using qr with two inputs and three outputs. The solution to the linear system is x = P*(R\C).

[C,R,P] = qr(S,B);
x = P*(R\C);

Verify that Sx-B=0, within machine precision.

norm(S*x-B)
ans = 9.1703e-11

Note: To calculate the upper-triangular factor R and permutation matrix P, but avoid computing the orthogonal matrix Q (which is often the most computationally expensive part of a call to qr), you can specify B as an empty matrix:

emptyB = zeros(size(S,1),0);
[~,R,P] = qr(S,emptyB);

Input Arguments

collapse all

Input matrix, specified as a full or sparse matrix.

Data Types: single | double
Complex Number Support: Yes

Input coefficient matrix, specified as a sparse matrix. With two input matrices, qr computes a least-squares solution to the linear system S*X = B.

Data Types: double
Complex Number Support: Yes

Right-hand side matrix, specified as a full or sparse matrix. With two input matrices, qr computes C = Q'*B, which you can use to solve the linear system S*X = B.

Data Types: single | double
Complex Number Support: Yes

Shape of permutation output, specified as 'matrix' or 'vector'. This flag controls whether the permutation output P is returned as a permutation matrix or permutation vector. You must specify three output arguments to qr to use this option.

  • If outputForm is 'vector', then P is a permutation vector that satisfies A(:,P) = Q*R.

  • The default value of outputForm is 'matrix' such that A*P = Q*R.

Example: [Q,R,P] = qr(A,'vector')

Output Arguments

collapse all

Output matrix. The contents of X depend on whether A is full or sparse:

  • If A is full, then the upper-triangular factor of the QR decomposition is R = triu(X). (The lower-triangular elements are part of the data used to calculate Q.)

  • If A is sparse, then the factor is R = X.

Orthogonal factor, returned as a matrix that satisfies A = Q*R for an m-by-n matrix A.

  • For full decompositions, qr(A) returns Q as an m-by-m orthogonal matrix satisfying QHQ=QQH=Im.

  • For rectangular A with m > n, the economy-sized decomposition qr(A,0) computes only the first n columns of Q and first n rows of R. The columns of Q form an orthonormal basis for the column space of A.

Different machines and releases of MATLAB® can produce different columns in Q that are still numerically accurate. Corresponding rows and columns in Q and R can flip their signs, since this does not affect the value of the expression A = Q*R.

Upper-triangular factor, returned as a matrix that satisfies A = Q*R.

Permutation information, returned as a matrix or vector. The shape of P depends on the value of outputForm. Also, qr selects P to satisfy different criteria depending on whether the first input matrix is full or sparse:

  • Full — qr selects P so that abs(diag(R)) is decreasing.

  • Sparse — qr selects P to reduce fill-in in R.

Linear system factor, returned as a matrix that satisfies C = Q'*B. The least-squares solution to S*X = B is X = R\C. If the permutation output P is specified, then the solution is either X = P*(R\C) or X(P,:) = R\C, depending on the value of outputForm:

  • If outputForm is 'vector', then the least-squares solution to S*X = B is X(P,:) = R\C.

  • The default value of outputForm is 'matrix' such that the least-squares solution to S*X = B is X = P*(R\C).

Tips

  • To solve multiple linear systems involving the same coefficient matrix, use decomposition objects.

  • For the syntax [C,R] = qr(S,B), the value of X = R\C is a least-squares solution to S*X = B only when S does not have low rank.

Extended Capabilities

Introduced before R2006a
