thetalim

Set or query theta-axis limits for polar axes

Syntax

thetalim(limits)

thetalim(limitmode)

tl = thetalim

m = thetalim("mode")

___ = thetalim(pax,___)

Description

Specify Limits

thetalim(limits) specifies the theta-axis limits for the current polar axes. Specify limits as a two-element vector of the form [thetamin thetamax], where thetamax is a numeric value greater than thetamin.

thetalim(limitmode) specifies automatic or manual limit selection. The limitmode can have either of two values:

• "auto" — Enable automatic limit selection. MATLAB^® chooses the theta-axis limits.

• "manual" — Freeze the theta-axis limits at their current value.

Query Limits

tl = thetalim returns a two-element vector containing the limits for the current polar axes.

m = thetalim("mode") returns the current value of the limits mode, which is either 'auto' or 'manual'. By default, the mode is automatic unless you specify limits or set the mode to manual.

Specify Target Axes

___ = thetalim(pax,___) uses the polar axes object specified by pax instead of the current polar axes. Specify pax as the first input argument. Include additional input or output arguments only if the original syntax supported them.

Examples

Specify theta-Axis Limits

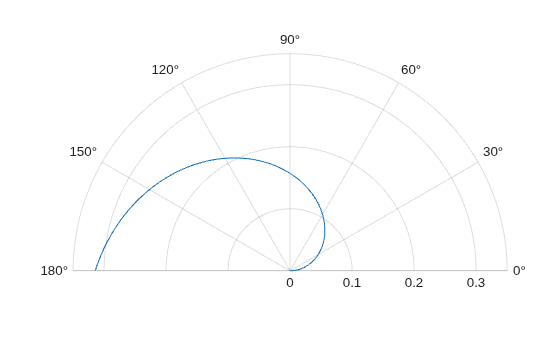

Create a polar plot and change the theta-axis limits.

theta = linspace(0,pi);
rho = theta/10;
polarplot(theta,rho)
thetalim([0 180])

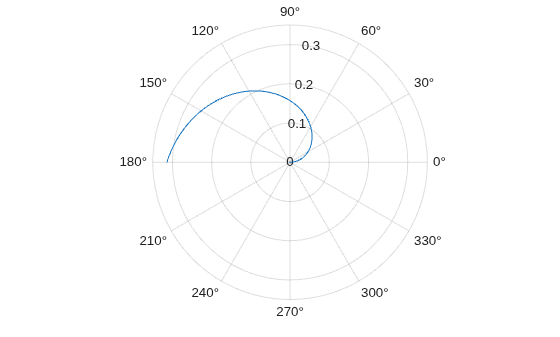

Set the limits back to the original values.

thetalim('auto')

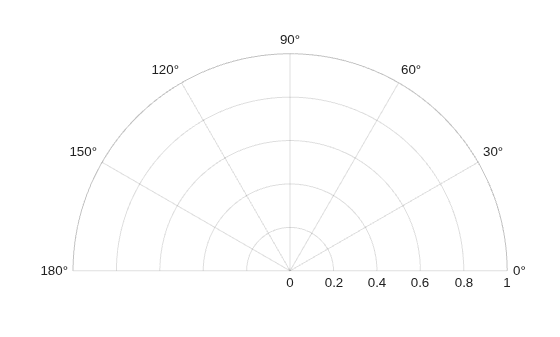

Specify theta-Axis Limits for Specific Polar Axes

Set the limits for a specific polar axes by specifying the polar axes object as the first input to thetalim. Otherwise, thetalim sets the limits for the current axes.

pax = polaraxes;
thetalim(pax,[0 180])

Input Arguments

limits — Minimum and maximum limits

two-element vector

Minimum and maximum limits, specified as a two-element vector of the form [thetamin thetamax]. When you specify the limits, the ThetaLim property for the polar axes object updates to the specified values.

Example: [0 1]

limitmode — Limit mode

"auto" | "manual"

Limit mode, specified as one of the following values:

• "auto" — Enable automatic limit selection, which is based on the total span of the data. MATLAB chooses the theta-axis limits.

• "manual" — Freeze the limits at the current values.

When you specify this argument, MATLAB sets the ThetaLimMode property of the axes to the value you specify. However, the ThetaLimMode property changes to "manual" whenever you set the theta-axis limits explicitly, either by calling thetalim(limits), or by setting the value of the ThetaLim property on the axes.

pax — Polar axes

polar axes | array of polar axes

Polar axes, or an array of polar axes. If you do not specify this argument, then thetalim modifies the current axes (provided that the current axes is a polar axes object).

Output Arguments

tl — Current limits

two-element vector

Current limits, returned as a two-element vector of the form [thetamin thetamax]. Querying the limits returns the value of the ThetaLim property for the polar axes object.

m — Current limits mode

'auto' | 'manual'

Current limits mode, returned as one of these values:

• 'auto' — Limits automatically update to reflect changes in the data.

• 'manual' — Limits do not automatically update.

Querying the theta-axis limits mode returns the value of the ThetaLimMode property for the polar axes object.

Version History

Introduced in R2016a
