findElectromagneticSource

Find electromagnetic source assigned to geometric region

Since R2021a

    Description

    example

    emSource = findElectromagneticSource(sources,RegionType,RegionID) returns the change or current density emSource assigned to the specified region of the specified model.

    Examples

    collapse all

    Create an electromagnetic model for magnetostatic analysis.

    emagmodel = createpde("electromagnetic","magnetostatic");

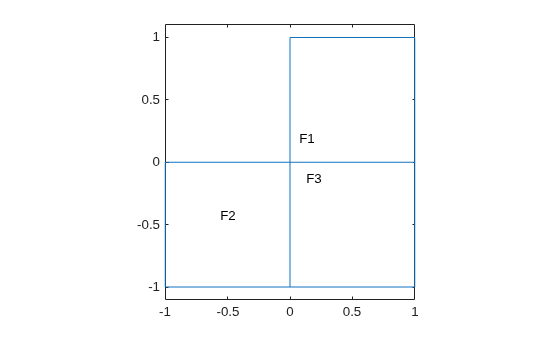

    Include the L-shaped membrane geometry in the model and plot it with the face labels.

    geometryFromEdges(emagmodel,@lshapeg);
    pdegplot(emagmodel,"FaceLabels","on")
    ylim([-1.1 1.1])
    axis equal

    Specify a different current density for each face.

    electromagneticSource(emagmodel,"Face",1,"CurrentDensity",10);
    electromagneticSource(emagmodel,"Face",2,"CurrentDensity",20);
    electromagneticSource(emagmodel,"Face",3,"CurrentDensity",30);

    Check the electromagnetic source specification for each face.

    findElectromagneticSource(emagmodel.Sources,"Face",1)
    ans =
      ElectromagneticSourceAssignment with properties:

            RegionType: 'Face'
              RegionID: 1
         ChargeDensity: []
        CurrentDensity: 10
         Magnetization: []


    findElectromagneticSource(emagmodel.Sources,"Face",2)
    ans =
      ElectromagneticSourceAssignment with properties:

            RegionType: 'Face'
              RegionID: 2
         ChargeDensity: []
        CurrentDensity: 20
         Magnetization: []


    findElectromagneticSource(emagmodel.Sources,"Face",3)
    ans =
      ElectromagneticSourceAssignment with properties:

            RegionType: 'Face'
              RegionID: 3
         ChargeDensity: []
        CurrentDensity: 30
         Magnetization: []



    Create and plot a geometry consisting of two nested spheres.

    gm = multisphere([5 15]);
    pdegplot(gm,"CellLabels","on","FaceAlpha",0.3)

    Create an electromagnetic model for electrostatic analysis.

    emagmodel = createpde("electromagnetic","electrostatic");

    Include the geometry in the model.

    emagmodel.Geometry = gm;

    Specify the charge density for the inner sphere.

    electromagneticSource(emagmodel,"Cell",1,"ChargeDensity",10);

    Check the electromagnetic source specification for each cell.

    findElectromagneticSource(emagmodel.Sources,"Cell",1)
    ans =
      ElectromagneticSourceAssignment with properties:

            RegionType: 'Cell'
              RegionID: 1
         ChargeDensity: 10
        CurrentDensity: []
         Magnetization: []


    findElectromagneticSource(emagmodel.Sources,"Cell",2)
    ans =

      0x1 ElectromagneticSourceAssignment array with properties:

        RegionType
        RegionID
        ChargeDensity
        CurrentDensity
        Magnetization


    Input Arguments

    collapse all

    Source in an electromagnetic model, specified as the Sources property of the model.

    Example: findElectromagneticSource(emagmodel.Sources,"Face",1)

    Geometric region type, specified as "Face" for a 2-D model or "Cell" for a 3-D model.

    Data Types: char | string

    Region ID, specified as a vector of positive integers. Find the face or cell IDs by using pdegplot with the "FaceLabels" or "CellLabels" name-value argument set to "on".

    Data Types: double

    Output Arguments

    collapse all

    Electromagnetic source assignment, returned as an ElectromagneticSourceAssignment object. For more information, see ElectromagneticSourceAssignment Properties.

    Version History

    Introduced in R2021a
