findLobes

Class: polarpattern

Main, back, and side lobe data

Description

example

L = findLobes(p) returns a structure, L, defining the main, back, and side lobes of the antenna or array radiation pattern in the specified polar plot, p.

example

L = findLobes(p,index) returns the radiation pattern lobes from the data set specified in index.

Input Arguments

expand all

Polar plot, specified as a scalar handle.

Index of data set, specified as a scalar.

Examples

expand all

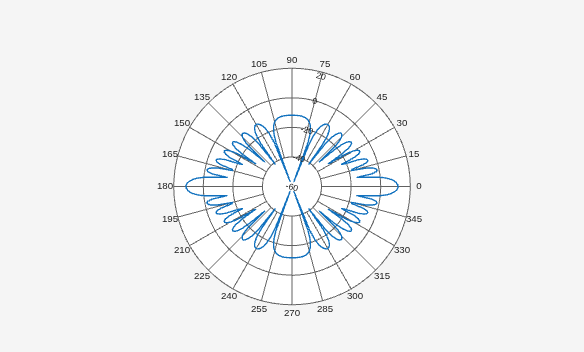

Create a 15-element ULA of isotropic antenna with elements spaced one-half wavelength apart. Plot the directivity of the array at 20 GHz. Then, find the mainlobe, sidelobe, and backlobe directions of the array pattern.

fc = 20.0e9;
c = physconst('Lightspeed');
lam = c/fc;
angs = [-180:1:180];
antenna = phased.IsotropicAntennaElement('FrequencyRange',[1.0e9,100.0e9]);
array = phased.ULA('Element',antenna,'NumElements',15,'ElementSpacing',lam/2);
a = pattern(array,fc,angs,0);
P = polarpattern(angs,a);

L = findLobes(P)
L = struct with fields:
     mainLobe: [1x1 struct]
     backLobe: [1x1 struct]
    sideLobes: [1x1 struct]
           FB: 0
          SLL: 0
         HPBW: 8.0000
         FNBW: 16.0000
        FBIdx: [181 1]
       SLLIdx: [181 361]
      HPBWIdx: [357 5]
      HPBWAng: [176 -176]
      FNBWIdx: [173 189]

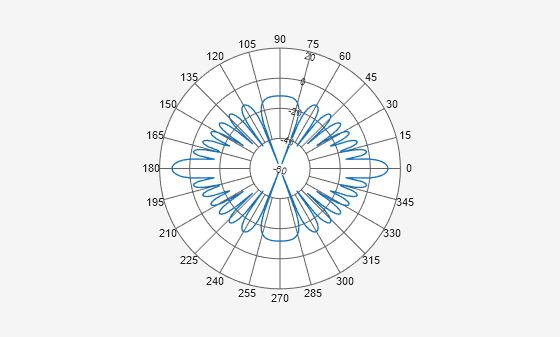

Create a 15-element ULA of isotropic antenna with elements spaced one-half wavelength apart. Plot the directivity of the array at 20 GHz. Then steer the array to 45° azimuth and plot the directivity. Then, find the mainlobe, sidelobe, and backlobe directions of the array pattern.

fc = 20.0e9;
c = physconst('Lightspeed');
lam = c/fc;
angs = [-180:1:180];
antenna = phased.IsotropicAntennaElement('FrequencyRange',[1.0e9,100.0e9]);
array = phased.ULA('Element',antenna,'NumElements',15,'ElementSpacing',lam/2);
a = pattern(array,fc,angs,0);
P = polarpattern(angs,a);

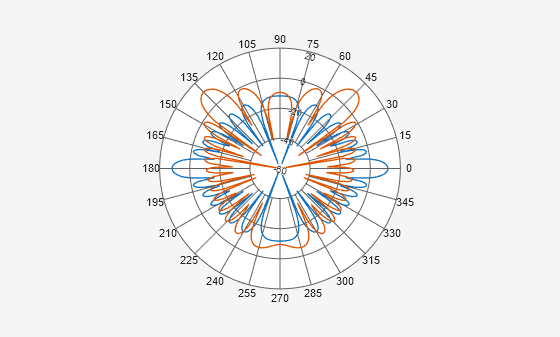

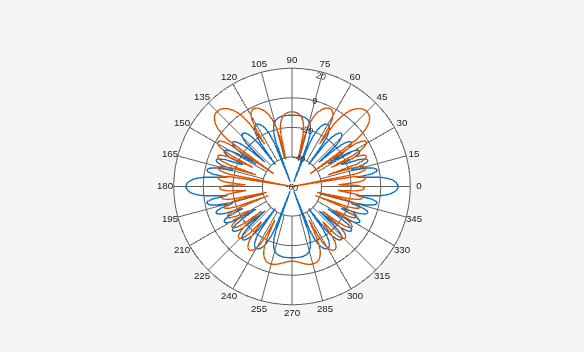

Steer the array to 45&deg azimuth and add the steered pattern to the polar plot.

steervec = phased.SteeringVector('SensorArray',array,'PropagationSpeed',c);
sv = steervec(fc,[45;0]);
a1 = pattern(array,fc,angs,0,'Weights',sv);
add(P,angs,a1);

Find the lobes of the steered pattern.

L = findLobes(P,2);
L.mainLobe
ans = struct with fields:
        index: 226
    magnitude: 11.7609
        angle: 45
       extent: [216 238]

Introduced in R2016a
