Ejecutar varias simulaciones

Proporcione la colección de entradas al modelo y utilícelas para ejecutar múltiples simulaciones con las funciones parsim y batchsim o el panel de simulaciones múltiples en Simulink^®

Para los flujos de trabajo que implican múltiples simulaciones paralelas y el registro de muchos datos, puede utilizar la función parsim o batchsim, o ejecutar las simulaciones con el panel Multiple Simulations en el editor de Simulink.

Si dispone de una licencia de Parallel Computing Toolbox™, puede utilizar la función parsim para ejecutar las simulaciones en paralelo. La función distribuye múltiples simulaciones a workers paralelos para acelerar el tiempo total de simulación. Utilizar la función parsim con Parallel Computing Toolbox permite automatizar la creación de pools paralelos, identifica las dependencias de los archivos y gestiona los artefactos de construcción para las simulaciones de aceleradores y aceleradores rápidos. La función parsim ejecuta simulaciones en serie si no se dispone de una licencia de Parallel Computing Toolbox.

Puede utilizar la función batchsim con las licencias de Parallel Computing Toolbox y MATLAB^® Parallel Server™. Cuando se utiliza la función batchsim, las simulaciones se descargan en un cluster de proceso. Puede abrir una sesión separada de MATLAB para acceder al trabajo y a los resultados.

Para empezar, consulte Running Multiple Simulations y Run Parallel Simulations for a Thermal Model of a House Using parsim.

Funciones

`batchsim`	Offload simulations to run on a compute cluster
`parsim`	Simulate dynamic system multiple times in parallel or serial
`applyToModel`	Apply configuration specified on `Simulink.SimulationOutput` object to model
`setBlockParameter`	Set block parameter values on `Simulink.SimulationInput` object
`setModelParameter`	Specify parameter values for simulation configured using `Simulink.SimulationInput` object
`setInitialState`	Configure `Simulink.SimulationInput` object to set initial state for simulation
`setExternalInput`	Set external inputs for simulation on `SimulationInput` object
`setVariable`	Set variable value on `SimulationInput` object
`validate`	Validate contents of `SimulationInput` object
`setPreSimFcn`	Specify MATLAB function to run before start of each simulation on `Simulink.SimulationInput` object
`setPostSimFcn`	Set MATLAB function to run after each simulation
`loadVariablesFromMATFile`	Load variables from MAT file into `Simulink.SimulationInput` object
`loadVariablesFromExternalSource`	Load variables from a custom file into `Simulink.SimulationInput` object
`getSimulationJobs`	Get all `Simulink.Simulation.Job` objects from cluster
`showContents`	View contents of `Simulink.SimulationInput` object

Clases

`Simulink.SimulationInput`	Creates `SimulationInput` objects to make changes to model for multiple or individual simulations
`Simulink.Simulation.Variable`	Variables in `Simulink.SimulationInput` objects
`Simulink.Simulation.BlockParameter`	Block parameters in `Simulink.SimulationInput` objects
`Simulink.Simulation.Future`	Create `Future` object for simulation
`Simulink.Simulation.Job`	Execute `batchsim` to create a `Simulink.Simulation.Job` object, `simJob`

Herramientas

Simulaciones múltiples	Run multiple simulations from the Simulink Editor
Simulation Manager	Monitor multiple simulations and visualize the simulation data

Temas

Running Multiple Simulations
Run multiple simulations from the parsim and batchsim commands, and the Multiple Simulations panel in Simulink Editor.
Run Parallel Simulations for a Thermal Model of a House Using parsim
Use a Simulink.SimulationInput object to run multiple parallel simulations command line workflow.
Run Parallel Simulations
Programmatically run model simulations in parallel.
Configure and Run Simulations with Multiple Simulations Panel
Learn about the Multiple Simulations panel in the Simulink Editor.
Comparison Between Multiple Simulation Workflows
Understand the similarities and differences between parsim, parsim with RunInBackground, and batchsim.
Analyze Results Using Simulation Manager
Use the Simulation Manager to visualize simulation data, analyze simulation results and trends.

Ejemplos destacados

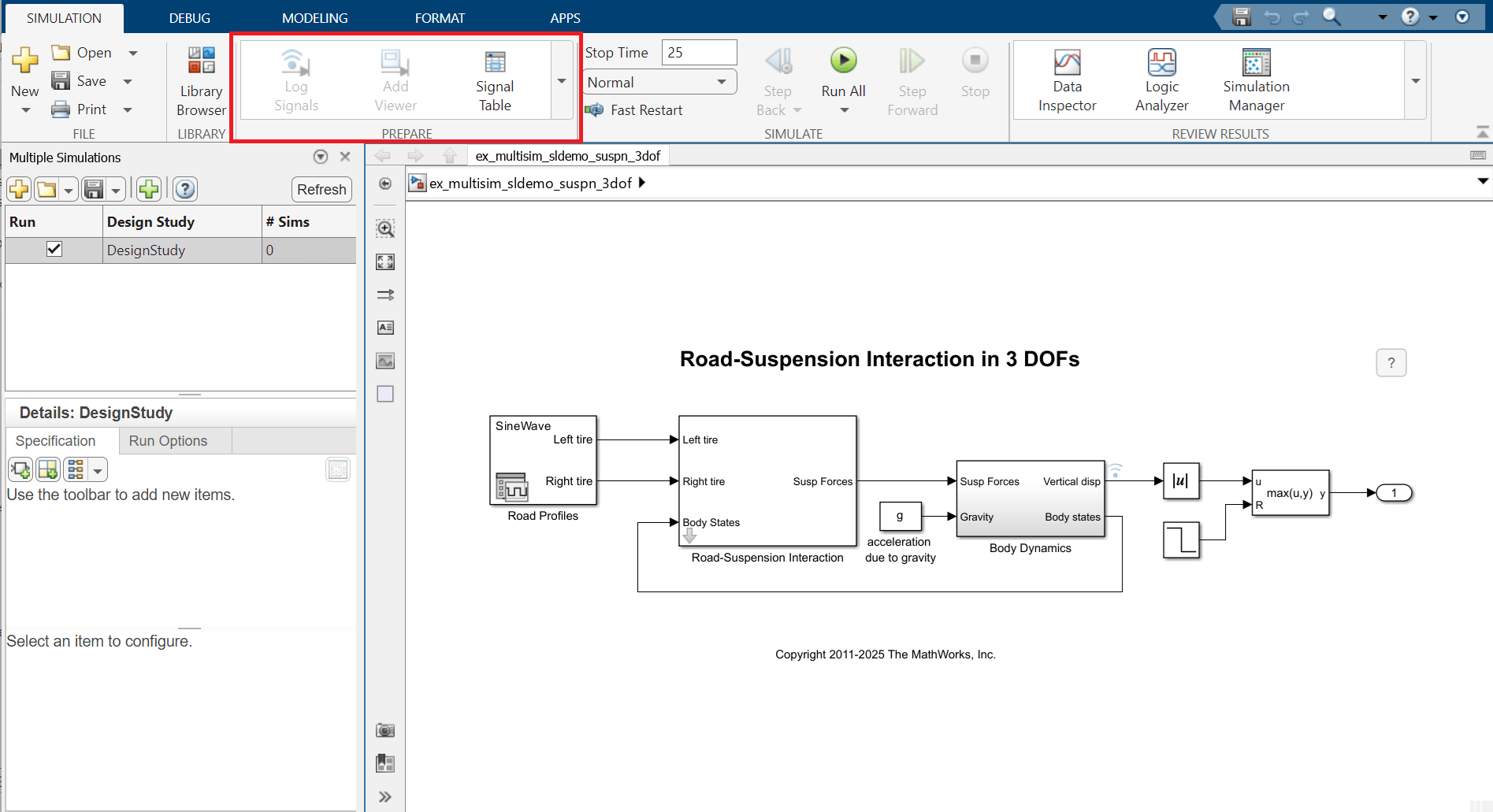

Multiple Simulations Panel: Simulate for Different Values of Stiffness for a Vehicle Dynamics System

Use the Multiple Simulations panel in the Simulink® Editor to run multiple simulations with varying values of stiffness of the suspension for a road profile that has a sinusoidal shape.

Abrir script en vivo

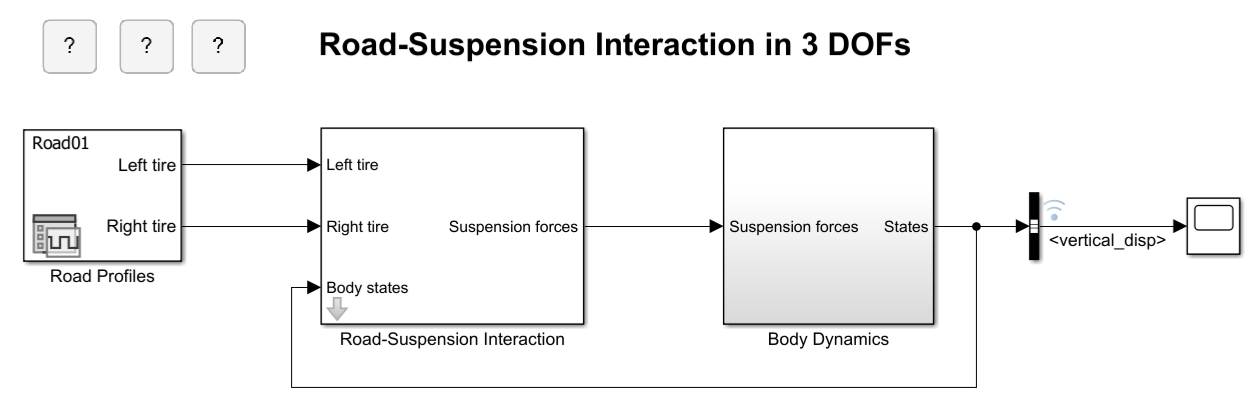

Parallel Simulations Using Parsim: Parameter Sweep in Normal Mode

Run multiple simulations of a Monte Carlo study in parallel by using Parallel Computing Toolbox™. Parallel execution leverages the multiple cores of your host machine to run many simulations more quickly. These simulations could also be run in parallel on computer clusters using the MATLAB Parallel Server™. This example will work even if the Parallel Computing Toolbox™ or the MATLAB Parallel Server™ is not available, but the simulations will run in serial.

Abrir modelo

Parallel Simulations Using Parsim: Parameter Sweep in Rapid Accelerator Mode

Abrir modelo

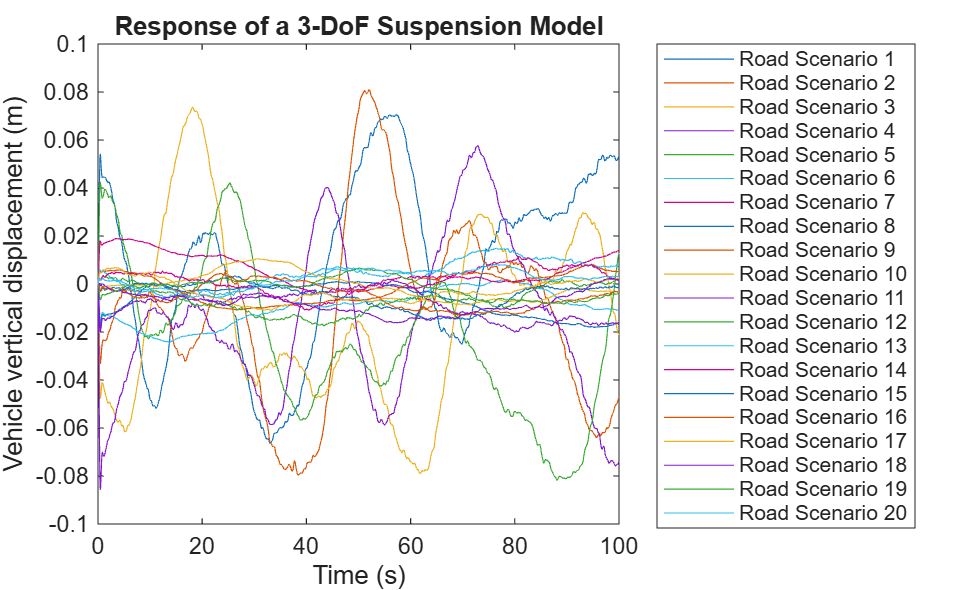

Parallel Simulations Using Parsim: Test-Case Sweep

Run multiple Simulink® simulations corresponding to different test cases in the Signal Editor block using SimulationInput objects and the parsim command. The parsim command uses Parallel Computing Toolbox™, if it is available, to run simulations in parallel, otherwise the simulations are run in serial.

Abrir modelo

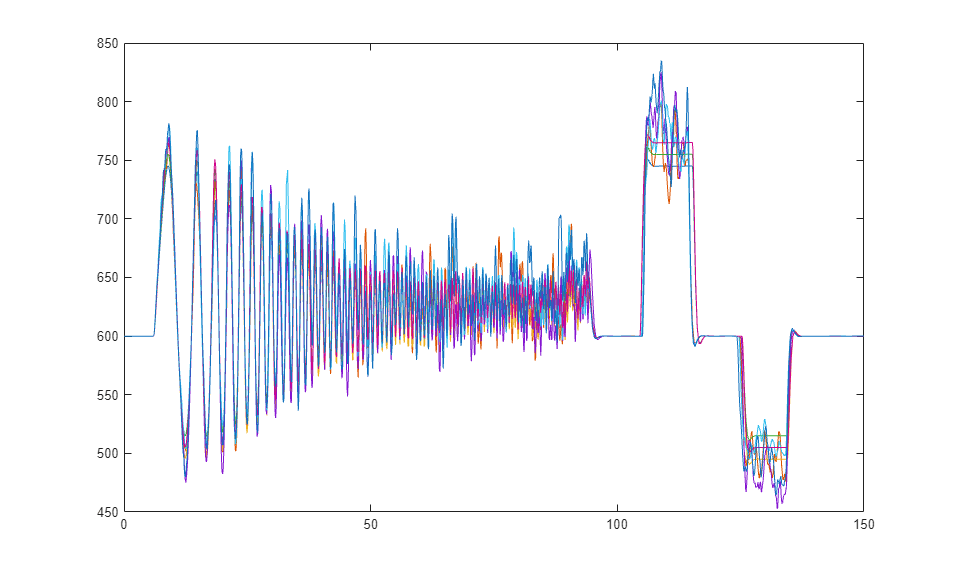

Rapid Accelerator Simulations Using Parsim

The use of Rapid Accelerator in applications that require running parallel simulations for a range of input and parameter values.

Abrir modelo

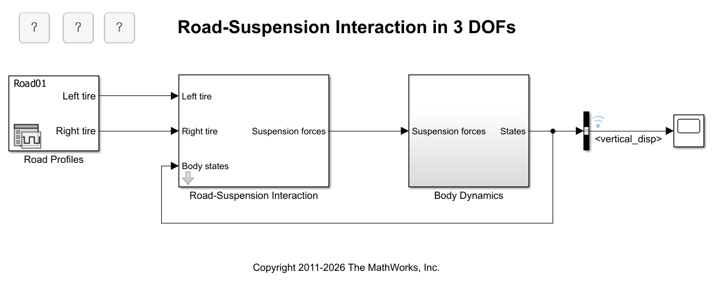

Multiple Simulations Workflow Tips

The goal of this example is to provide helpful tips for running multiple simulations using parallel simulation tools. This example will work even if the Parallel Computing Toolbox™ is not available, but the simulations will run in serial. We will be using the model sldemo_suspn_3dof.

Abrir modelo
