move

Move message within interaction

Since R2024b

Syntax

move(message, Before=beforeElement)

move(message, After=afterElement)

Description

move(message, Before=beforeElement) places the message message immediately before the beforeElement interaction element object.

move(message, After=afterElement) places the message message immediately after the afterElement interaction element object.

Examples

Move Messages in Sequence Diagrams

You can programmatically move messages in a sequence diagram. This example assumes you have the TLExample model open from the Create Sequence Diagrams Programmatically example and uses the move function to place the first message in the root fragment immediately before the alternative fragment.

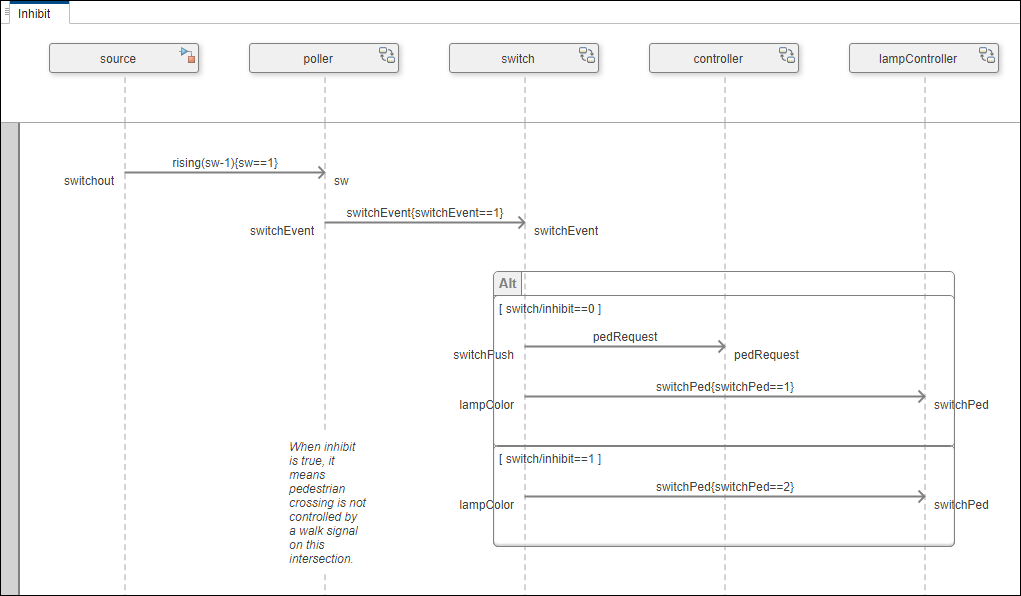

Open Inhibit sequence diagram.

model = systemcomposer.openModel("TLExample");
diagram = getInteraction(model, "Inhibit");

Get the first and second message in the root fragment.

message = diagram.RootFragment.Operands.Fragments(1).Message;
message1 = diagram.RootFragment.Operands.Fragments(2).Message;

Use the RootFragment property of the interaction to list the class of all fragments.

iterator = systemcomposer.interaction.Iterator(diagram.RootFragment);
next = iterator.next;
while ~isempty(next)
    if isa(next, 'systemcomposer.interaction.AltFragment')
        altFrag = next;
    end
    next = iterator.next;
end

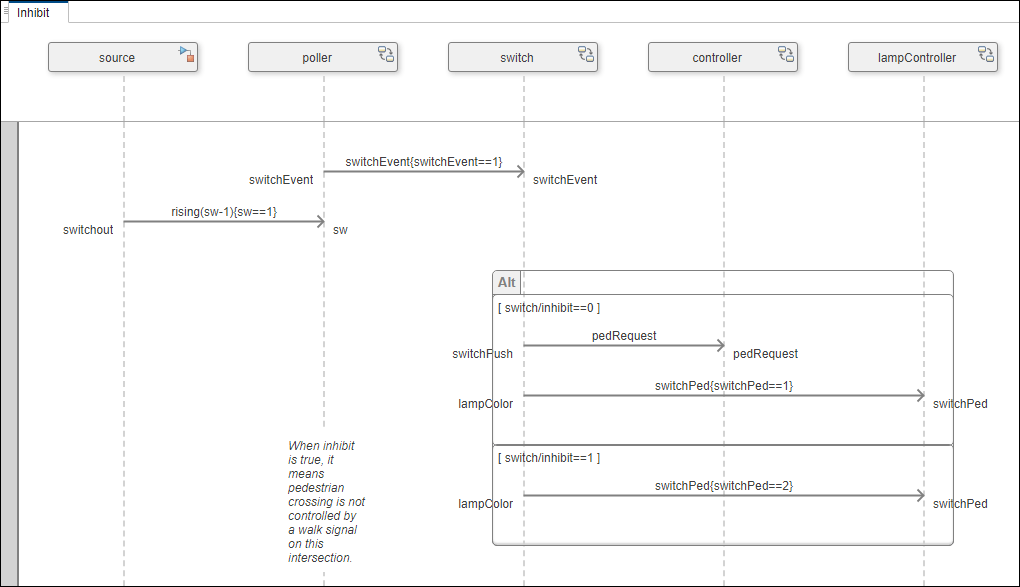

Place the message message immediately before the altFrag fragment.

if ~isempty(altFrag)
    move(message, Before=altFrag);
end
diagram.open;

Input Arguments

message — Message to be moved

message object

Message specified as a systemcomposer.interaction.Message object.

beforeElement — Specify existing element in interaction to place the message before

fragment object | formal gate object | message object | message event object

Interaction element object, specified as one of these objects:

• systemcomposer.interaction.Fragment

• systemcomposer.interaction.FormalGate

• systemcomposer.interaction.Message

• systemcomposer.interaction.MessageEvent

afterElement — Specify existing element in interaction to place the message before

fragment object | formal gate object | message object | message event object

Interaction element object, specified as one of these objects:

• systemcomposer.interaction.Fragment

• systemcomposer.interaction.FormalGate

• systemcomposer.interaction.Message

• systemcomposer.interaction.MessageEvent

More About

Definitions

Term	Definition	Application	More Information
sequence diagram	A sequence diagram represents the expected interaction between structural elements of an architecture as a sequence of message exchanges.	Use sequence diagrams to describe how the parts of a system interact.	Describe System Behavior Using Sequence Diagrams
lifeline	A lifeline is represented by a head and a timeline that proceeds down a vertical dotted line.	The head of a lifeline represents a component in an architecture model.	Add Lifelines and Messages
message	A message sends information from one lifeline to another. Messages are specified with a message label.	A message label has a trigger, an optional guard, and an optional constraint where a trigger represents the identifying event for this message, a guard represents an additional condition to determine whether the message occurs, and a constraint is an expression that is expected to be true when this message occurs.	Create Messages in Sequence Diagram
gate	A gate represents the root architecture of the corresponding architecture model.	Connect messages to gates to represent architecture ports.	Create Sequence Diagram Gates
annotation	An annotation describes the elements of a sequence diagram.	Use annotations to provide detailed explanations of elements or workflows captured by sequence diagrams.	Use Annotations to Describe Elements of Sequence Diagram
fragment	A fragment indicates how a group of messages execute or interact.	A fragment is used to model complex sequences, such as alternatives, in a sequence diagram.	Author Sequence Diagram Fragments
operand	An operand is a region in a fragment. Fragments have one or more operands depending on the kind of fragment. Operands can contain messages and additional fragments.	Each operand can include a constraint to specify whether the messages inside the operand execute. You can express the precondition of an operand as a MATLAB® Boolean expression using the input signal of a lifeline.	Add Fragments and Operands

Version History

Introduced in R2024b
