Get Started with 5G Toolbox

5G Toolbox™ provides standard-compliant functions and reference examples for the modeling, simulation, and verification of 5G New Radio (NR) communications systems. The toolbox supports link-level simulation, golden reference verification, conformance testing, and test waveform generation.

With the toolbox you can configure, simulate, measure, and analyze end-to-end 5G NR communications links. You can modify or customize the toolbox functions and use them as reference models for implementing 5G systems and devices.

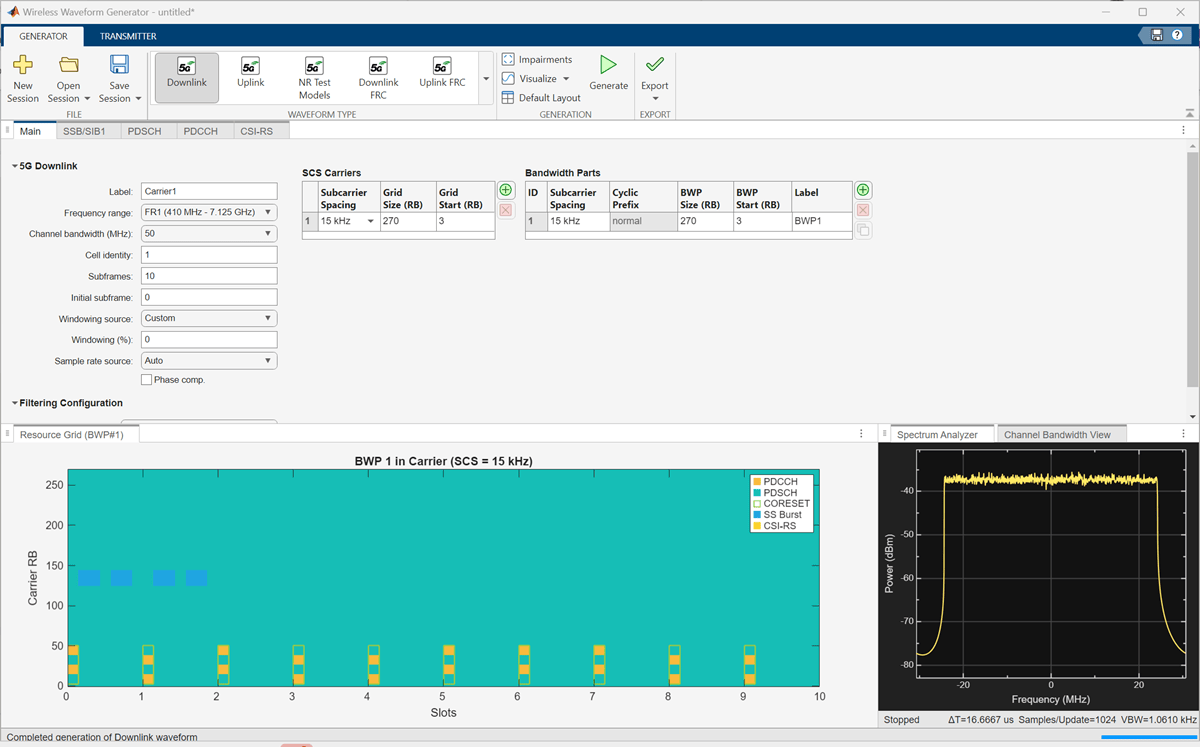

The toolbox provides functions and reference examples to help you characterize uplink and downlink baseband specifications and simulate the effects of RF designs and interference sources on system performance. You can generate waveforms and customize test benches, either programmatically or interactively using the Wireless Waveform Generator app. With these waveforms, you can verify that your designs, prototypes, and implementations comply with the 3GPP 5G NR specifications.

Tutorials

• Synchronization Signal Blocks and Bursts


  Generate multiple 5G NR synchronization signal blocks (SSBs) to form a synchronization signal burst (SS burst).

• Modeling Downlink Control Information


  Model DCI message encoding, PDCCH processing, and information recovery in 5G NR communications system.

• 5G New Radio Polar Coding


  Model the new CA-Polar coding technique in 5G NR communications system.

• LDPC Processing for DL-SCH and UL-SCH


  Process 5G NR DL-SCH and UL-SCH transport blocks using LDPC coding.

About 5G

• What Is 5G New Radio?


  Learn about the benefits of 5G NR communications system and the scope of 5G Toolbox.

• 5G Toolbox and the 5G NR Protocol Layers


  5G Toolbox in the context of the 5G NR user plane protocol stack.

Featured Examples

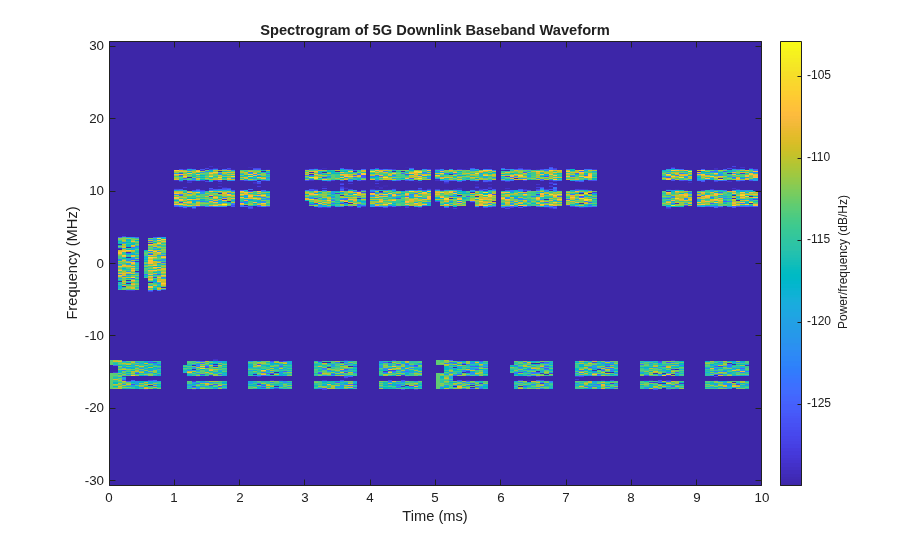

5G NR Downlink Carrier Waveform Generation

Create DL waveform containing SS burst, PDSCH and DM-RS/PT-RS, PDCCH and DM-RS, CSI-RS, with mixed SCS and multiple BWPs.

Open Script

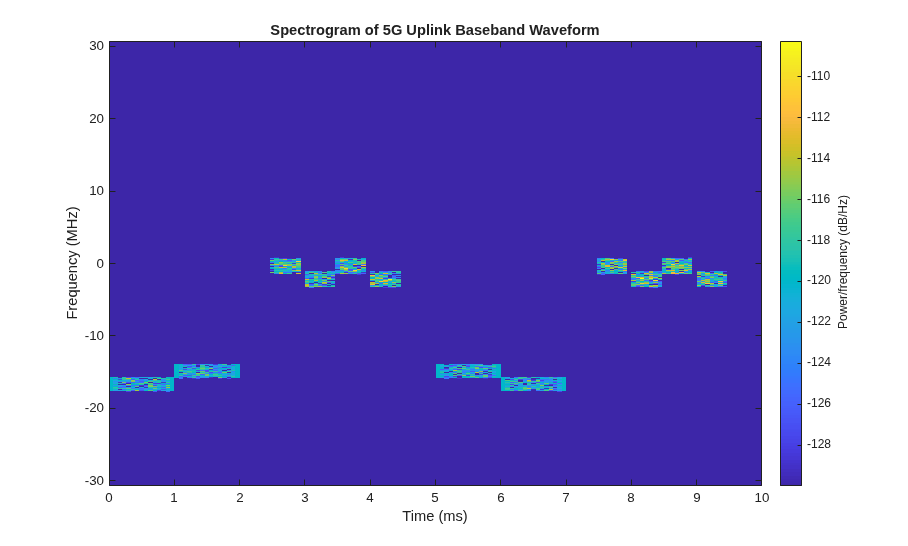

5G NR Uplink Carrier Waveform Generation

Create UL waveform containing PUSCH and DM-RS/PT-RS, PUCCH and DM-RS, SRS, with mixed SCS and multiple BWPs.

Open Script

5G NR-TM and FRC Waveform Generation

Use MATLAB^® code to generate standard-compliant 5G NR test models, downlink FRCs, and uplink FRCs for FR1 and FR2.

Open Live Script

NR PUSCH Resource Allocation and DM-RS and PT-RS Reference Signals

Learn about the effects of PUSCH resource allocation on the time-frequency structure of DM-RS and PT-RS.

Open Live Script

NR PDSCH Resource Allocation and DM-RS and PT-RS Reference Signals

Learn about the effects of PDSCH resource allocation on the time-frequency structure of DM-RS and PT-RS.

Open Live Script

Online Learning

5G Explained
Learn about key concepts of the 5G NR physical layer standard.
