view

Class: Autoencoder

View autoencoder

Description

example

view(autoenc) returns a diagram of the autoencoder, autoenc.

Input Arguments

expand all

Trained autoencoder, returned as an object of the Autoencoder class.

Examples

expand all

Load the training data.

X = iris_dataset;

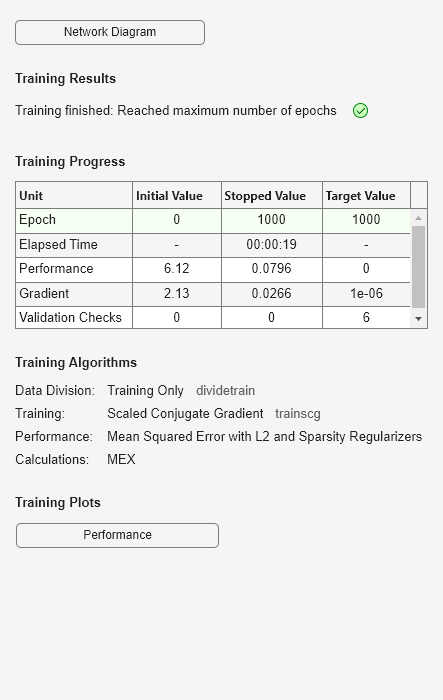

Train an autoencoder with a hidden layer of size 5 and a linear transfer function for the decoder. Set the L2 weight regularizer to 0.001, sparsity regularizer to 4 and sparsity proportion to 0.05.

hiddenSize = 5;
autoenc = trainAutoencoder(X, hiddenSize, ...
    'L2WeightRegularization',0.001, ...
    'SparsityRegularization',4, ...
    'SparsityProportion',0.05, ...
    'DecoderTransferFunction','purelin');

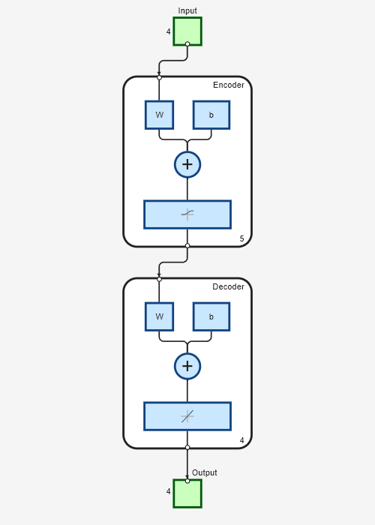

View the autoencoder.

view(autoenc)

Introduced in R2015b
